Data List Reference Table

DATA LIST REFERENCE TABLE

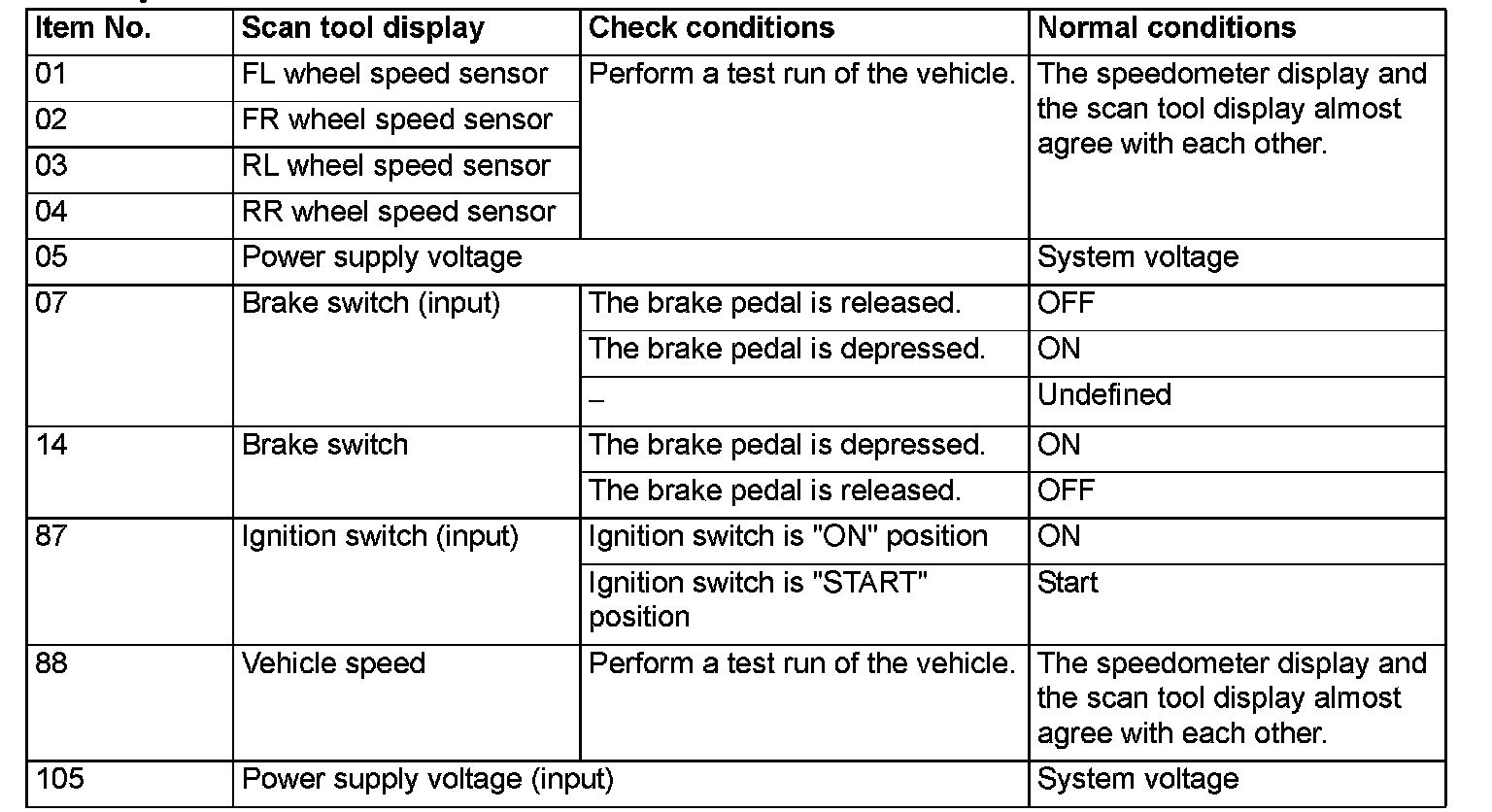

The following items can be read by the scan tool from the ABS-ECU input data.

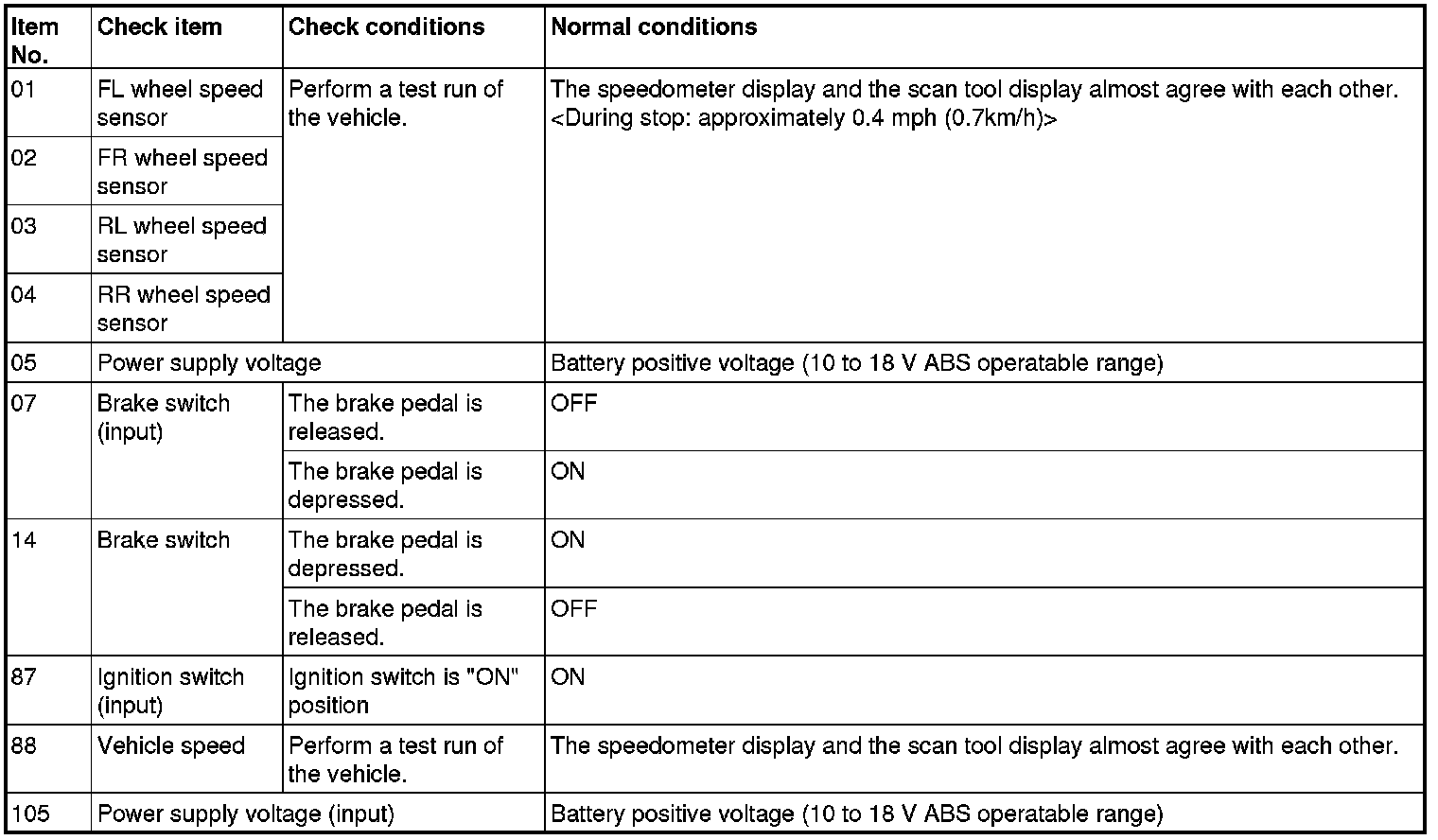

The following items of ECU input data can be read using scan tool.

1. The system is normal.





2. System shutdown by ECU
While ABS-ECU is disabled by the diagnostic function, the scan tool displayed data is different from the actual measurement.
