Body - Revised Side Air Dam Adhesive Specifications

No: TSB-09-51-002

DATE: September, 2009

MODEL: See below

Subject:
SIDE AIR DAM ADHESIVE TAPE SPECIFICATIONS - SERVICE MANUAL REVISION

PURPOSE

Size specifications for the side air dam adhesive tape are incorrect in the affected service manuals. This bulletin contains corrected adhesive tape size specifications.

AFFECTED VEHICLES
2008-2010 Lancer
2009-2010 Lancer Sportback

AFFECTED SERVICE MANUALS

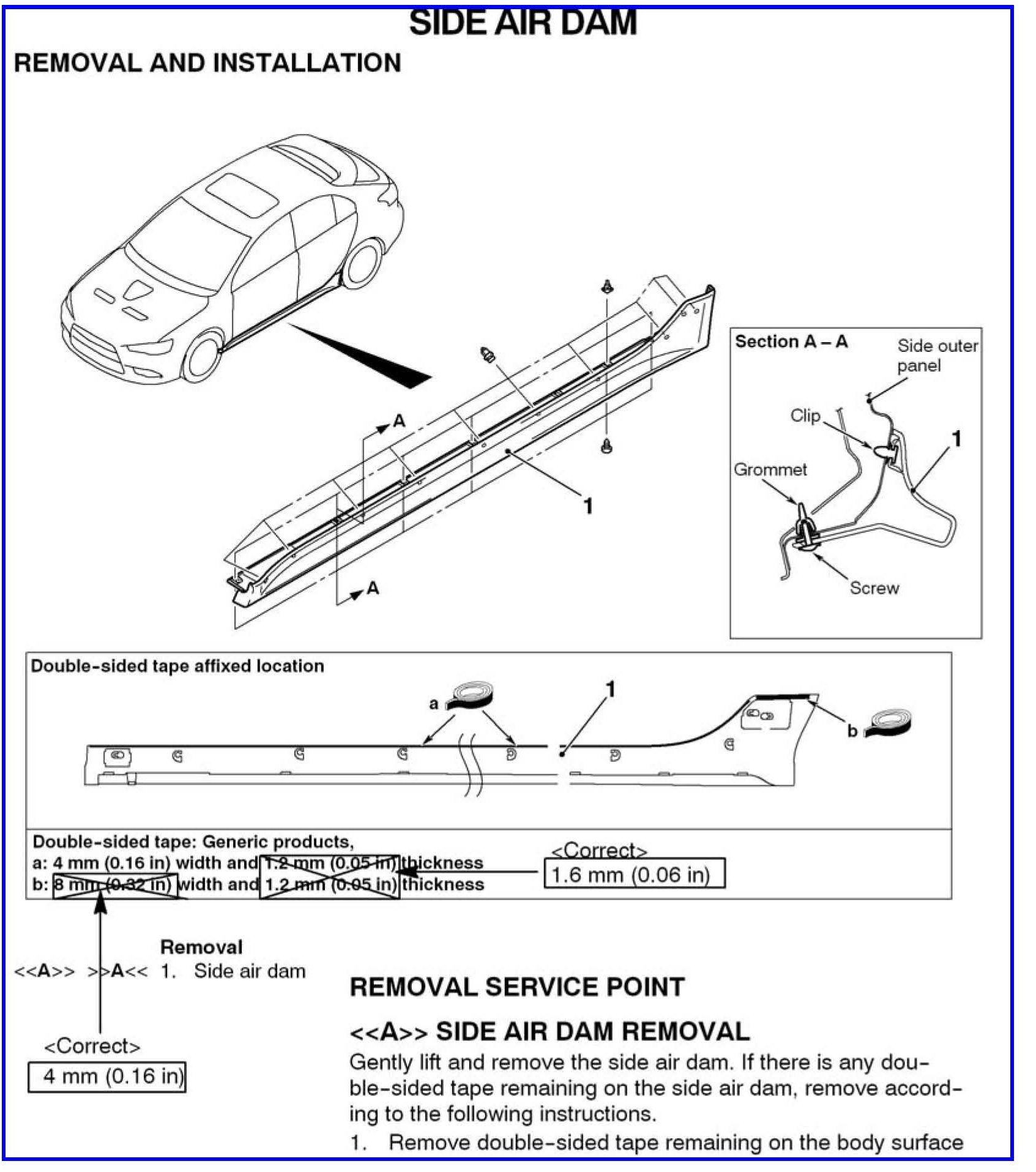

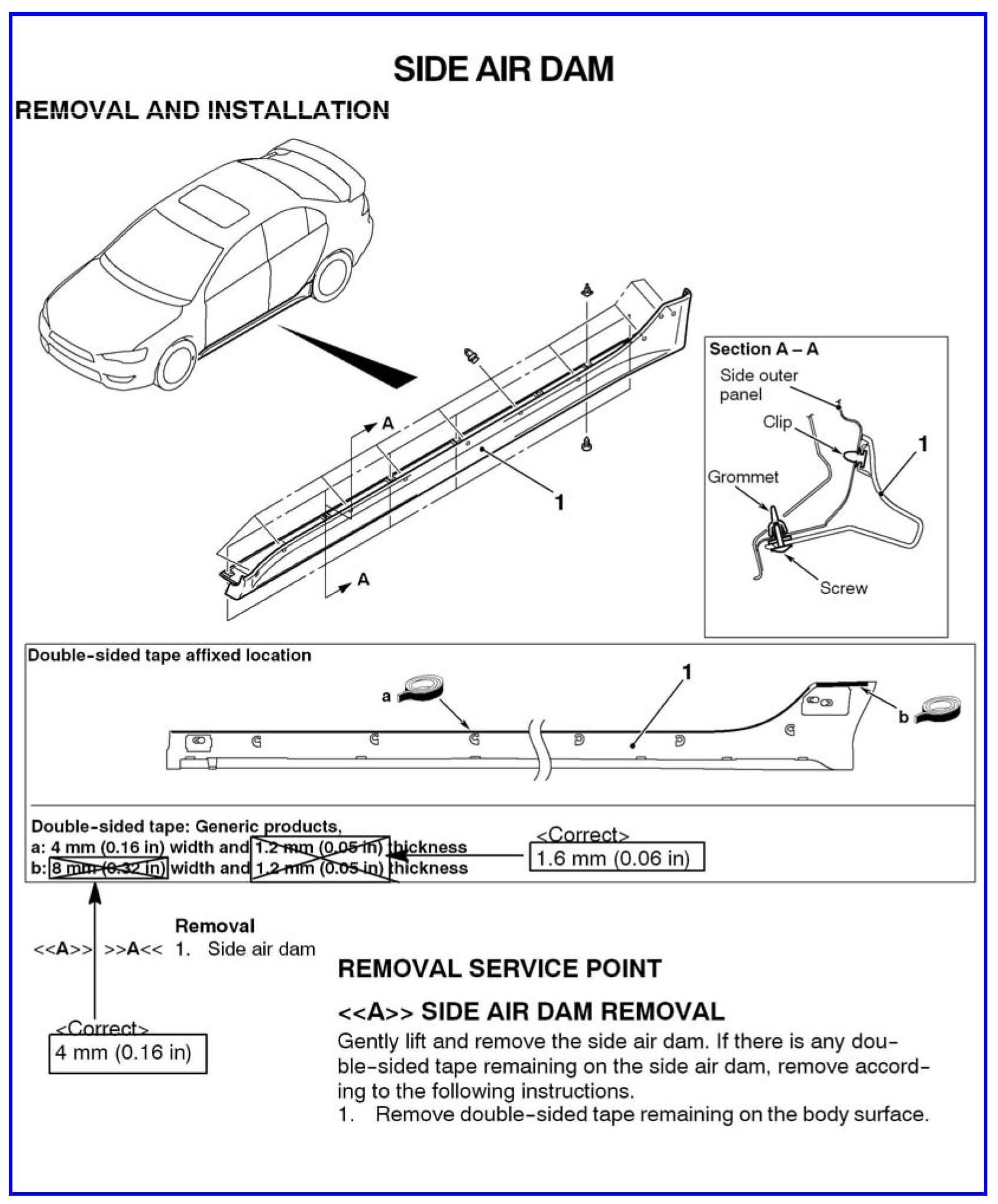

2008 Lancer, pages 51-2 and 51-13
2009 Lancer, pages 51-2 and 51-15
2010 Lancer, pages 51-2 and 51-14
2009 Lancer Sportback, pages 51-3 and 51-18
2010 Lancer Sportback, pages 51-3 and 51-18

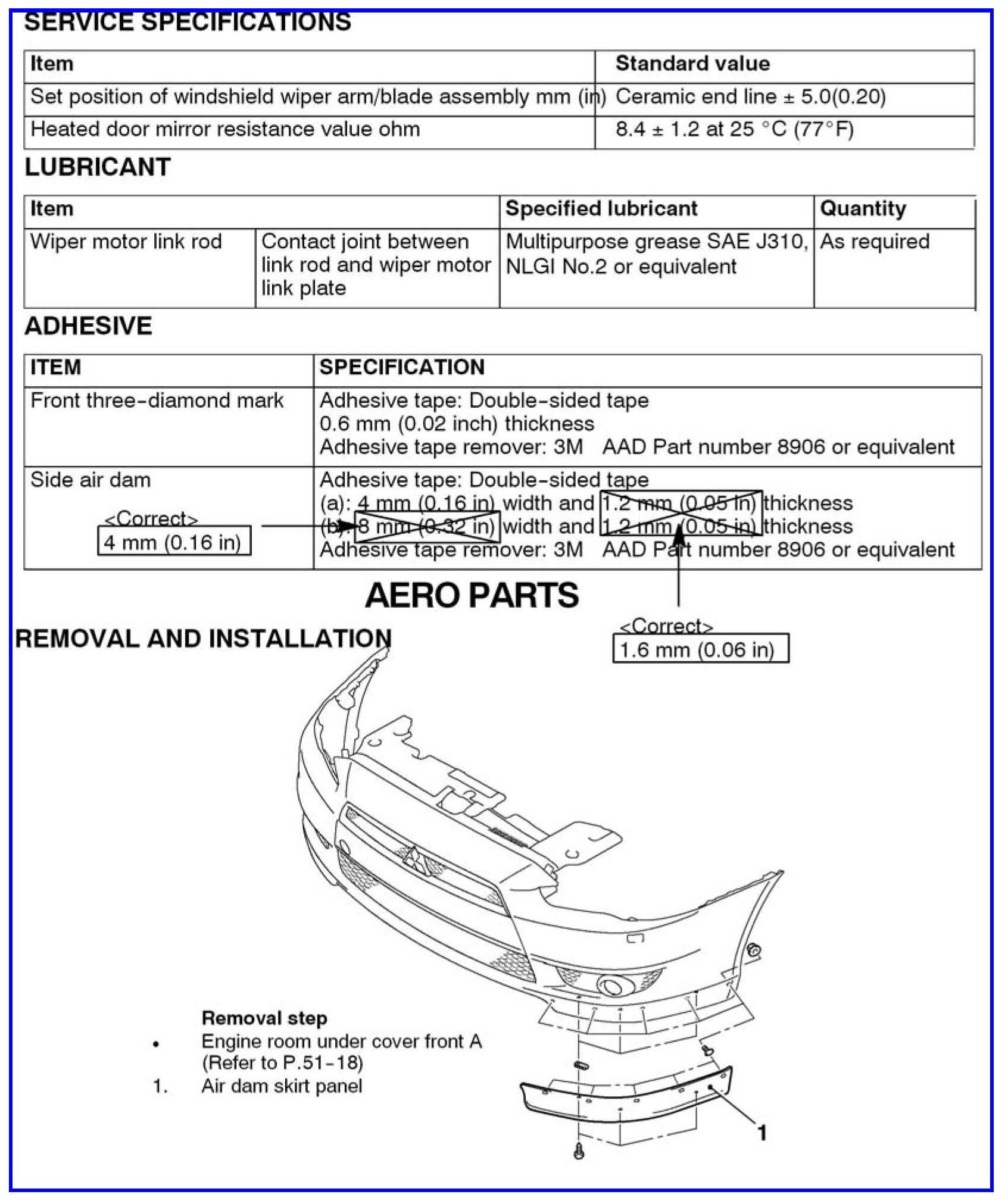

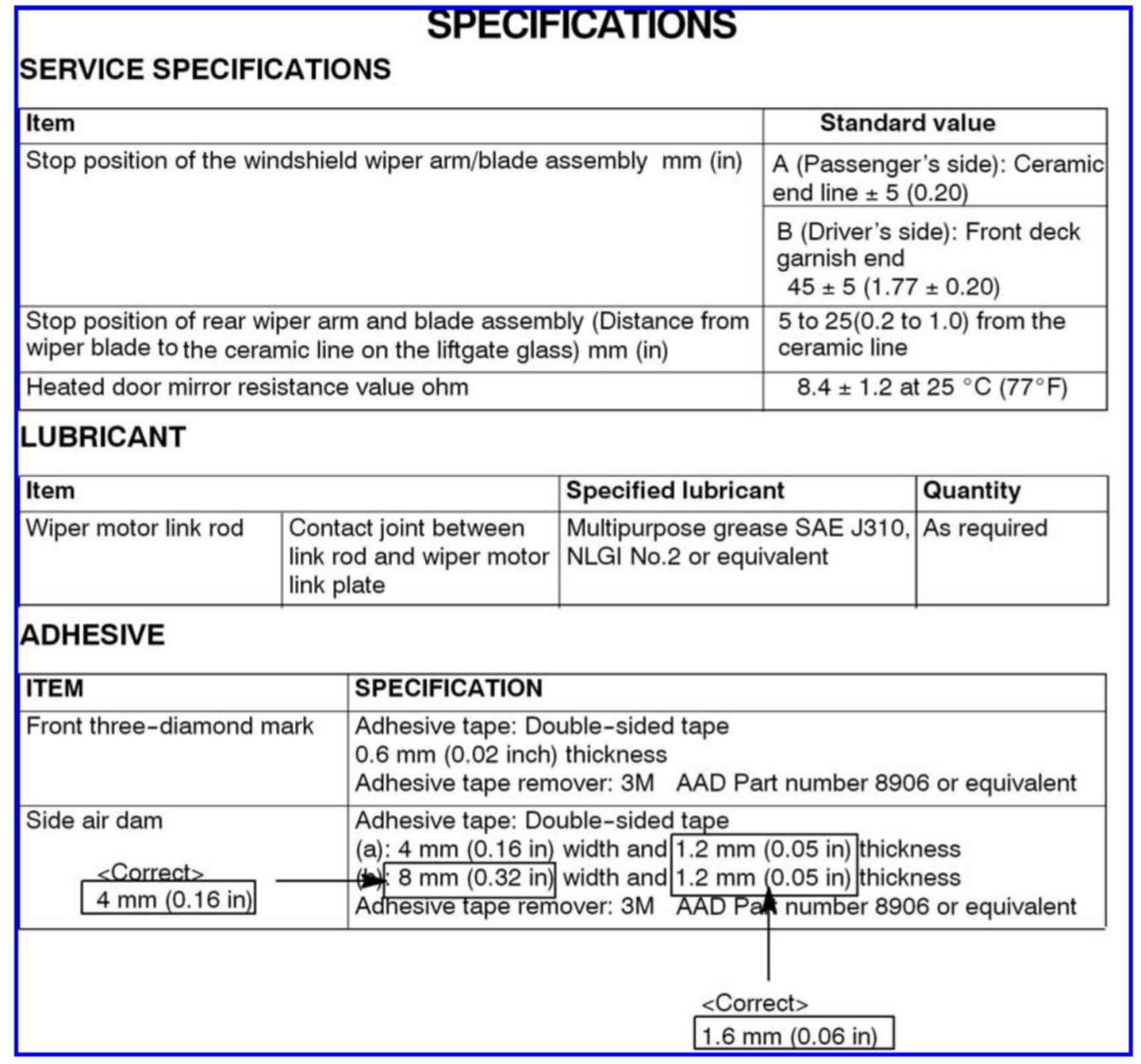

2008, 2009 and 2010 Lancer, page 51-2





2008 Lancer page 51-13; 2009 Lancer page 51-15; 2010 Lancer page 51-14





2009 and 2010 Lancer Sportback, page 51-3





2009 and 2010 Lancer Sportback, page 51-18
