Rear Seat

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

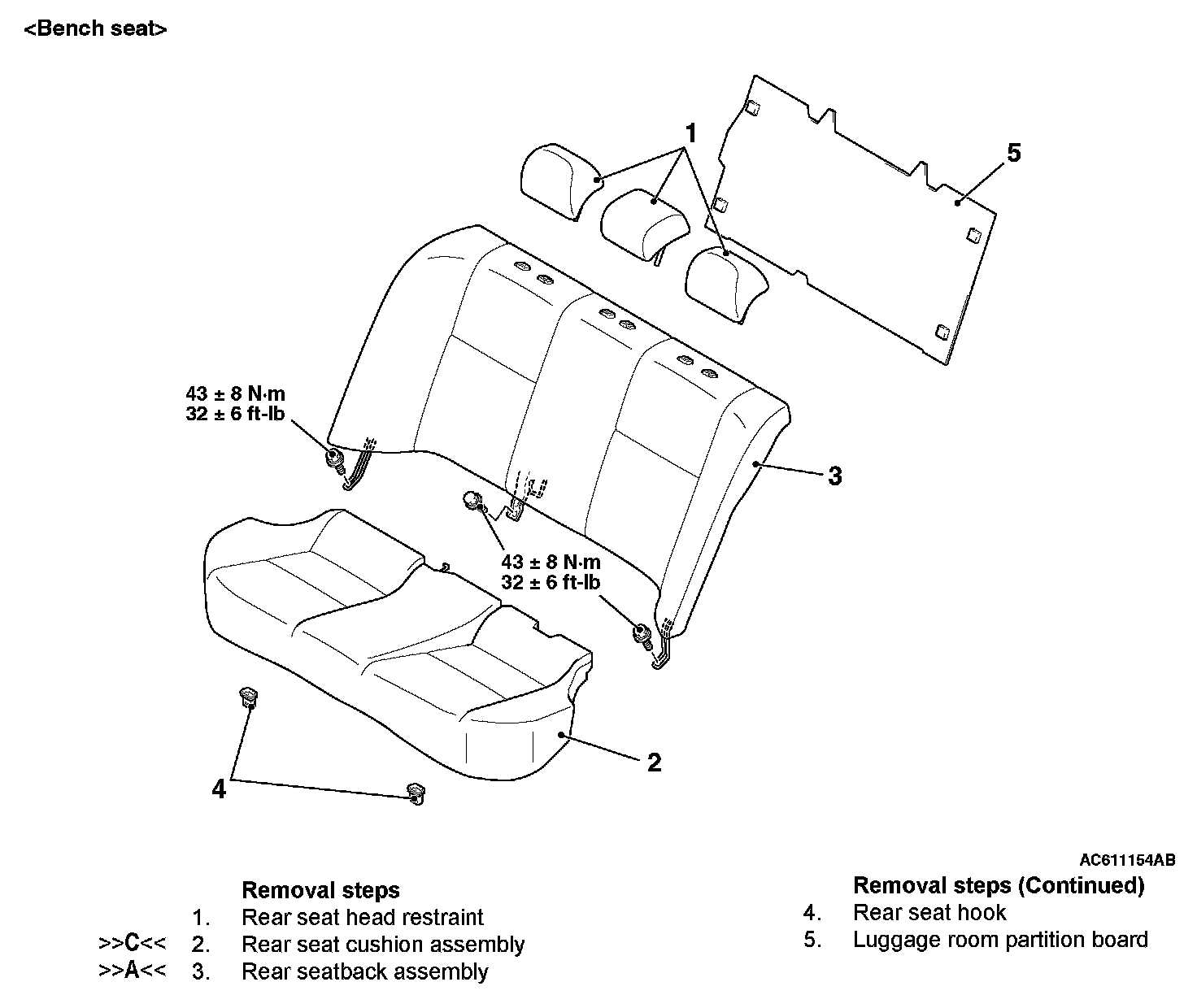

Removal Steps 1 - 5 (Bench Seat):

Removal Steps 1 - 11 (Split Seat):

INSTALLATION SERVICE POINTS

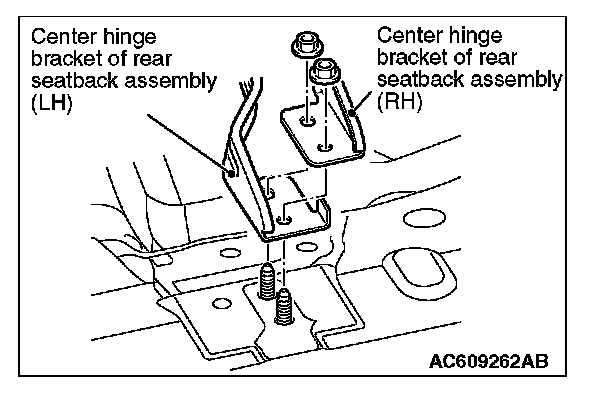

]]A[[ INSTALLATION OF REAR SEATBACK ASSEMBLY (LH)/REAR SEATBACK ASSEMBLY (RH)






Place the center hinge bracket of the rear seatback assembly (LH) on top of the center hinge bracket of the rear seatback assembly (RH) for installation.

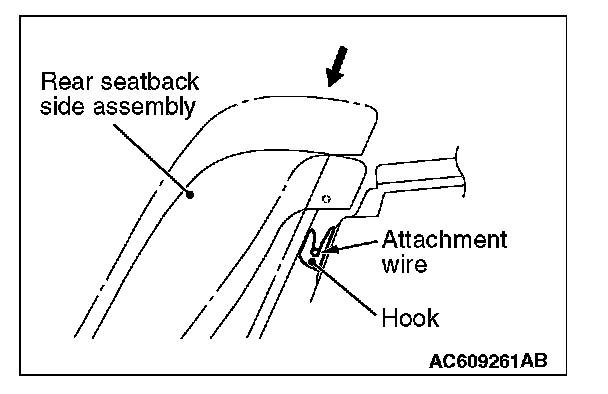

]]B[[ INSTALLATION OF REAR SEATBACK SIDE ASSEMBLY (LH)/REAR SEATBACK SIDE ASSEMBLY (RH)






Press the rear seatback side assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback side assembly.

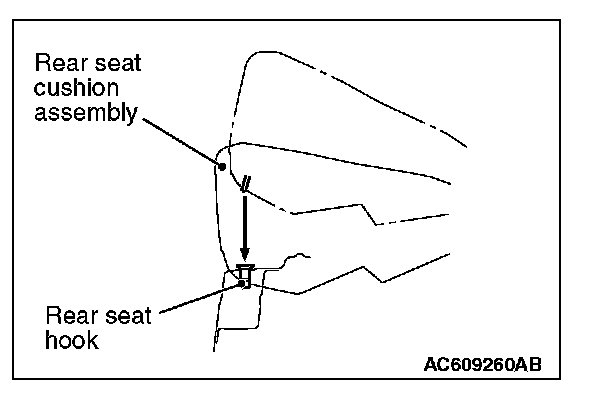

]]C[[ INSTALLATION OF REAR SEAT CUSHION ASSEMBLY






Fit the rear seat cushion into the rear seat hook securely.
