Front Seat

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

WARNING: Before removing the front seat assembly, refer to SRS, Service Precautions and Air Bag Module and Clock Spring.

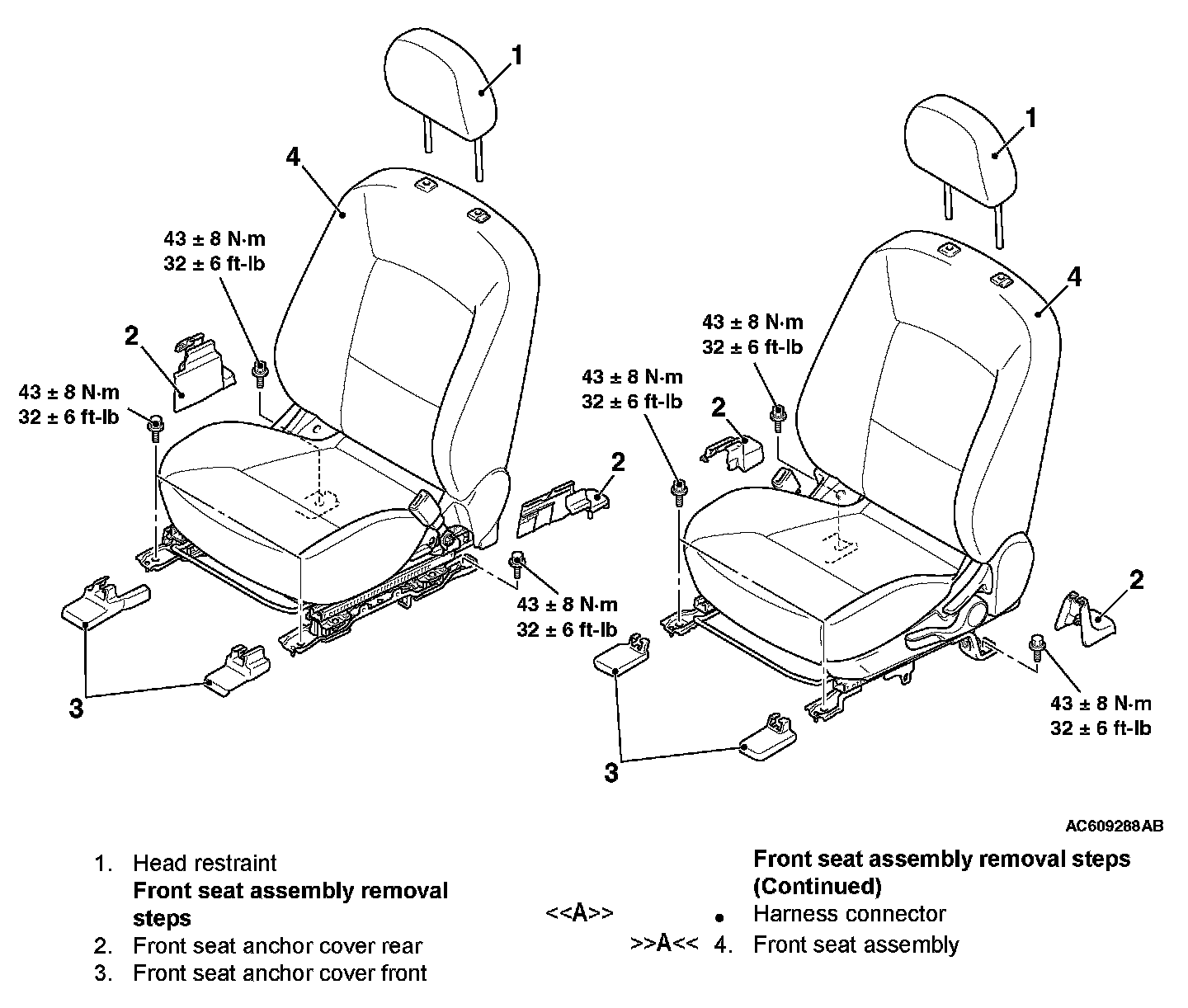

Removal Steps 1 - 4:

REMOVAL SERVICE POINT

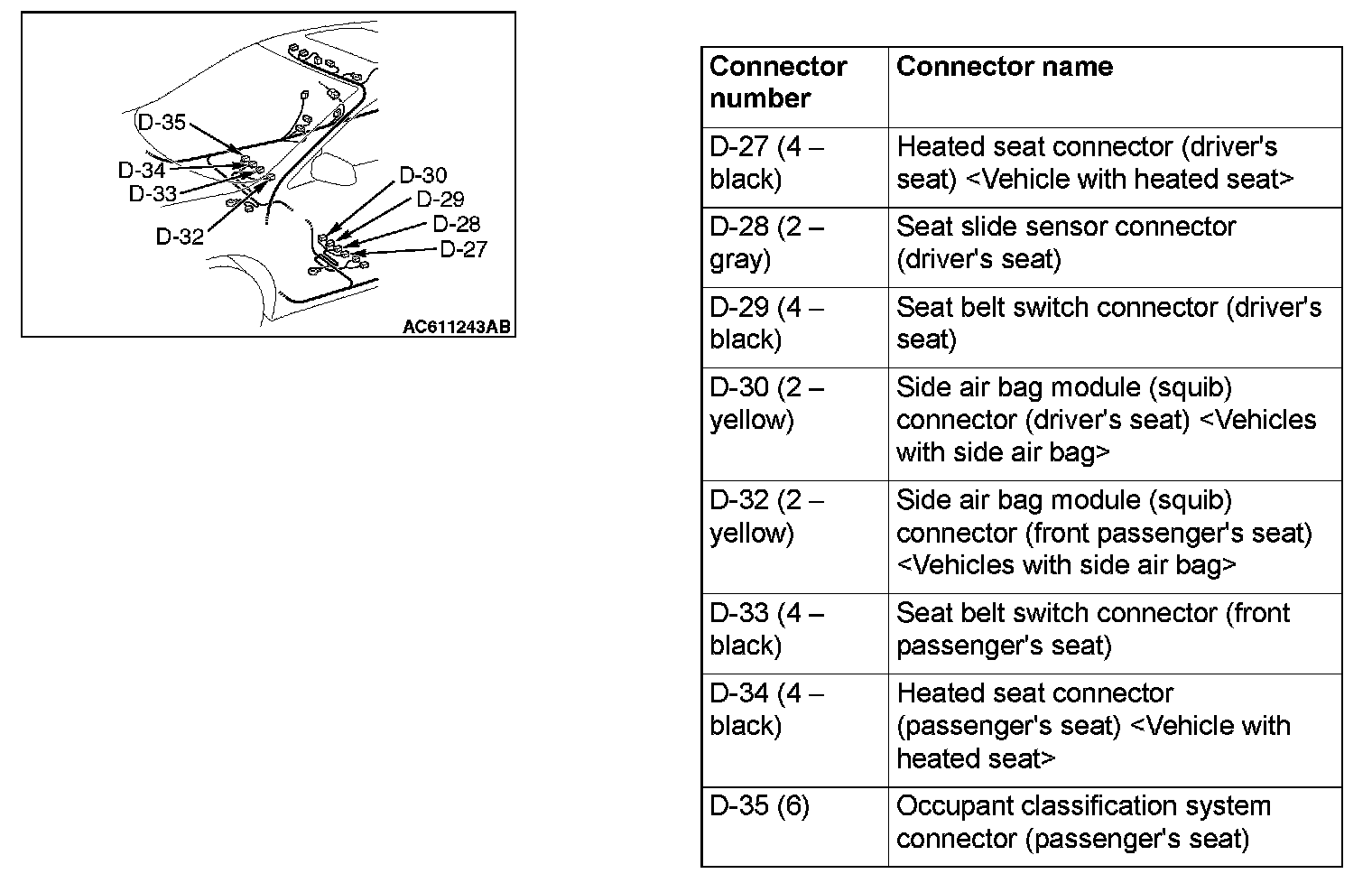

]]A[[ WIRING HARNESS CONNECTOR DISCONNECTION






Disconnect the following wiring harness connectors:

INSTALLATION SERVICE POINT

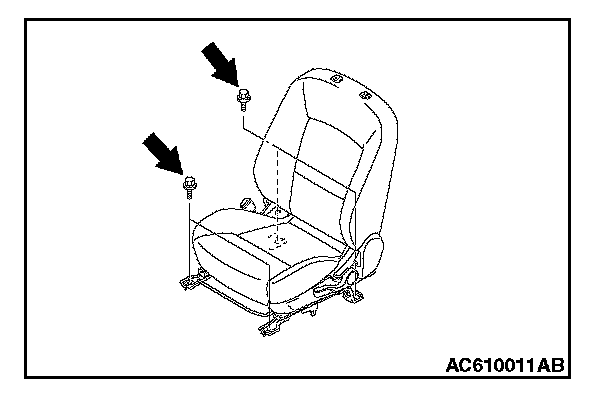

]]A[[ FRONT SEAT ASSEMBLY INSTALLATION






1. Temporarily tighten the bolts in all mounting locations shown in the illustration with no load applied to the front seat cushion and check the operation of the seat slide.
2. Tighten the bolts in all mounting locations to the specified torque.
