Rear Seat

DISASSEMBLY AND ASSEMBLY

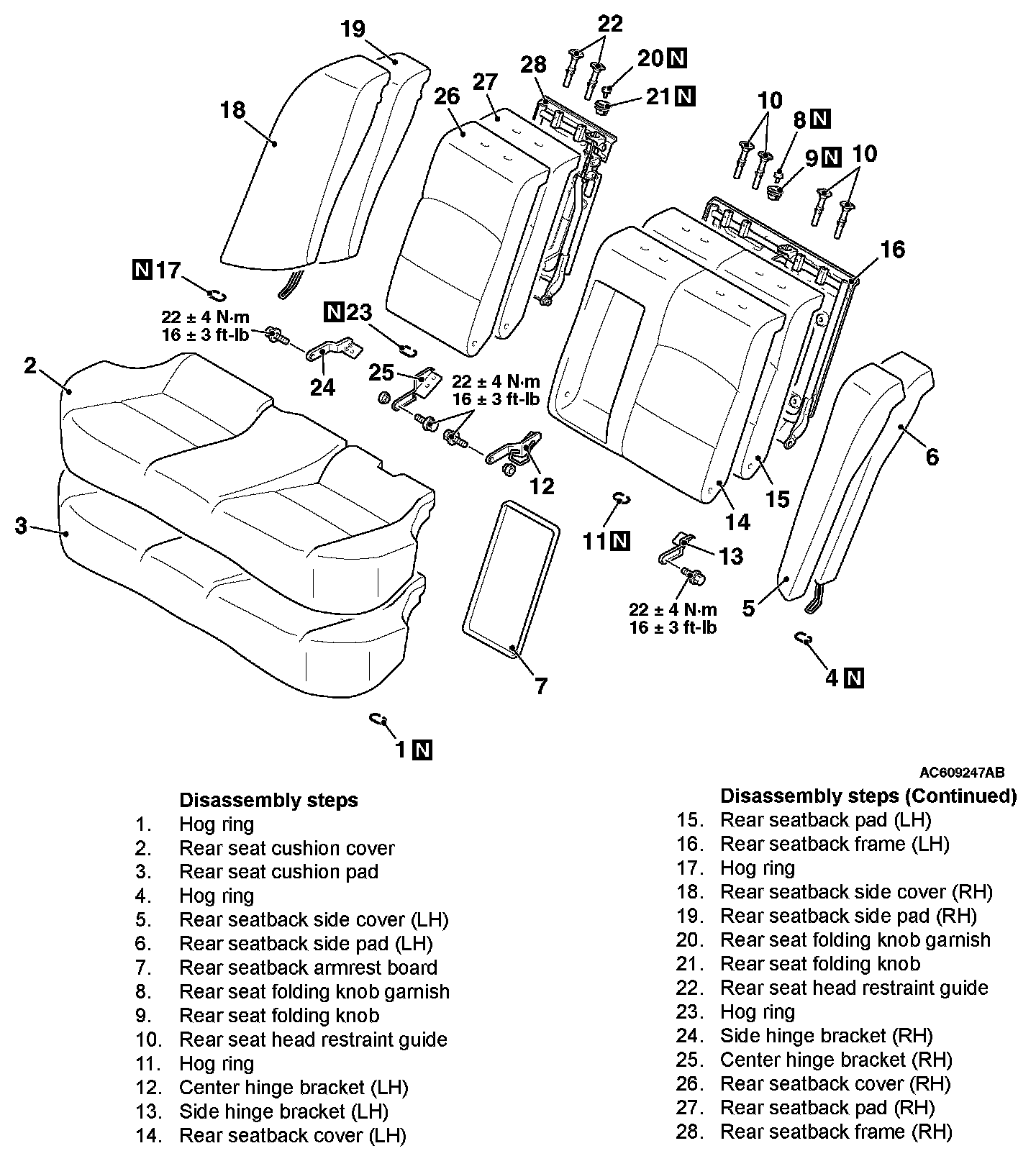

Disassembly Steps 1-7 (Bench Seat):




Disassembly Steps 1 - 28 (Split Seat):
