Pinout Values and Diagnostic Parameters
CHECK AT ECU TERMINAL

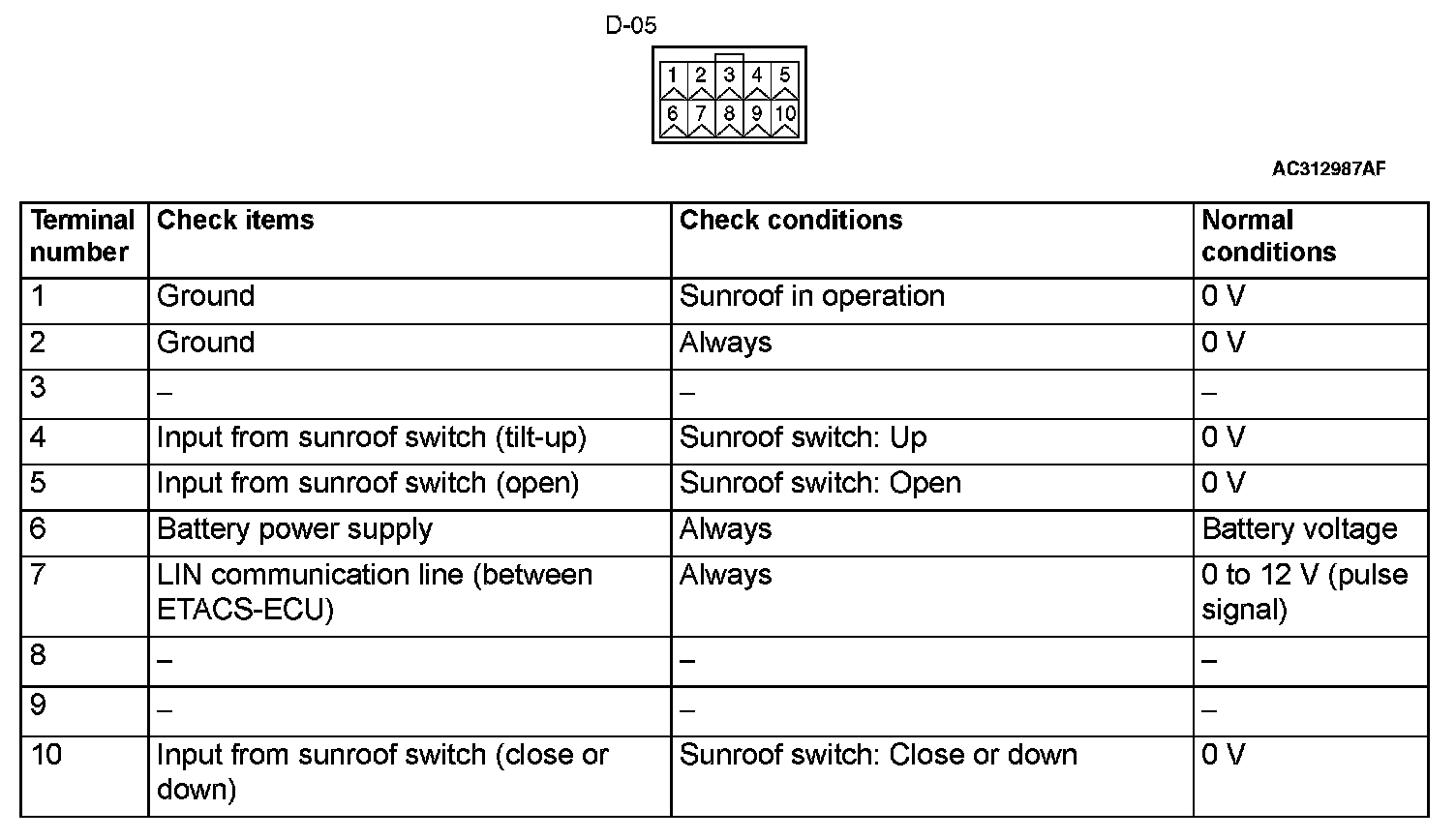

SUNROOF MOTOR ASSEMBLY TERMINAL CHECK
Sunroof Motor Assembly Terminal Check:
