Removal and Replacement

SUNROOF ASSEMBLY

REMOVAL AND INSTALLATION

Post-installation Operation:

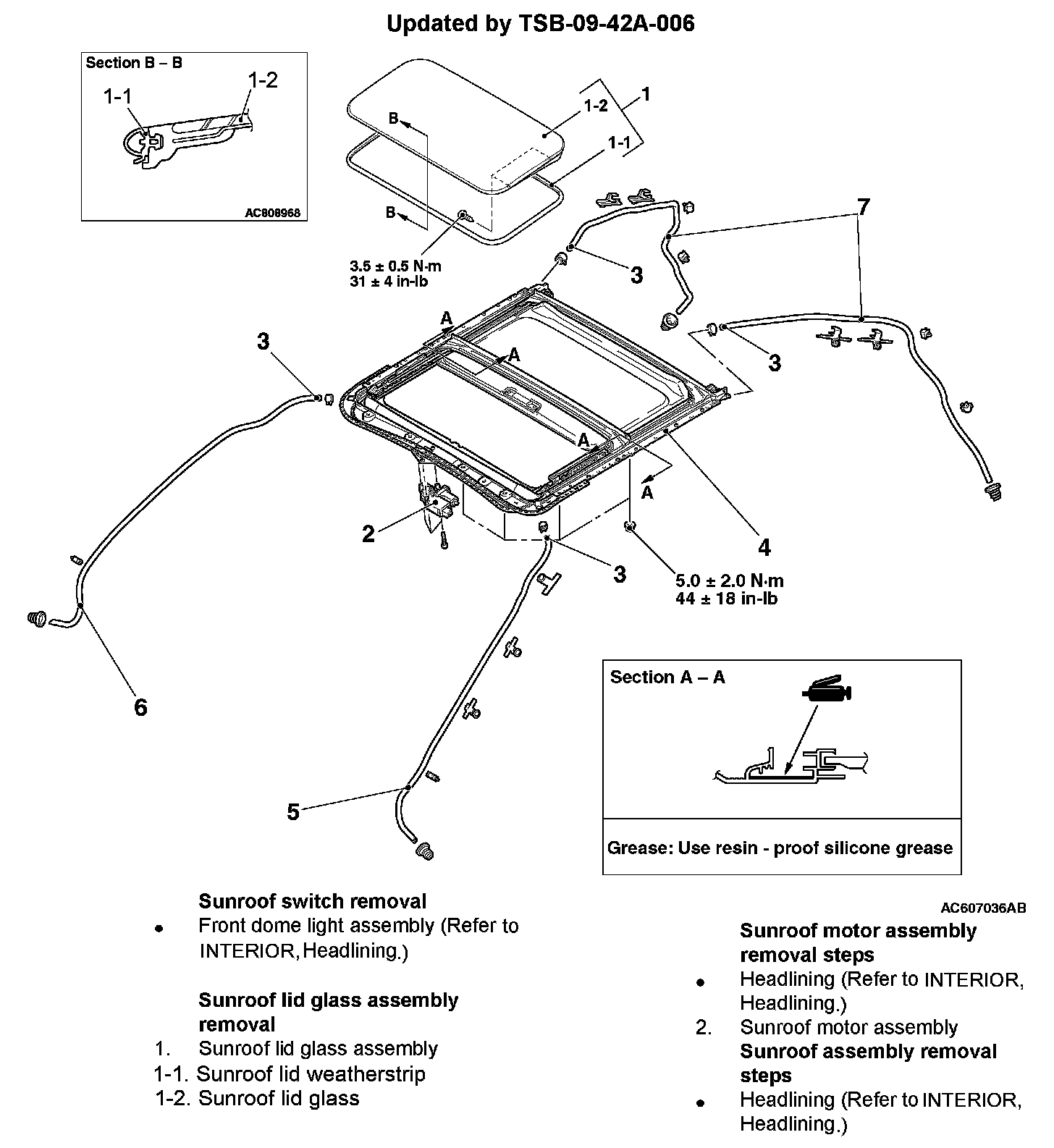

Removal Steps 1 - 2:

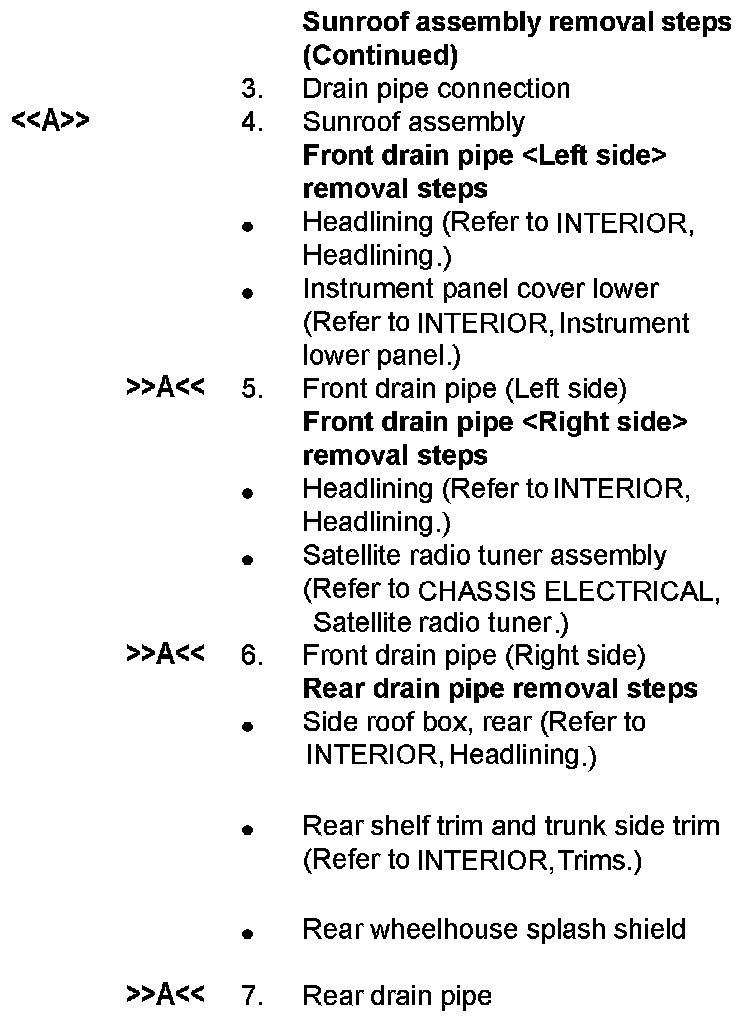

Removal Steps 3 - 7:

[[A]] SUNROOF ASSEMBLY REMOVAL

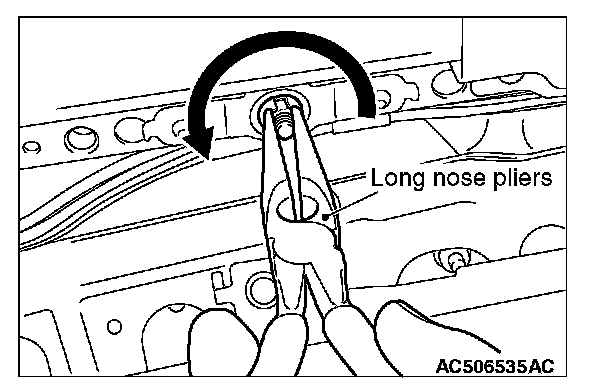

Use a pair of long nose pliers or the like to remove the sunroof assembly while turning it in the direction shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION

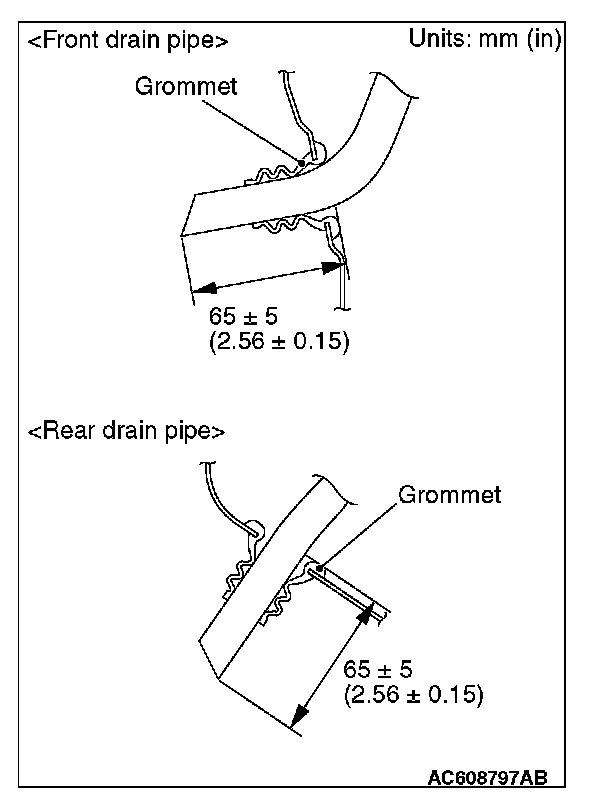

Install the grommet, and adjust the drain pipe projection as shown.
