Rear Door Lock Actuator Check

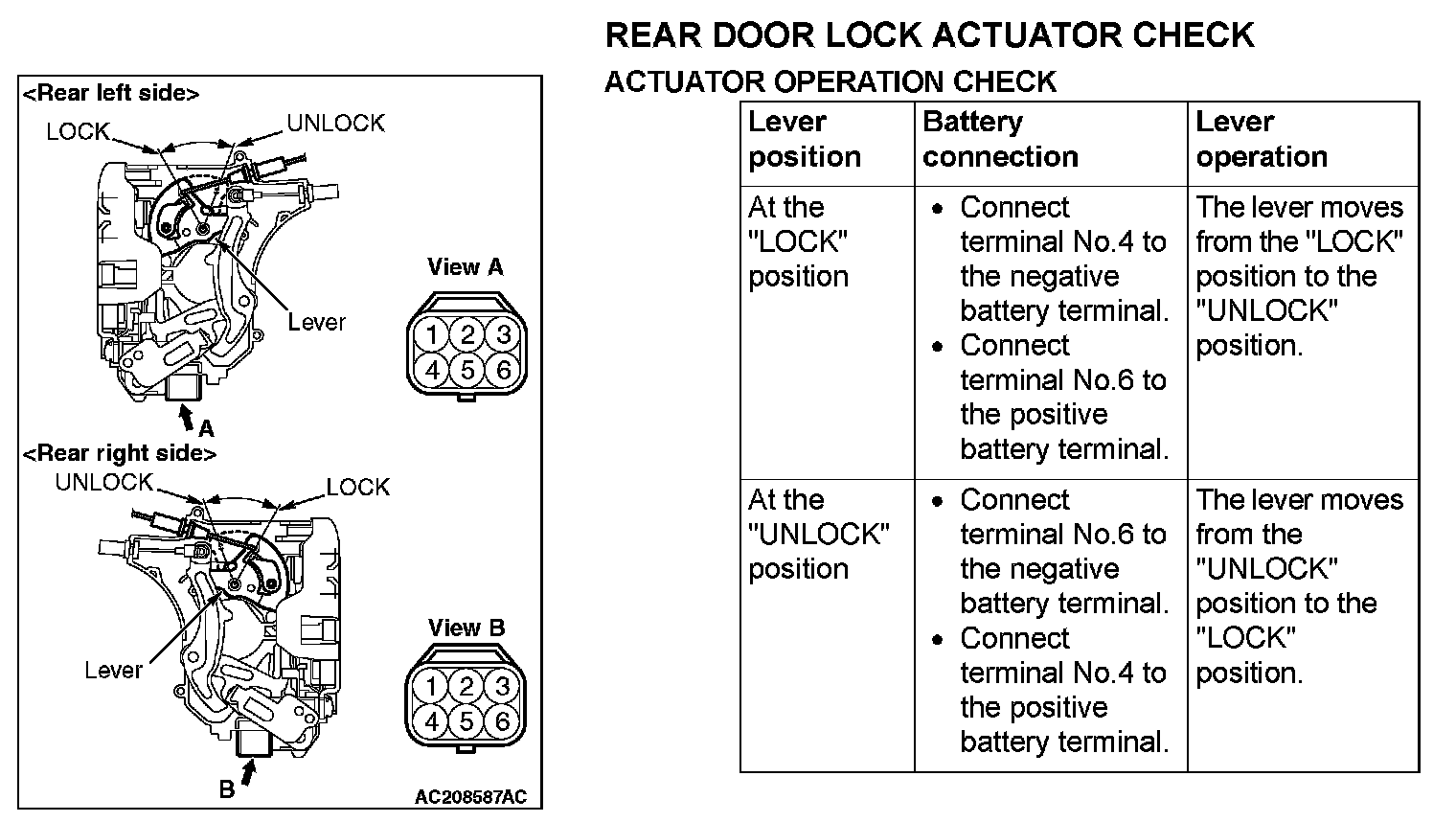

REAR DOOR LOCK ACTUATOR CHECKACTUATOR OPERATION CHECK
Rear Door Lock Actuator Check:

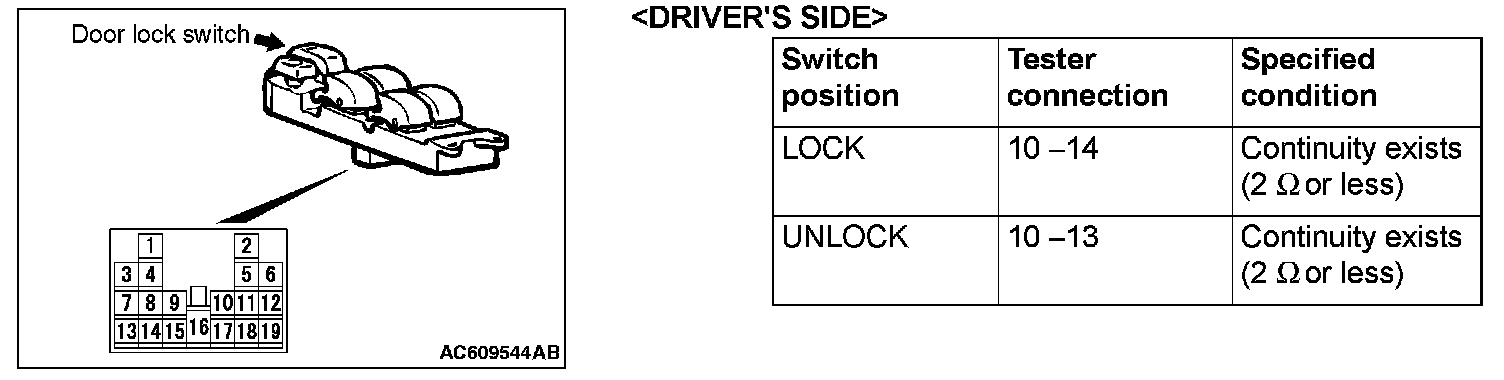

CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK
Remove the power window switch.
(DRIVER'S SIDE)
(PASSENGER'S SIDE)
ACTUATOR OPERATION CHECK
CENTRAL DOOR LOCK SWITCH CONTINUITY CHECK
Remove the power window switch.
(DRIVER'S SIDE)
(PASSENGER'S SIDE)
