Interior Moulding / Trim: Service and Repair

TRIMS

REMOVAL AND INSTALLATION

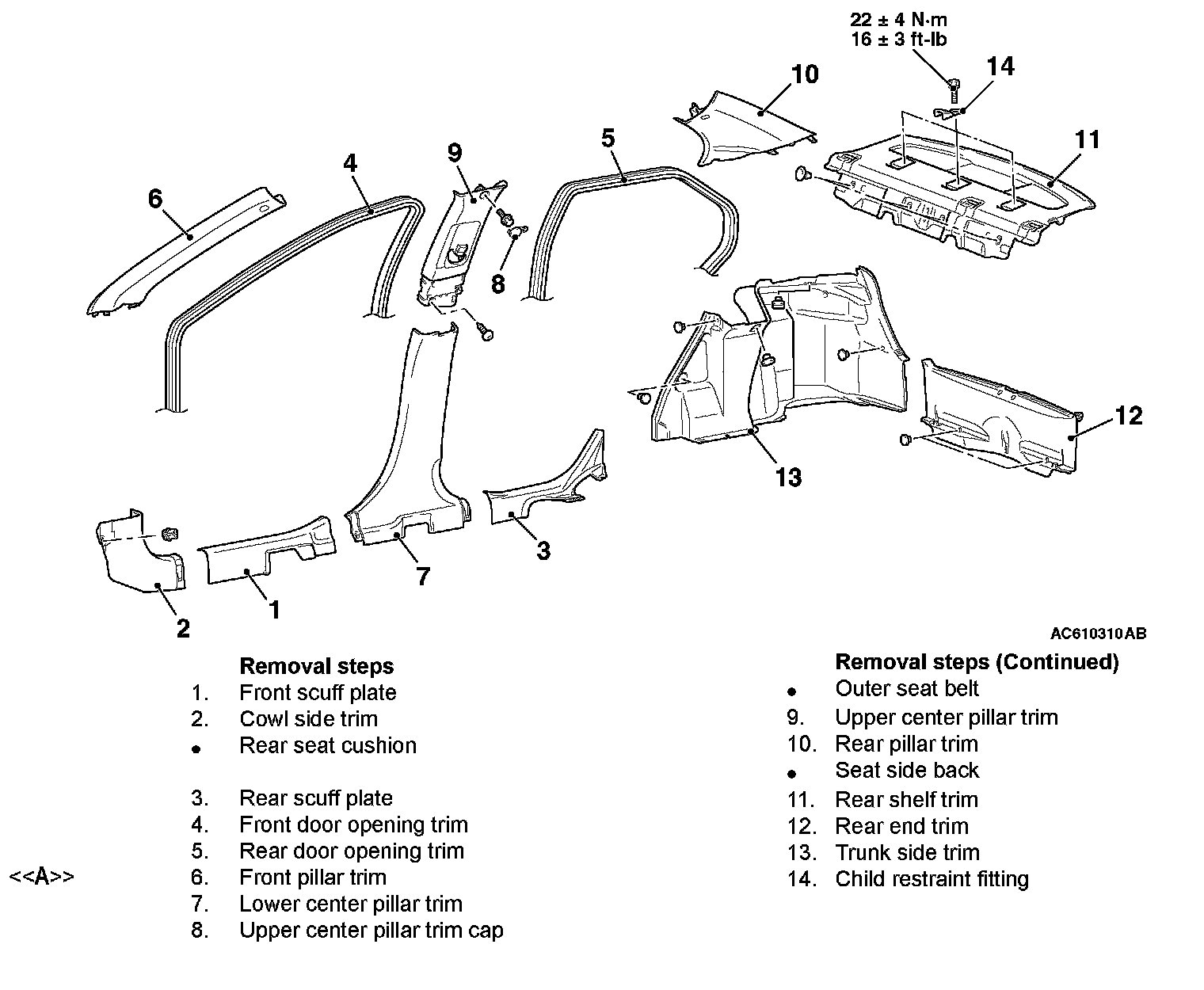

Removal Steps 1-14:

Required Special Tool:
- MB990784: Ornament Remover

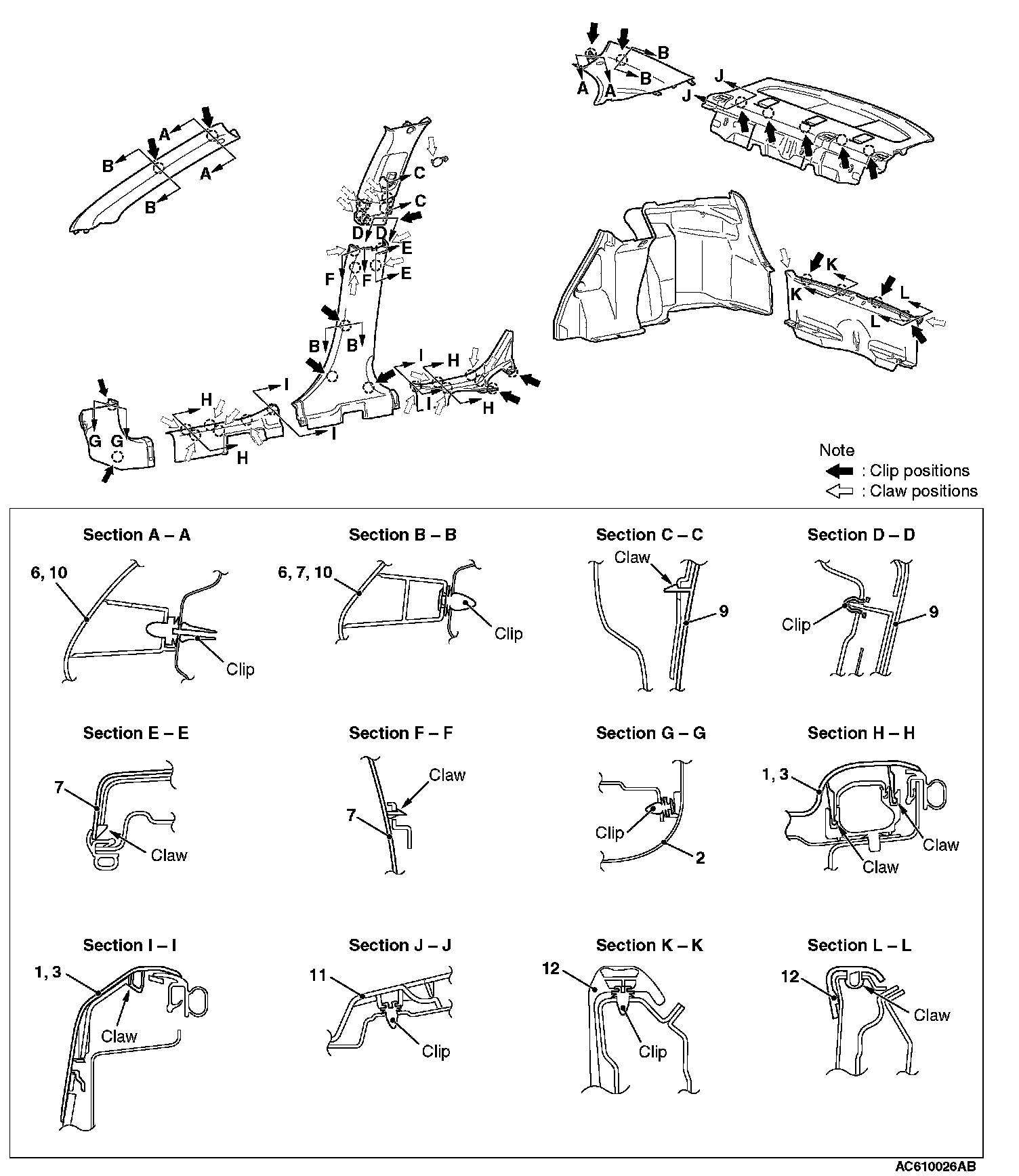

CLIP POSITION






NOTE: Each number in the illustration indicates a part number.


REMOVAL SERVICE POINT

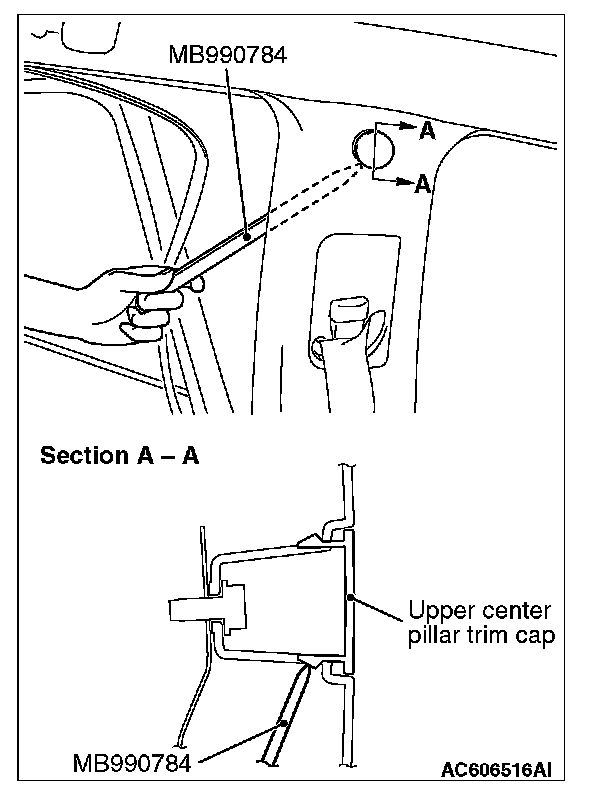

]]A[[ UPPER CENTER PILLAR TRIM CAP REMOVAL






Remove the opening trim. Remove the upper center pillar trim cap by inserting the special tool MB990784 between the upper center pillar trim and body as shown in the illustration.
