Instrument Panel Assembly

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in SRS, Air Bag Module and Clock Spring.

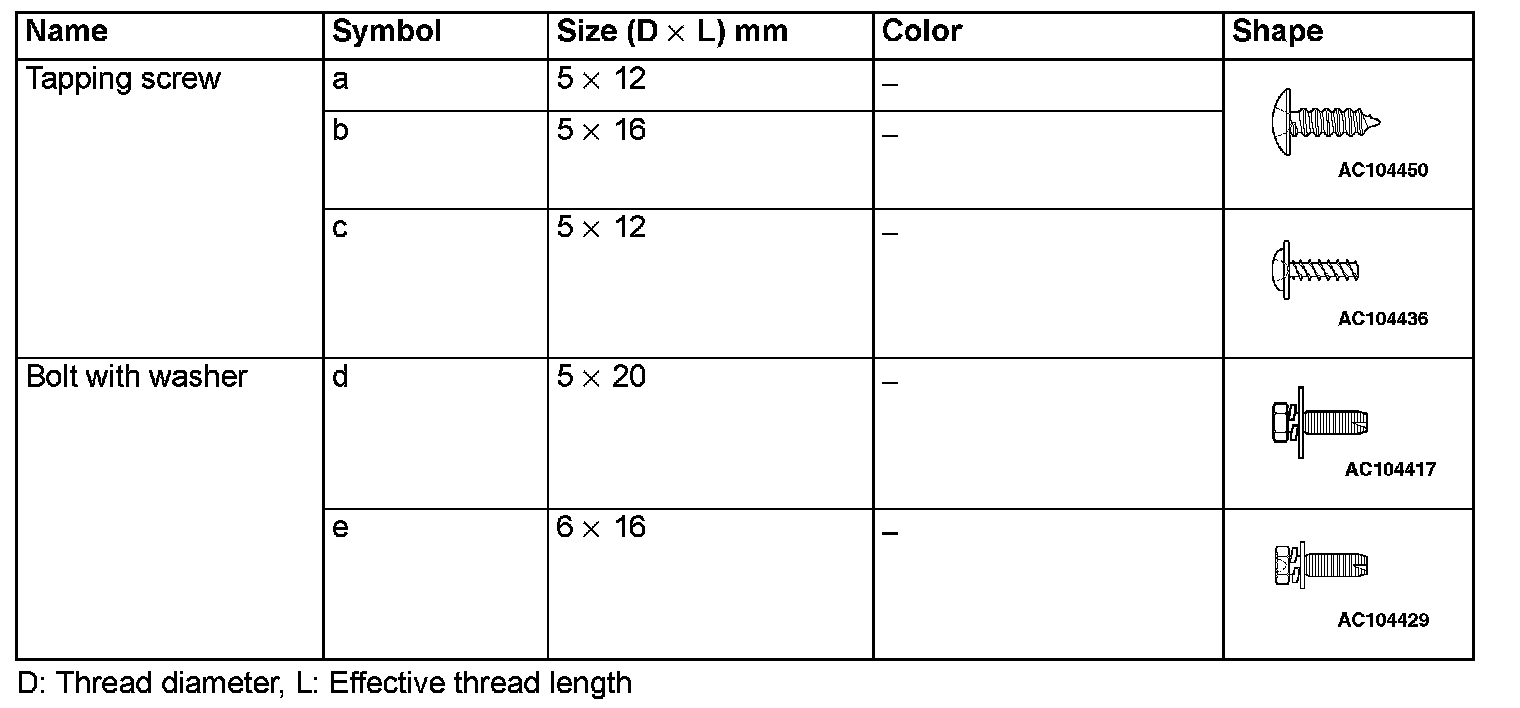

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."







CAUTION:
- Refer to SRS - SRS Service Precautions and Air bag Module and Clock Spring before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

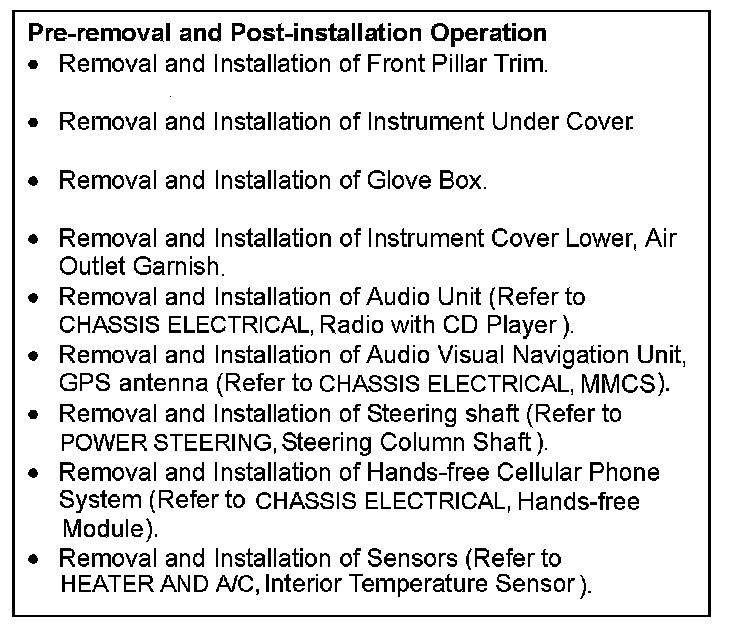

Pre-removal And Post-installation Operation:

Removal Steps 1 - 12:
