Console: Service and Repair

FLOOR CONSOLE ASSEMBLY

REMOVAL AND INSTALLATION

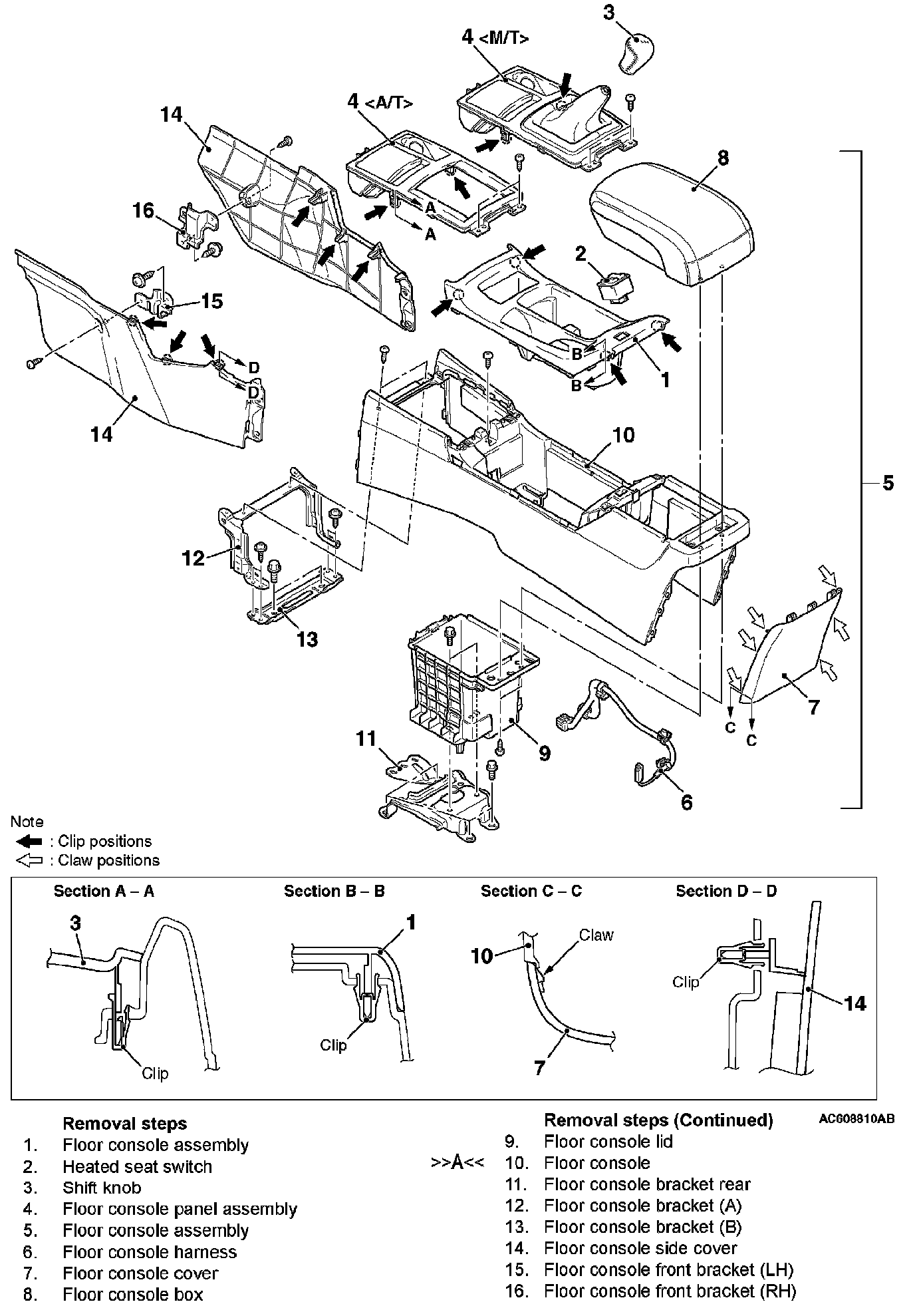

Removal Steps 1 - 16:

REASSEMBLY SERVICE POINT

]]A[[FLOOR CONSOLE REASSEMBLY

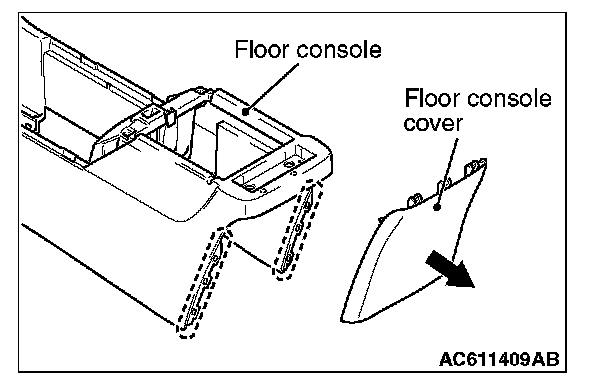

Floor console rear ends (shown in the dotted lines) may damage when removing the floor console cover. You can neglect this damage and floor console is reusable.
