Front Fender: Service and Repair
FENDER
FENDER

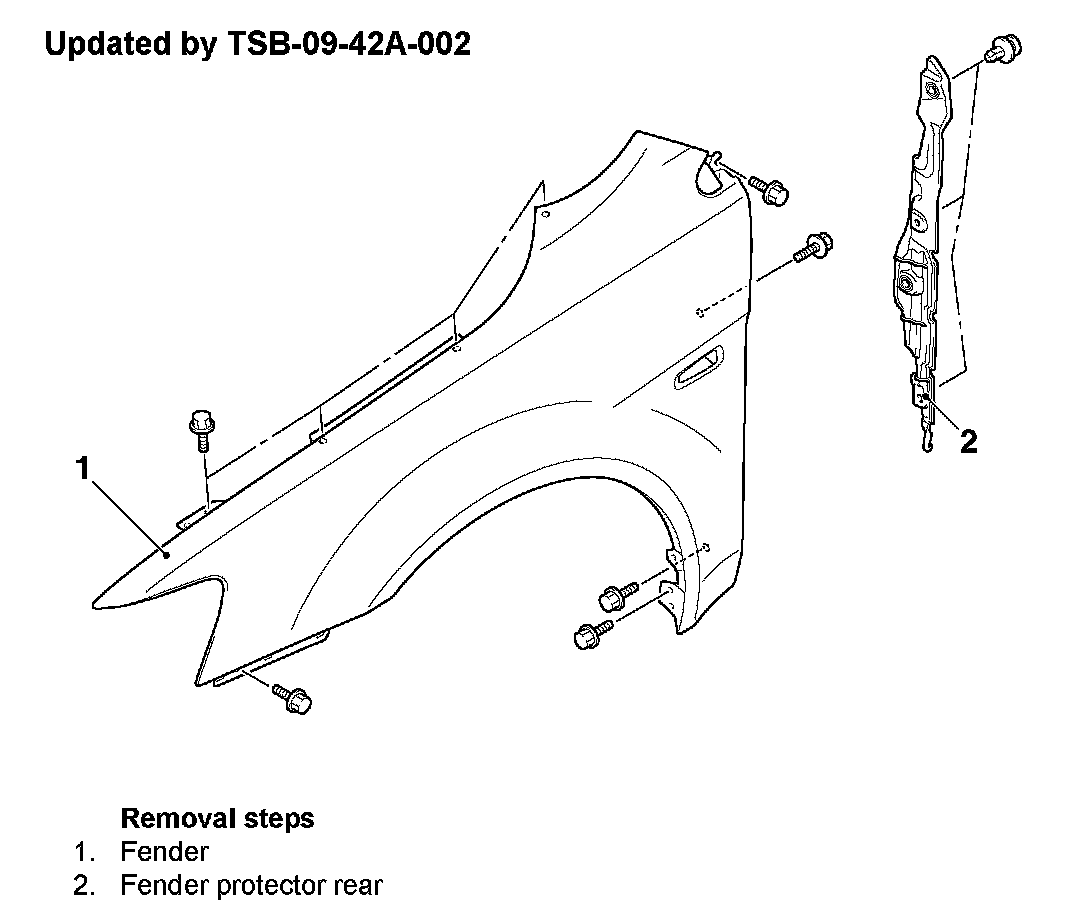

REMOVAL AND INSTALLATION
Pre-removal & Post-installation Operation:
Removal Steps 1 - 2:
