Trunk / Liftgate: Adjustments

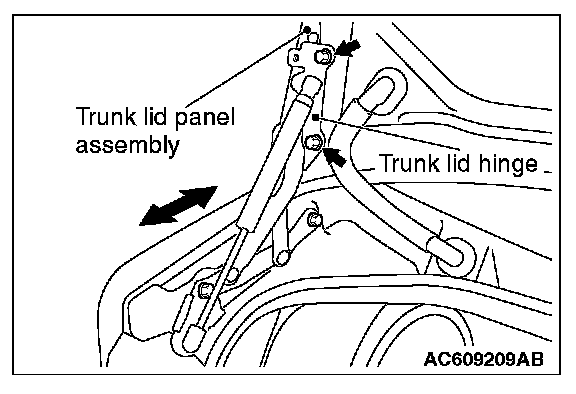

ADJUSTMENT OF CLEARANCE AROUND TRUNK LID






Loosen the trunk lid panel assembly mounting bolts and move the trunk lid panel assembly to make the clearance around the trunk lid uniform.

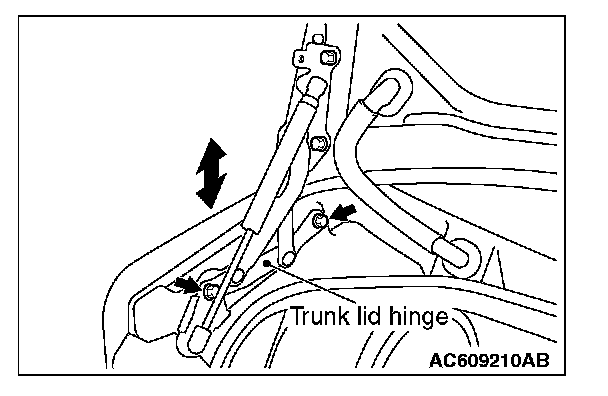

TRUNK LID HEIGHT ADJUSTMENT






If the clearance between the trunk lid and the body is uneven, loosen the body-side trunk lid hinge mounting bolts to adjust it.
