Hood: Service and Repair
HOOD
HOOD
REMOVAL AND INSTALLATION

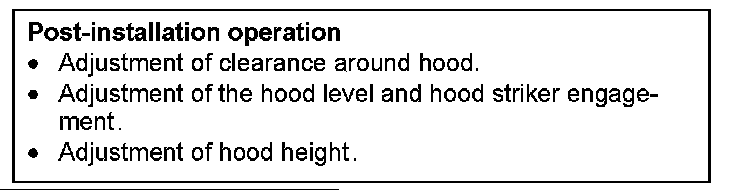

Post-installation Operation:

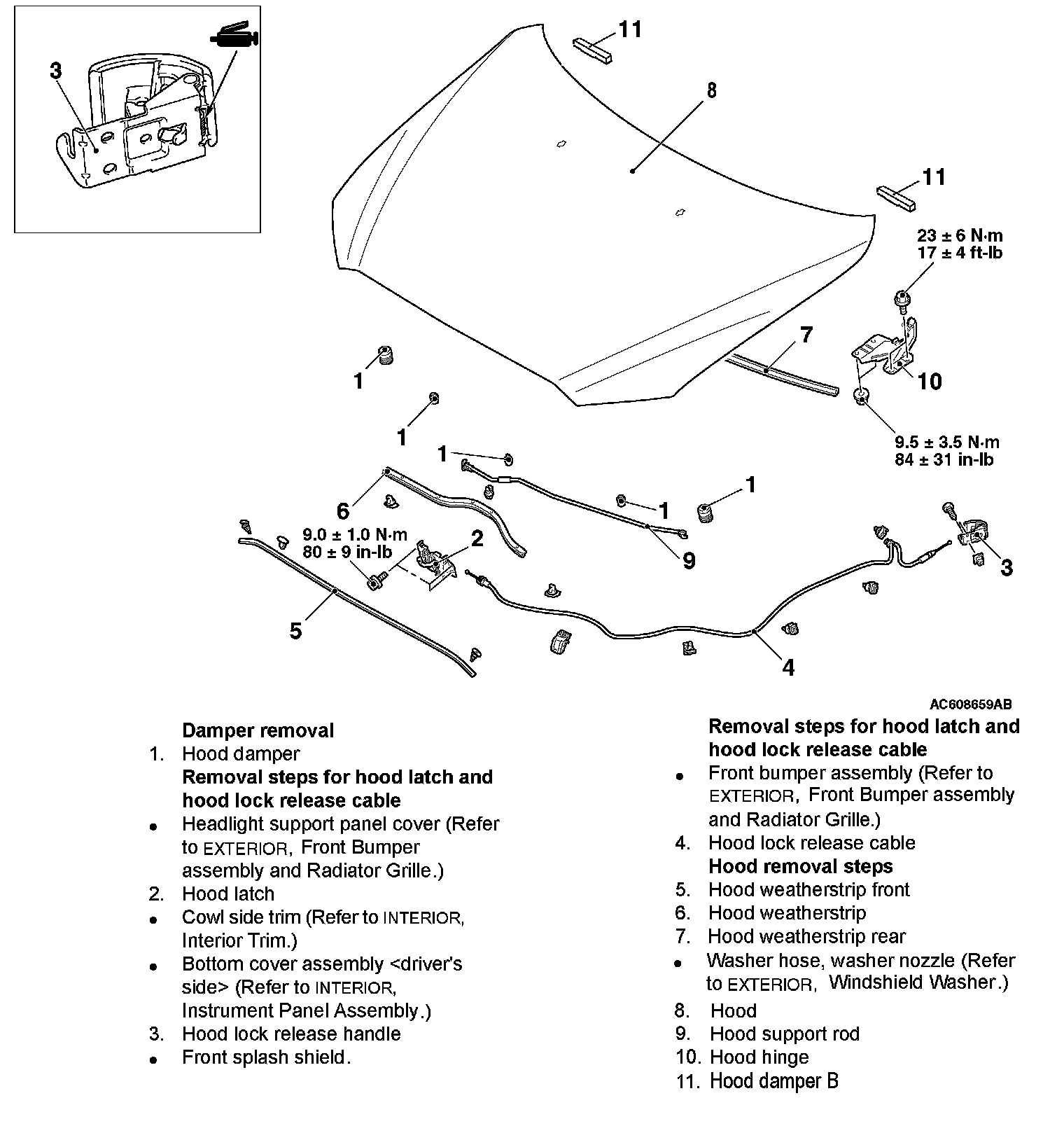

Removal Steps 1 - 11:
