Rear Door Panel: Service and Repair

DOOR TRIM

REMOVAL AND INSTALLATION

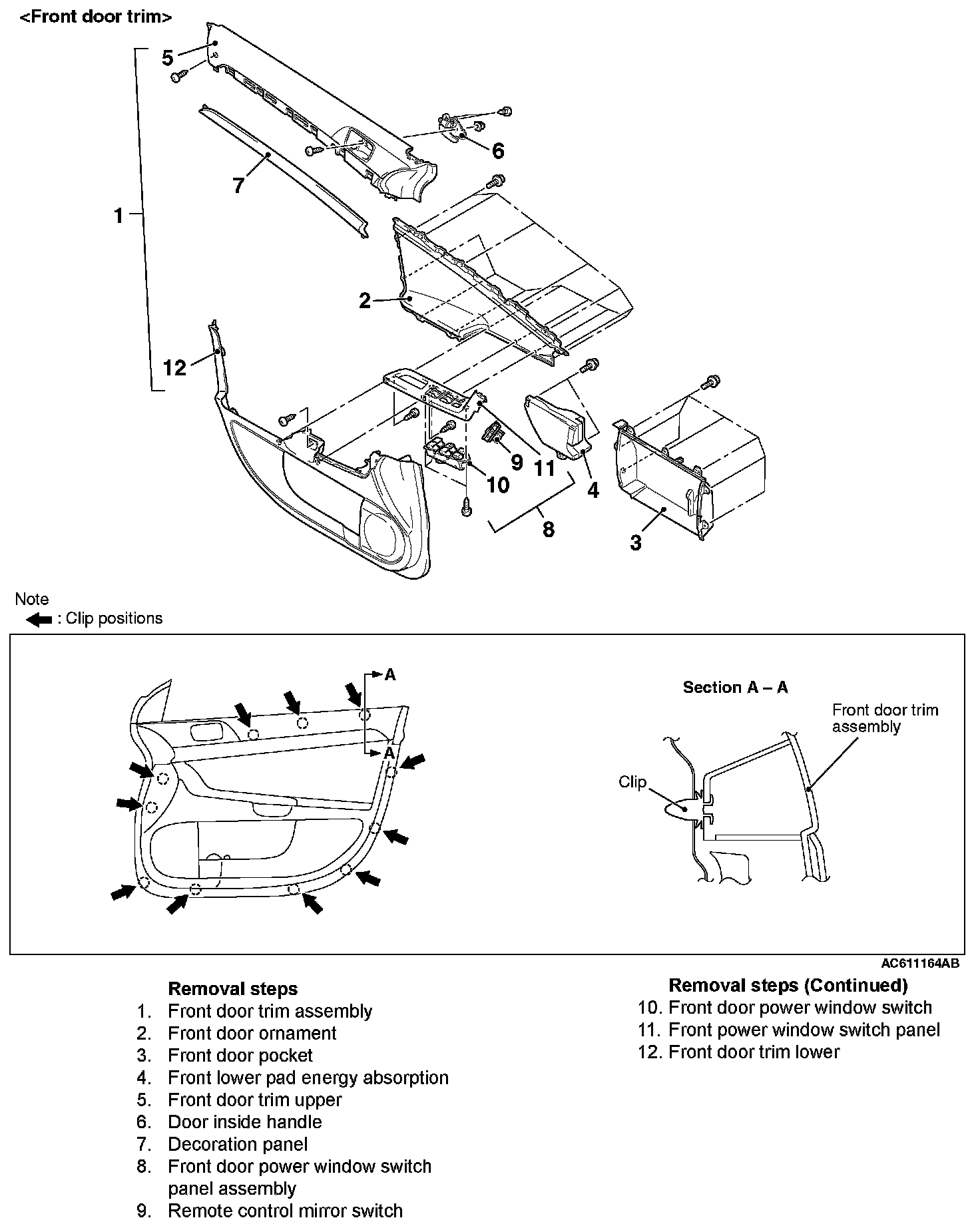

FRONT DOOR TRIM

Removal Steps 1 - 12:






Required Special Tool:
- MB990784: Ornament Remover

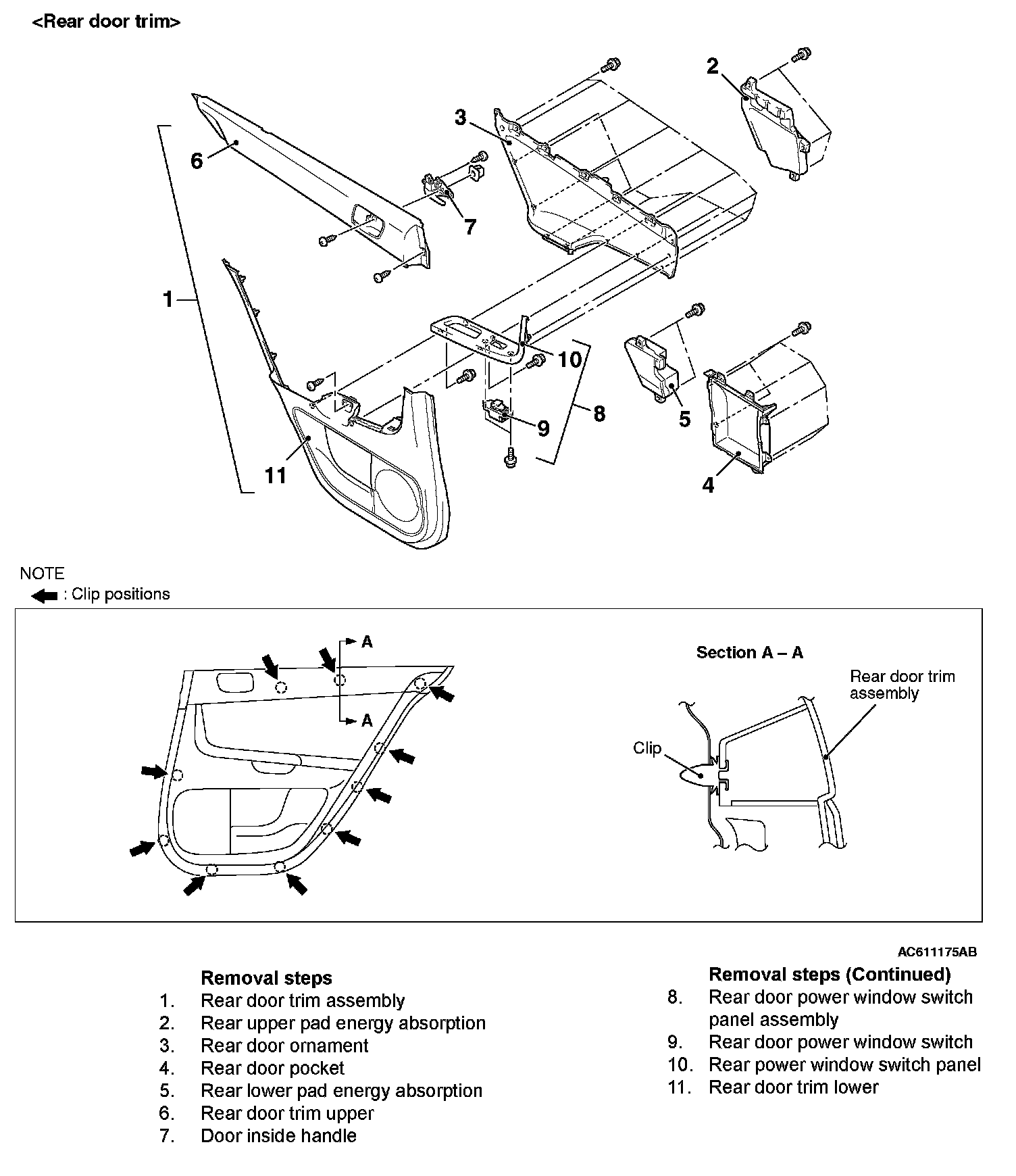

REAR DOOR TRIM

Removal Steps 1 - 11:






Required Special Tool:
- MB990784: Ornament Remover
