Front Door Latch: Service and Repair

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

CAUTION: When the door lock cylinder of the vehicle with WCM is replaced as a full service key set, the key must be registered with the barcode No. attached to the ignition key. (Refer to Wireless Control Module, ID Code Registration Criteria Table.)

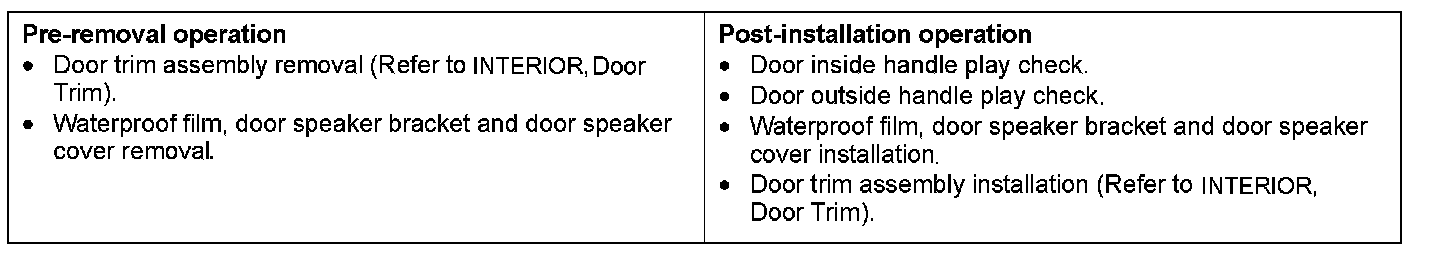

Pre-Removal Operation & Post-Installation Operation:

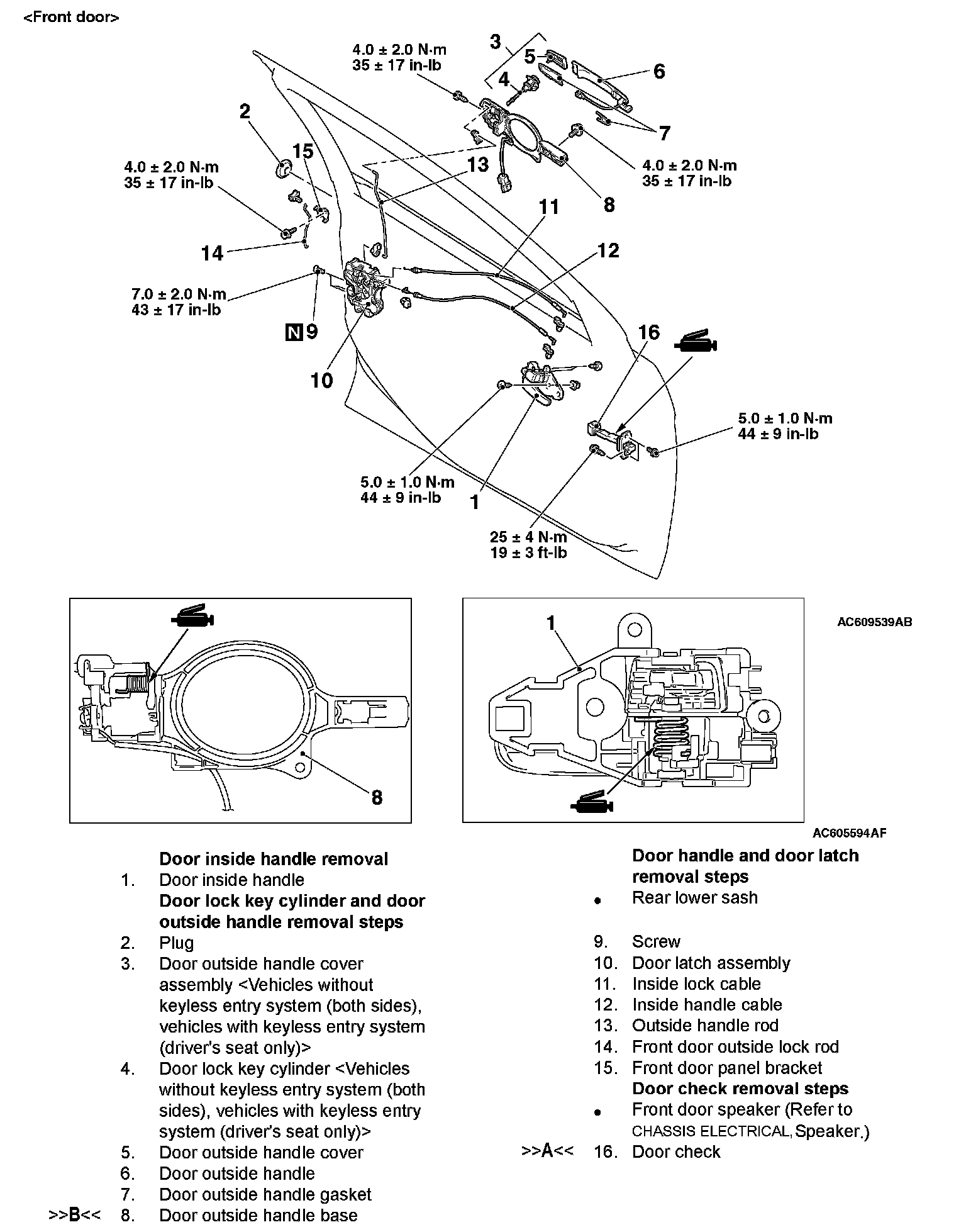

Removal Steps 1 - 16 (Part 1):

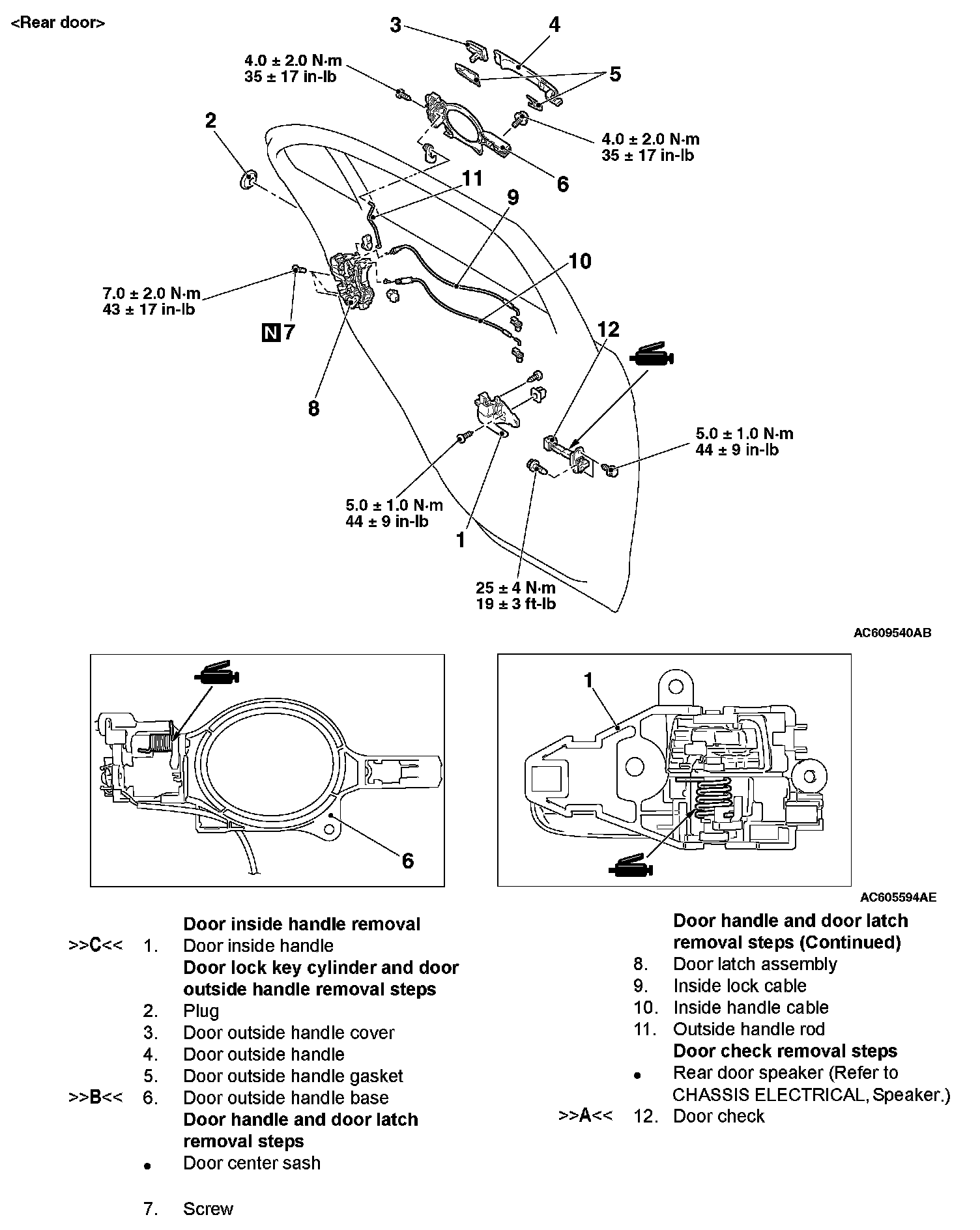

Removal Steps 1 - 12:

Required Special Tool:
- T-type Long Torx Wrench (T30)

INSTALLATION SERVICE POINTS

]]A[[ DOOR CHECK INSTALLATION

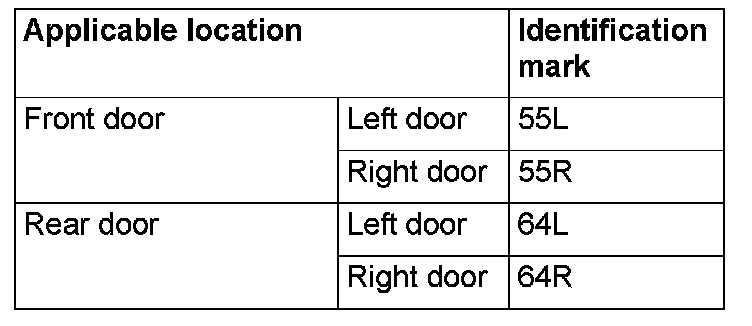

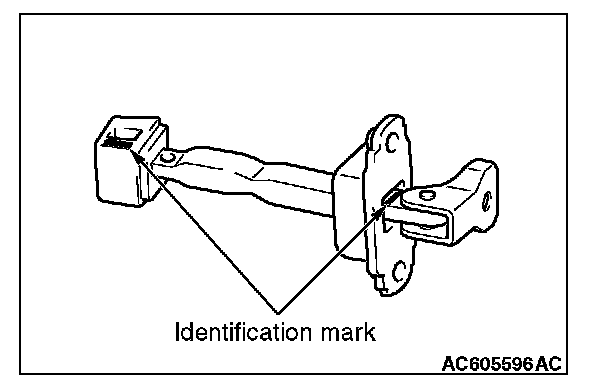

Install the door check with the following identification marks facing upward.






]]B[[ DOOR OUTSIDE HANDLE BASE INSTALLATION

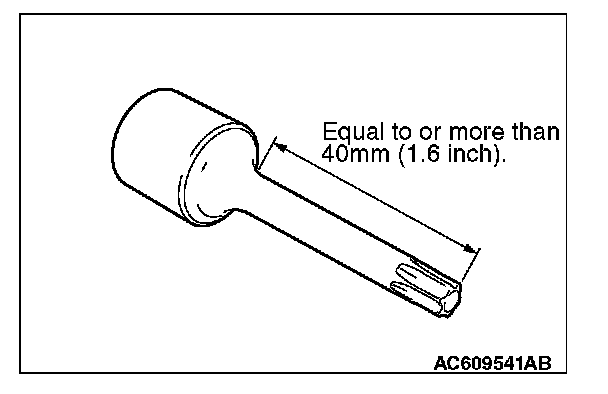

Prepare the tool as shown, and tighten it to the specified torque.

Tightening torque: 4.0 ± 2.0 N. m (35 ± 17 in-lb)

]]C[[ DOOR INSIDE HANDLE INSTALLATION

When connecting the inside cable to the door inside handle, ensure that the door latch and the inside handle are locked.
