Overhaul
TRANSMITTERDISASSEMBLY AND ASSEMBLY
Post-Installation Operation:

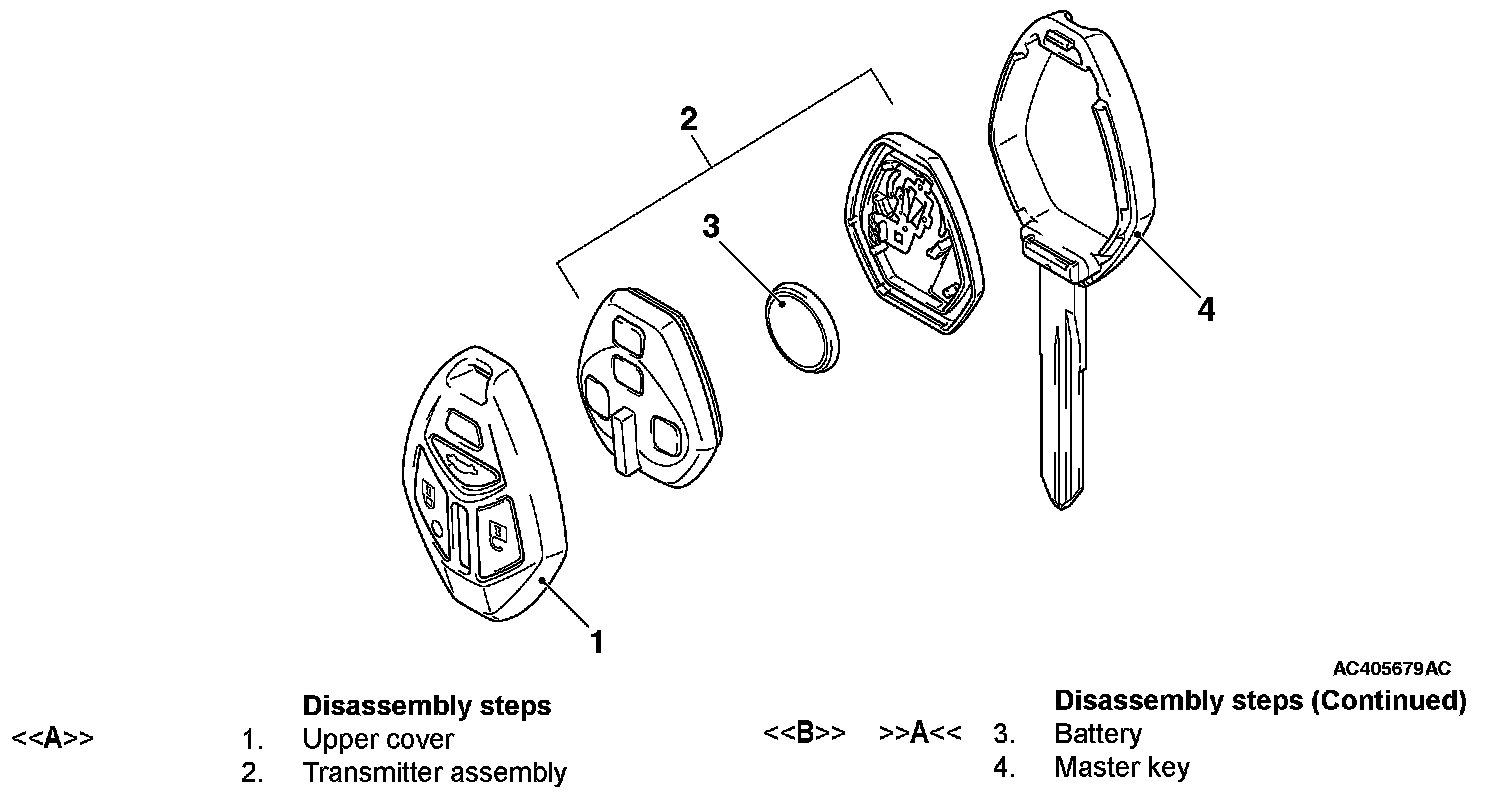

Removal Steps 1-4:
DISASSEMBLY SERVICE POINTS

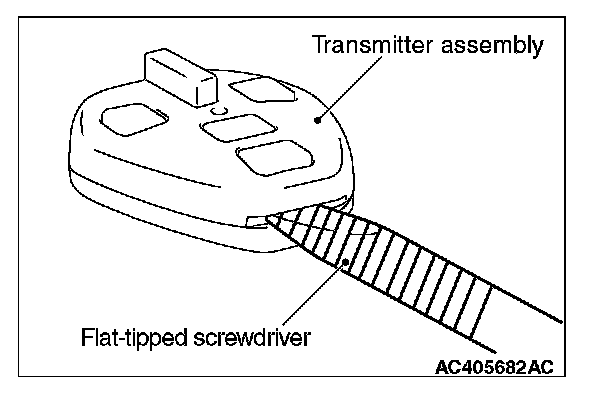

<> UPPER COVER REMOVAL
CAUTION: To prevent damage to the transmitter, wrap a flat-tipped screwdriver with protective tape before prying.
Insert a flat-tipped screwdriver in the area shown, and remove the upper cover by prying it with the screwdriver.

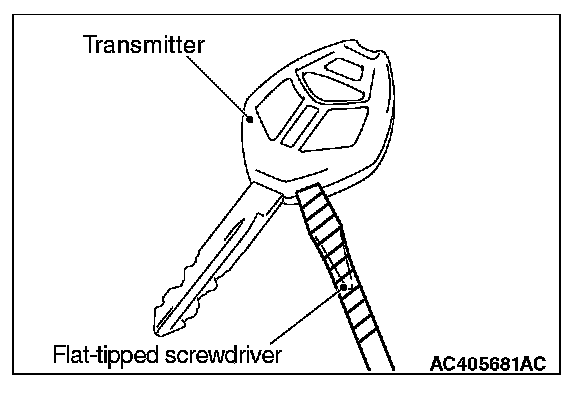

<> BATTERY REMOVAL
CAUTION:
- Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
- To prevent damage to the transmitter assembly, wrap a flat-tipped screwdriver with protective tape before prying.
Insert a flat-tipped screwdriver in the area shown, and remove the battery by prying it with the screwdriver.
ASSEMBLY SERVICE POINT

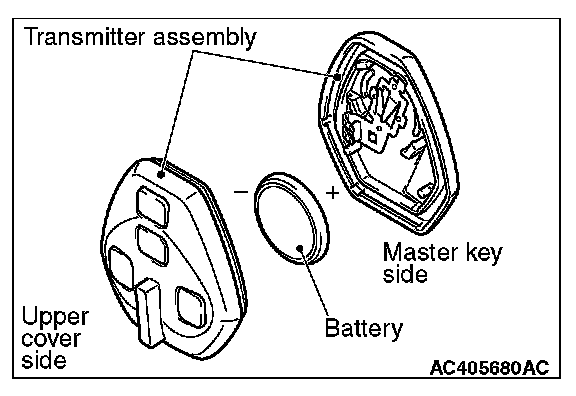

>>A<< BATTERY INSTALLATION
CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.
Install a new battery to the transmitter assembly with its (+) side facing towards the master key side.
Battery required for replacement: Coin type battery CR1620
