Speaker: Service and Repair
REMOVAL AND INSTALLATIONDOOR SPEAKER

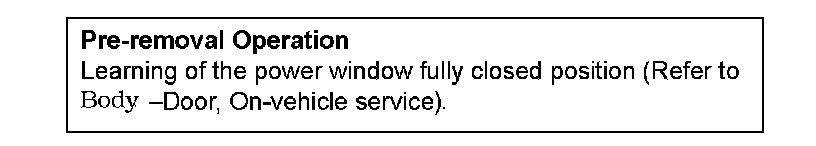

Pre-Removal Operation:

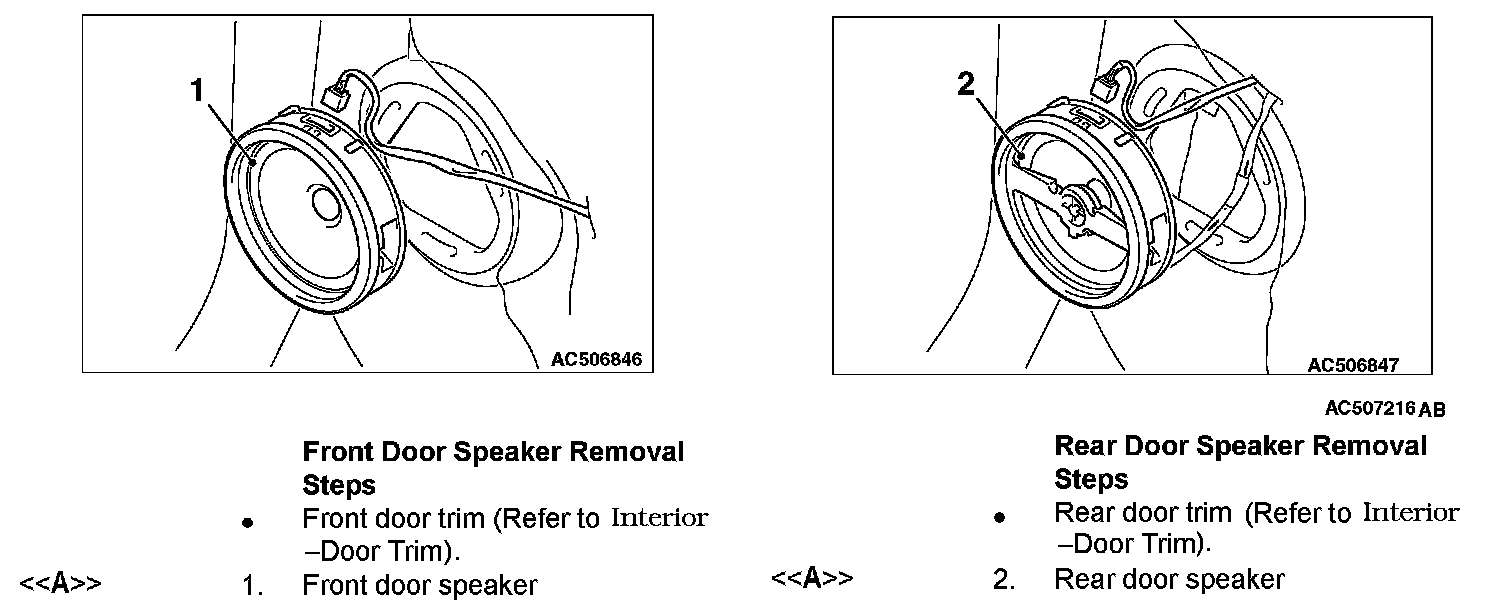

Removal Steps 1-2:
REMOVAL SERVICE POINT
<> REMOVAL OF FRONT DOOR SPEAKER AND REAR DOOR SPEAKER

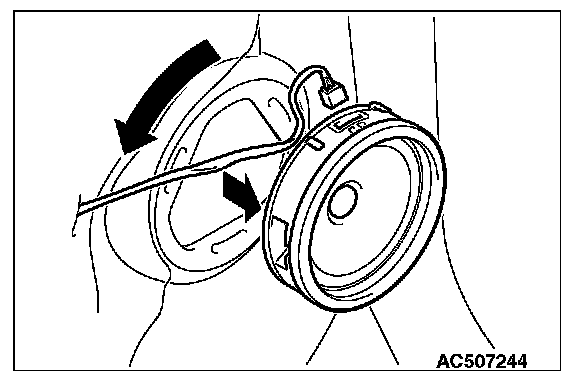

Disconnect the connector, and remove by twisting as shown in the figure.
TWEETER
Removal Steps 1-5:

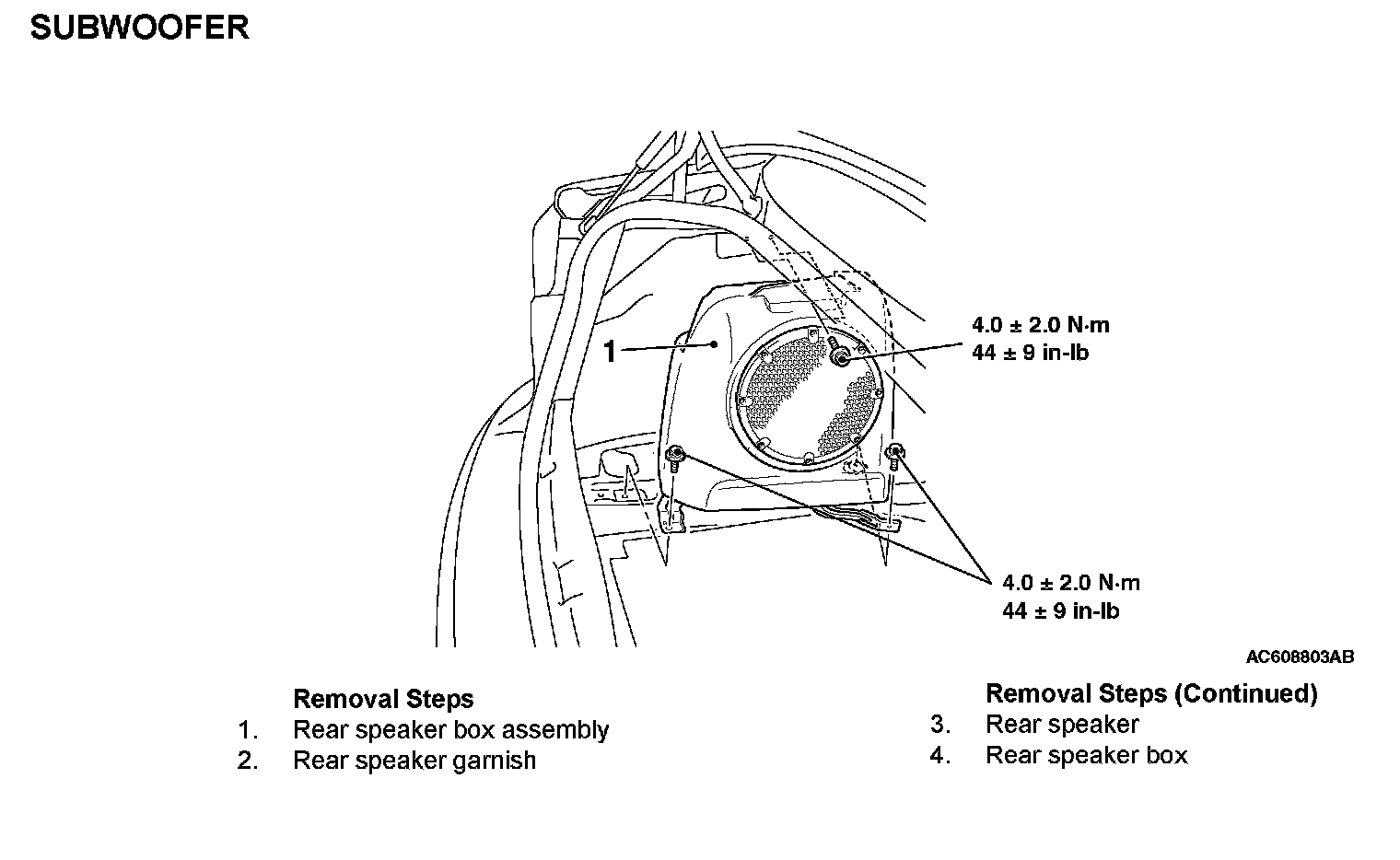

SUBWOOFER
Removal Steps 1-4:
