Procedures

ON-VEHICLE SERVICE

ADJUSTMENT OF VOLUME AND SOUND QUALITY AUTOMATIC CORRECTION FUNCTION




When the following operations are performed with the audio power ON, the sound volume during driving and the ON/OFF of sound quality automatic correction function are switched.

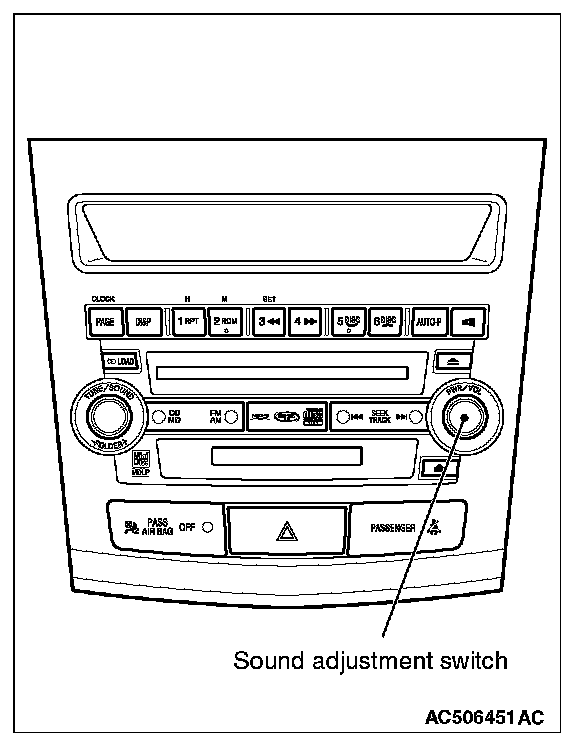

1. Press and hold (approximately 2 seconds) the sound adjustment switch.
2. "SCV" ON (when the automatic correction function is ON) or "SCV" OFF (when the automatic correction function is OFF) is displayed.
3. Turn the sound adjustment switch knob to switch between "SCV" ON and OFF.
4. Press the sound adjustment switch or leave as it is for 10 seconds or more.
5. Go back to the audio normal screen.
