Radio and CD Player

RADIO AND CD PLAYER

GENERAL INFORMATION

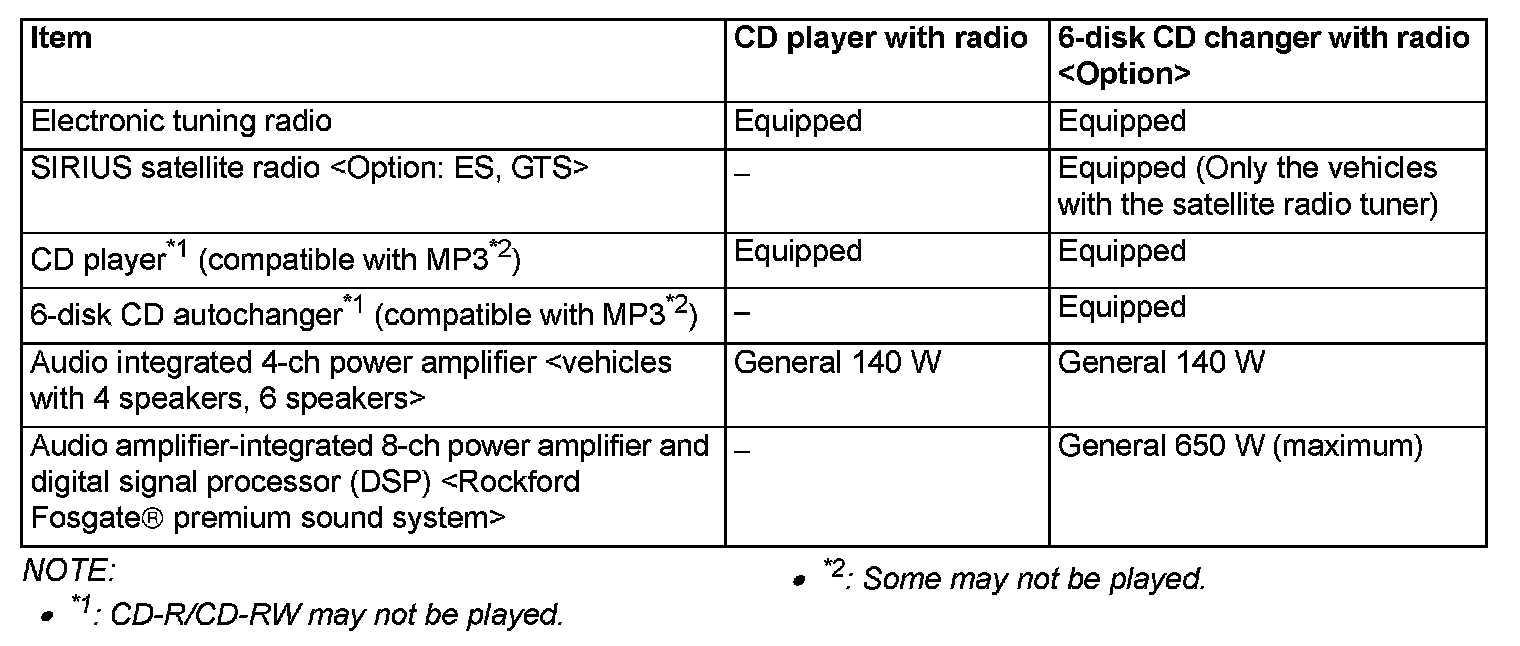

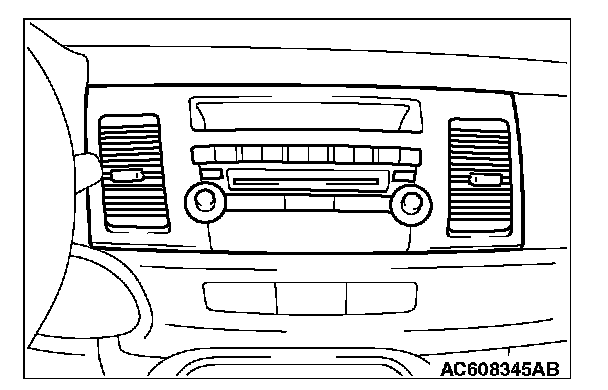

- Two types of audio, CD player with radio or 6-disk CD changer with radio, have been established. The audio has designed to fit uniformally into the instrument panel. Also, a new function automatically corrects the sound quality and volume during driving.

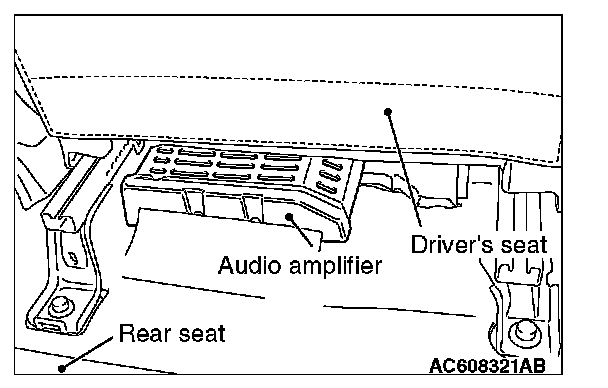

- For the vehicles with Rockford Fosgate[R] premium sound system, the 8-ch high-power audio amplifier with integrated DSP (total maximum output of 650 W) has been established under the driver's seat. The clear treble without distortion is available.

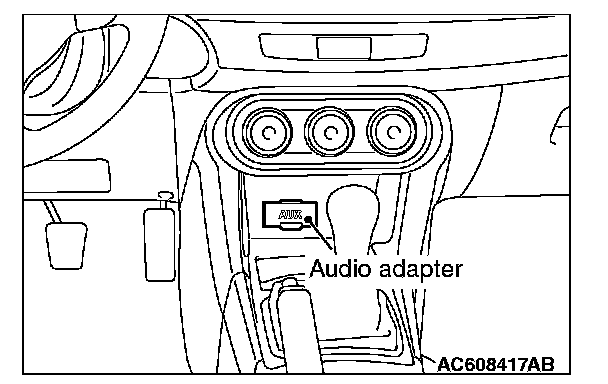

- For the vehicles with Rockford Fosgate[R] premium sound system, the audio adapter has been established onto the center tray. With this modification, portable music player can be connected.
