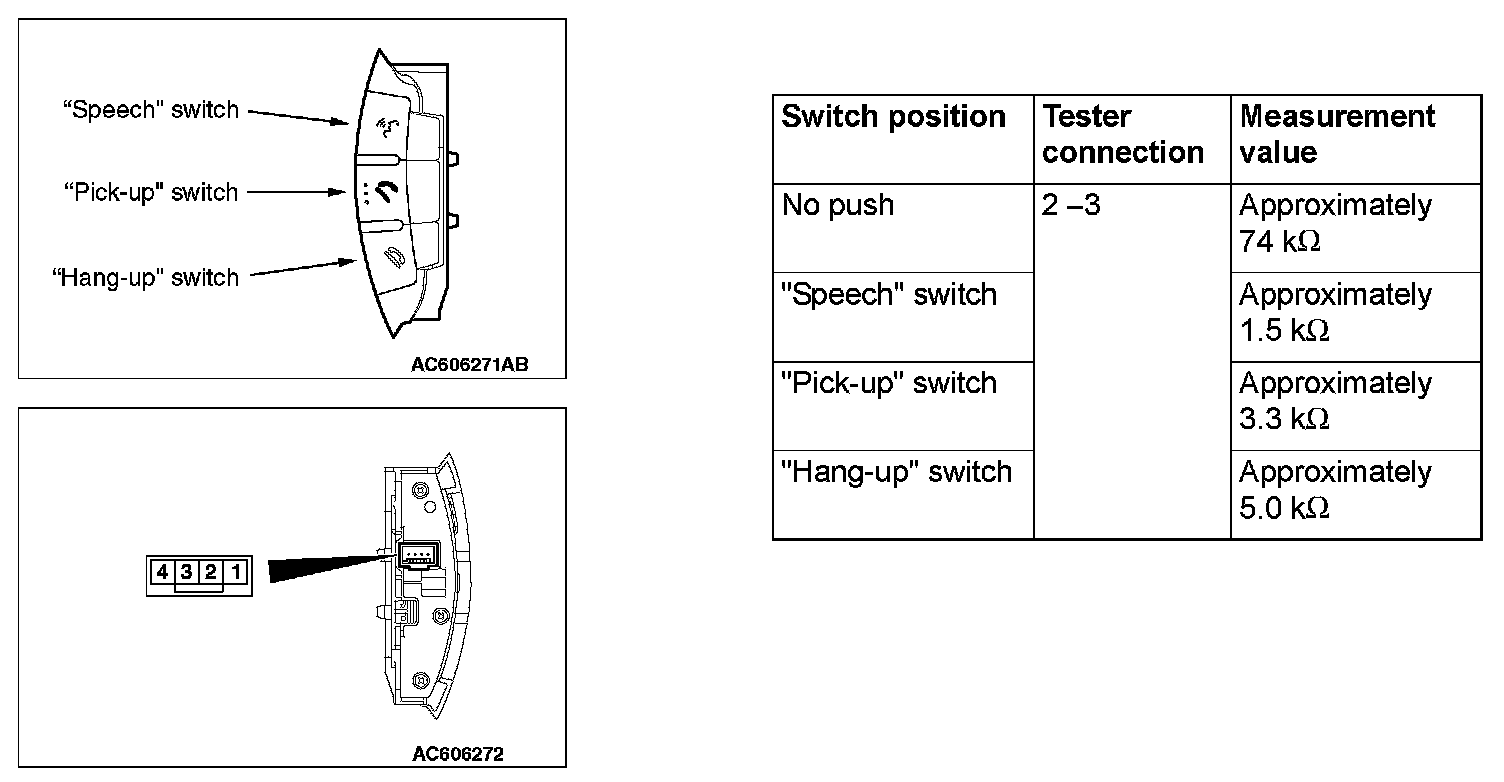

STEERING WHEEL VOICE-CONTROL SWITCH CONTINUITY CHECK
Use an ohmmeter to measure the resistance value between the terminal.
