Steering Voice Control Switch

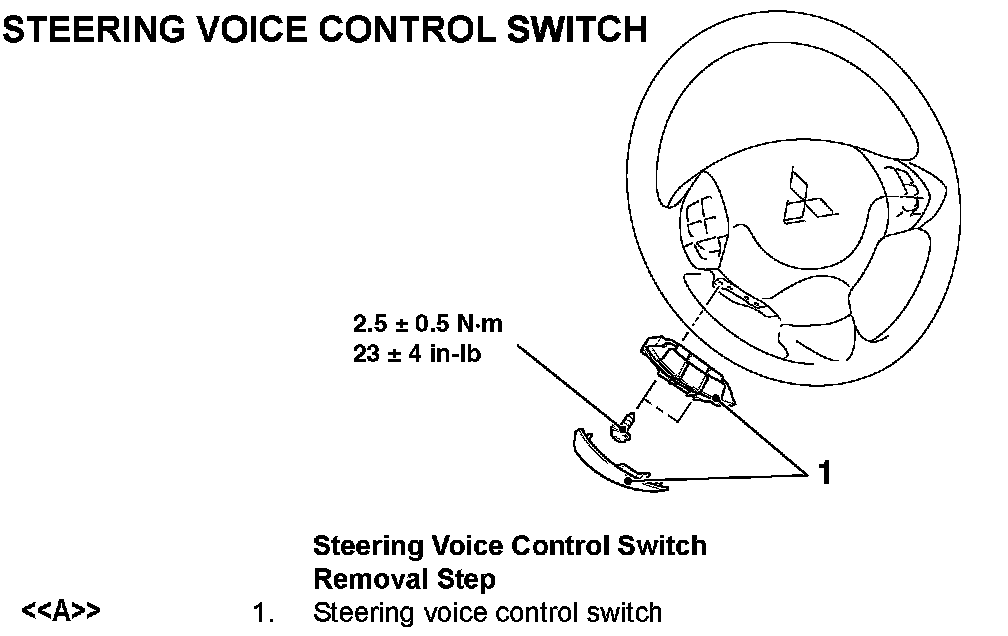

STEERING VOICE CONTROL SWITCH

Removal Step 1:






REMOVAL SERVICE POINT

<> STEERING VOICE CONTROL SWITCH REMOVAL
Remove the cover first, and then remove the screw that is used to fix the switch body part.
