Keyless Entry Transmitter Battery: Testing and Inspection

INSPECTION

KEYLESS OPERATION KEY BATTERY CHECK

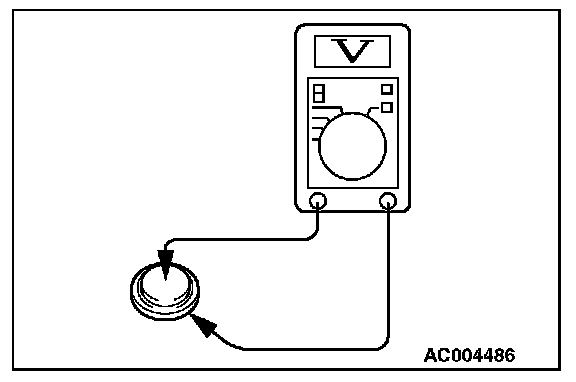

Measure the voltage of the battery. If the voltage of the battery is lower than the standard value, replace the battery.

Standard value: 2.5-3.2 V
