Antitheft and Alarm Systems: Description and Operation

GENERAL INFORMATION

- When the doors are locked using the keyless entry or KOS (except when locked by using the key cylinder or door lock switch), the improper opening of door or trunk causes the ETACS-ECU function and control to give off an alarm with the flashing of headlights and the intermittent sounding of horns. Also, the ETACS-ECU warns that the theft-alarm system is being set by flashing the theft-alarm indicator. < ES,GTS: Standard, DE (Except for California and Canada): Option>
- By pressing the panic button of transmitter, the flashing of headlights and the intermittent sounding of horns can be performed by remote control operation. < ES,GTS: Standard, DE (Except for California and Canada):Option>

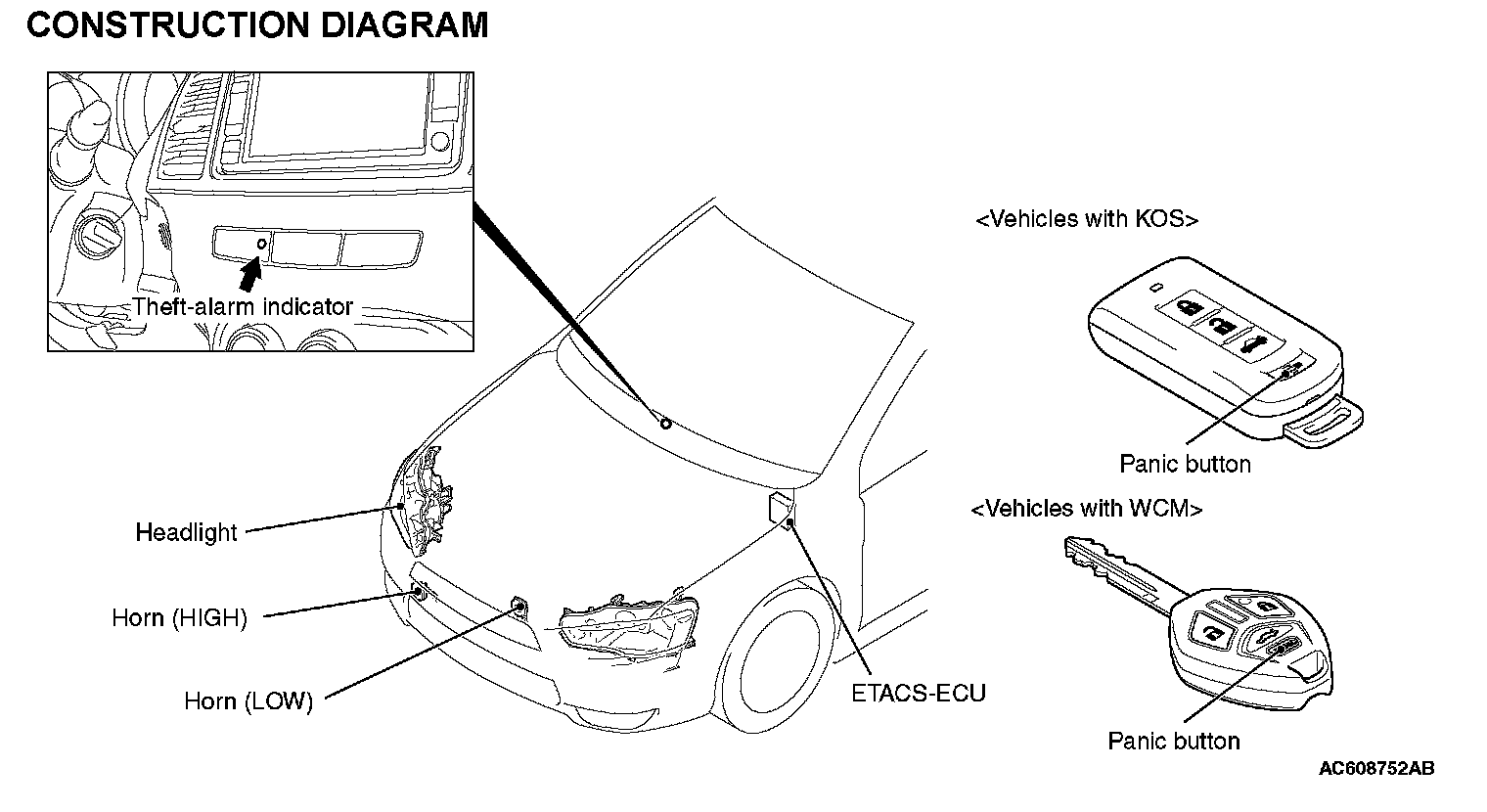

CONSTRUCTION DIAGRAM
