Antenna, Radio: Service and Repair

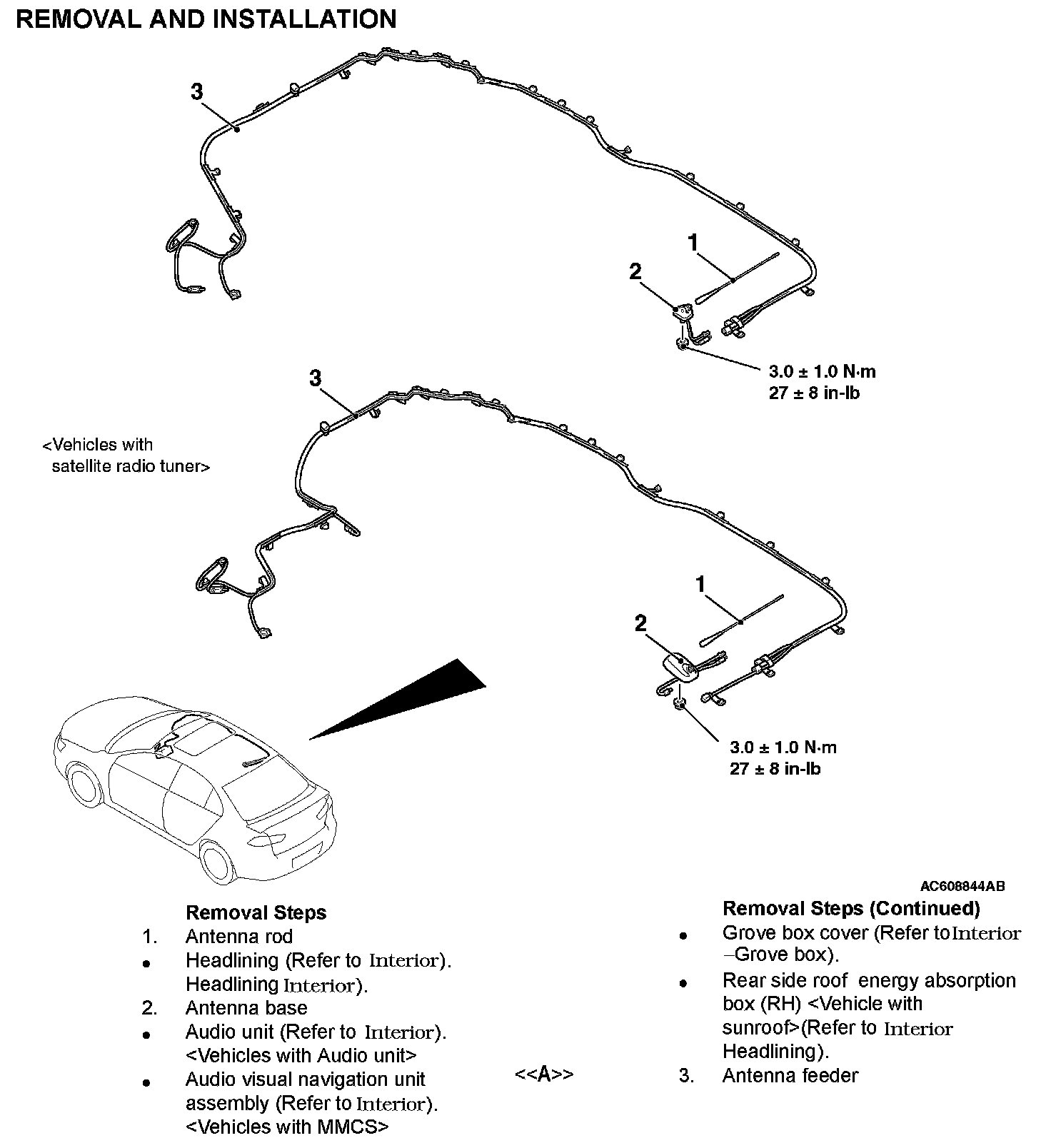

REMOVAL AND INSTALLATION

Removal Steps 1-3:






REMOVAL SERVICE POINT

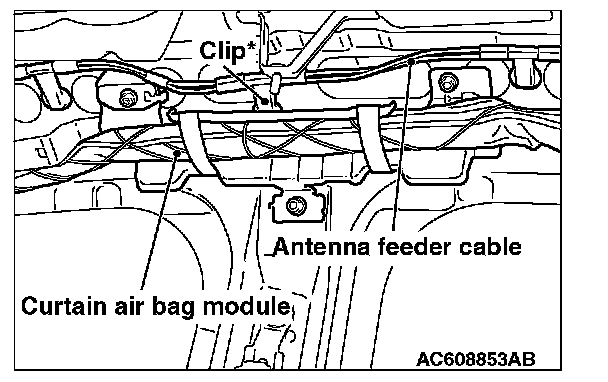

<> REMOVAL OF ANTENNA FEEDER




Remove a part of the curtain airbag module, and remove the clip of antenna feeder.
