Shift Lever, (TC-SST)

NOTE: The content of this article/image reflects the changes identified in TSB-09-22-003.

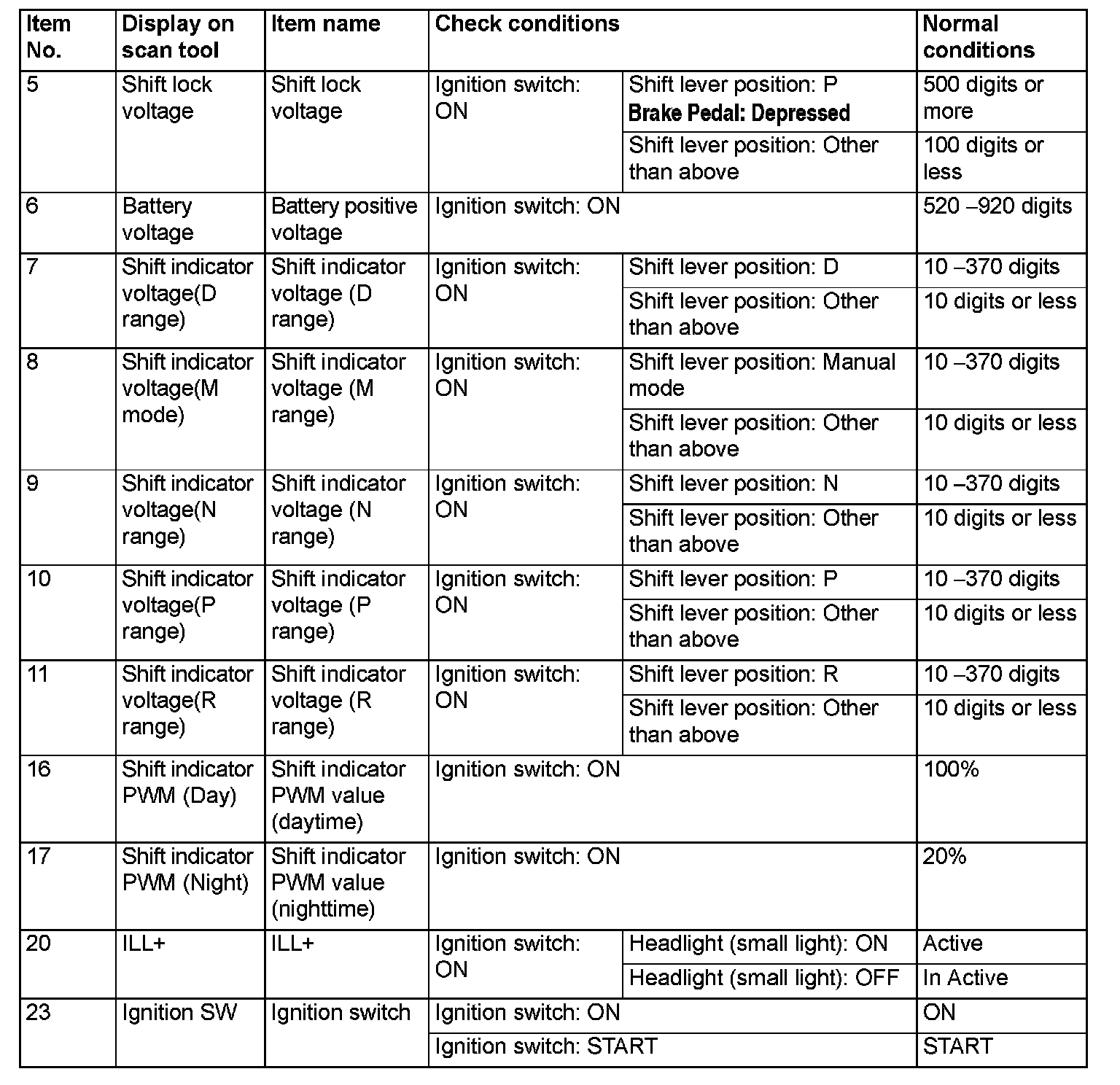

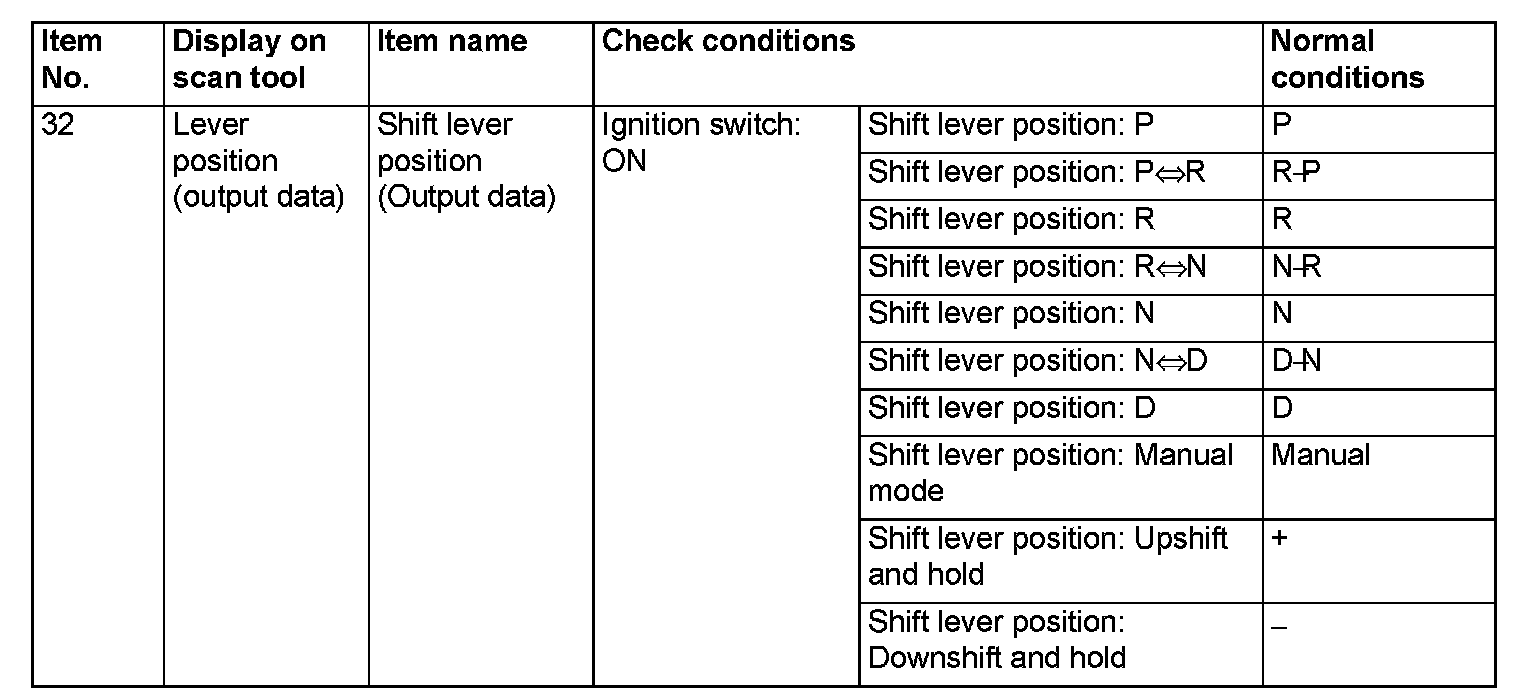

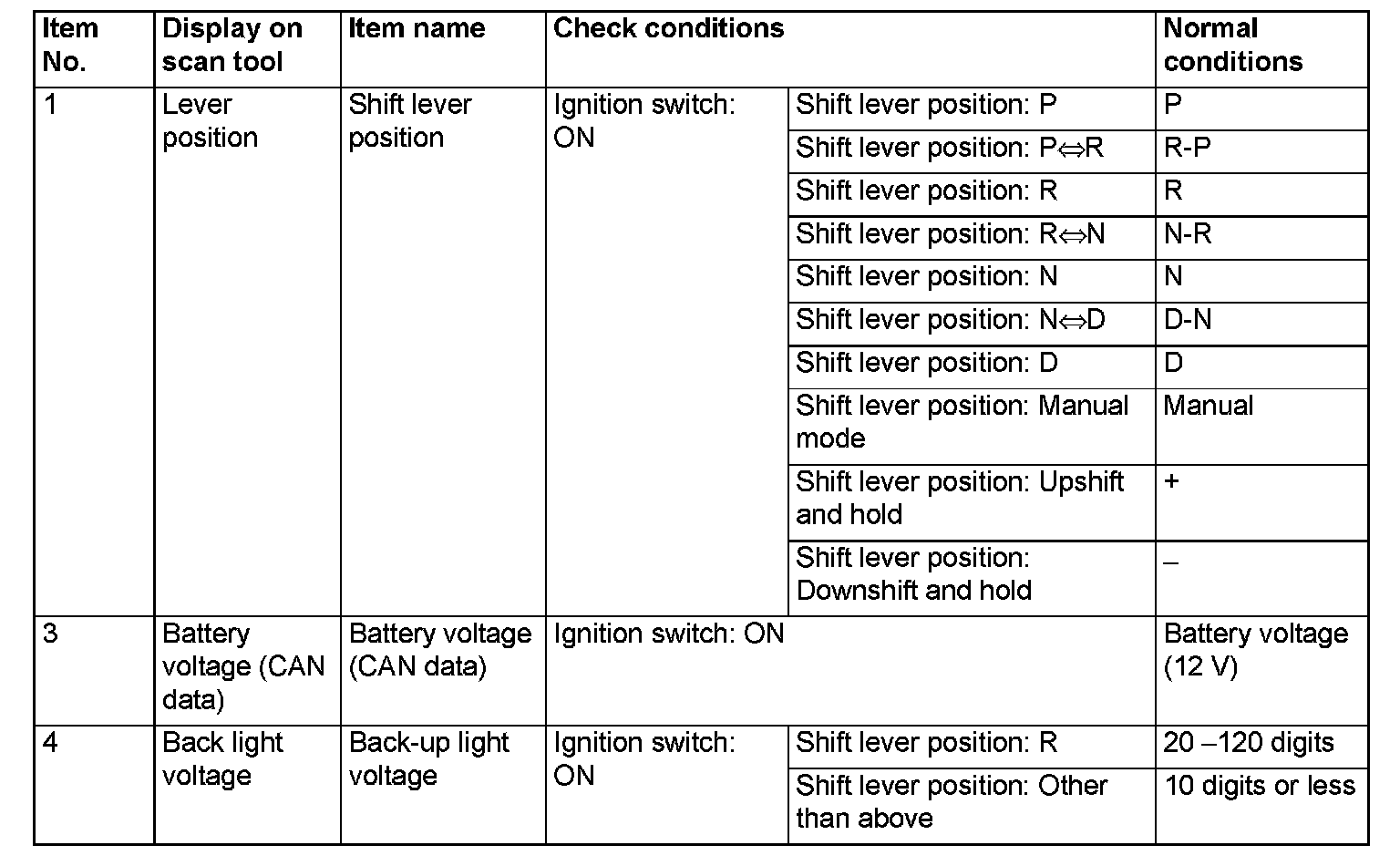

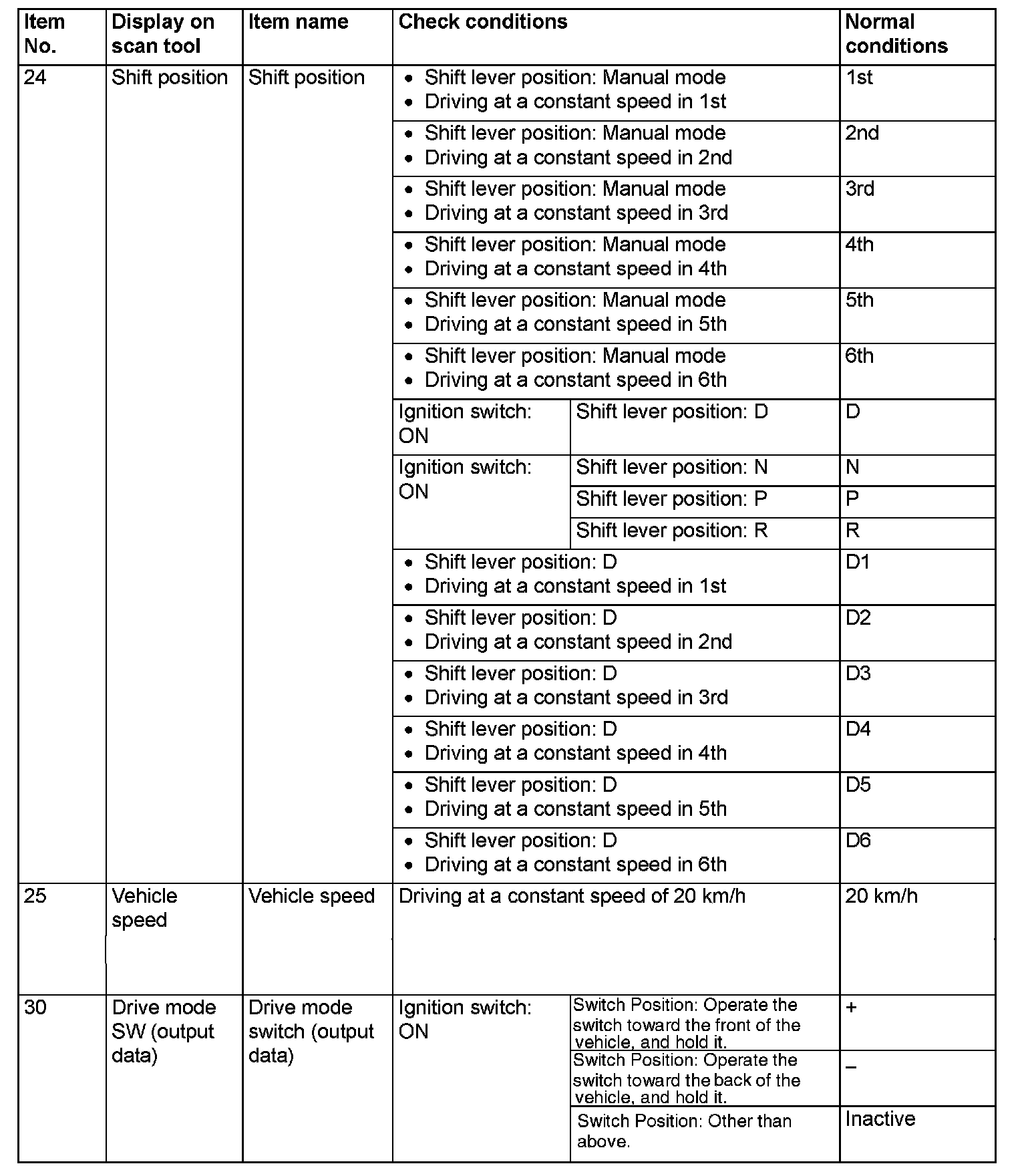

DATA LIST REFERENCE TABLE

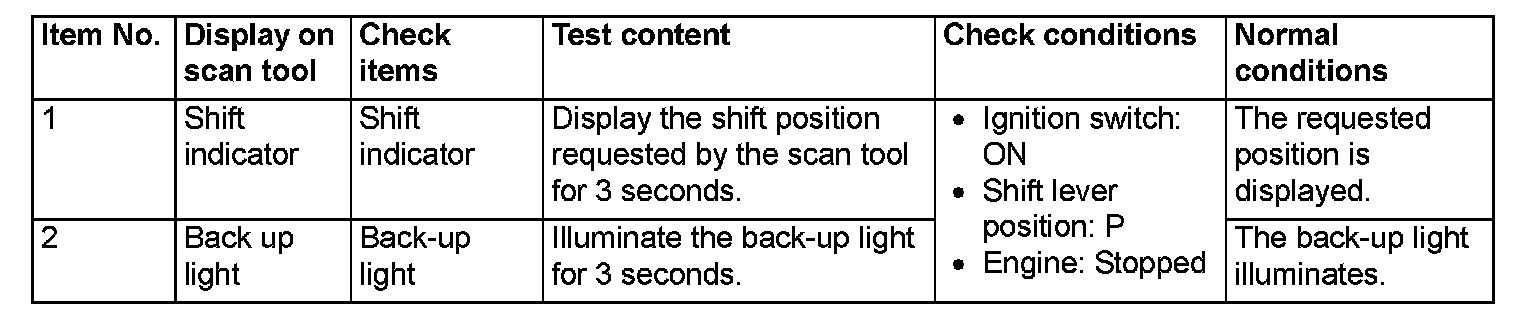

SPECIAL FUNCTION (ACTUATOR TEST REFERENCE TABLE)

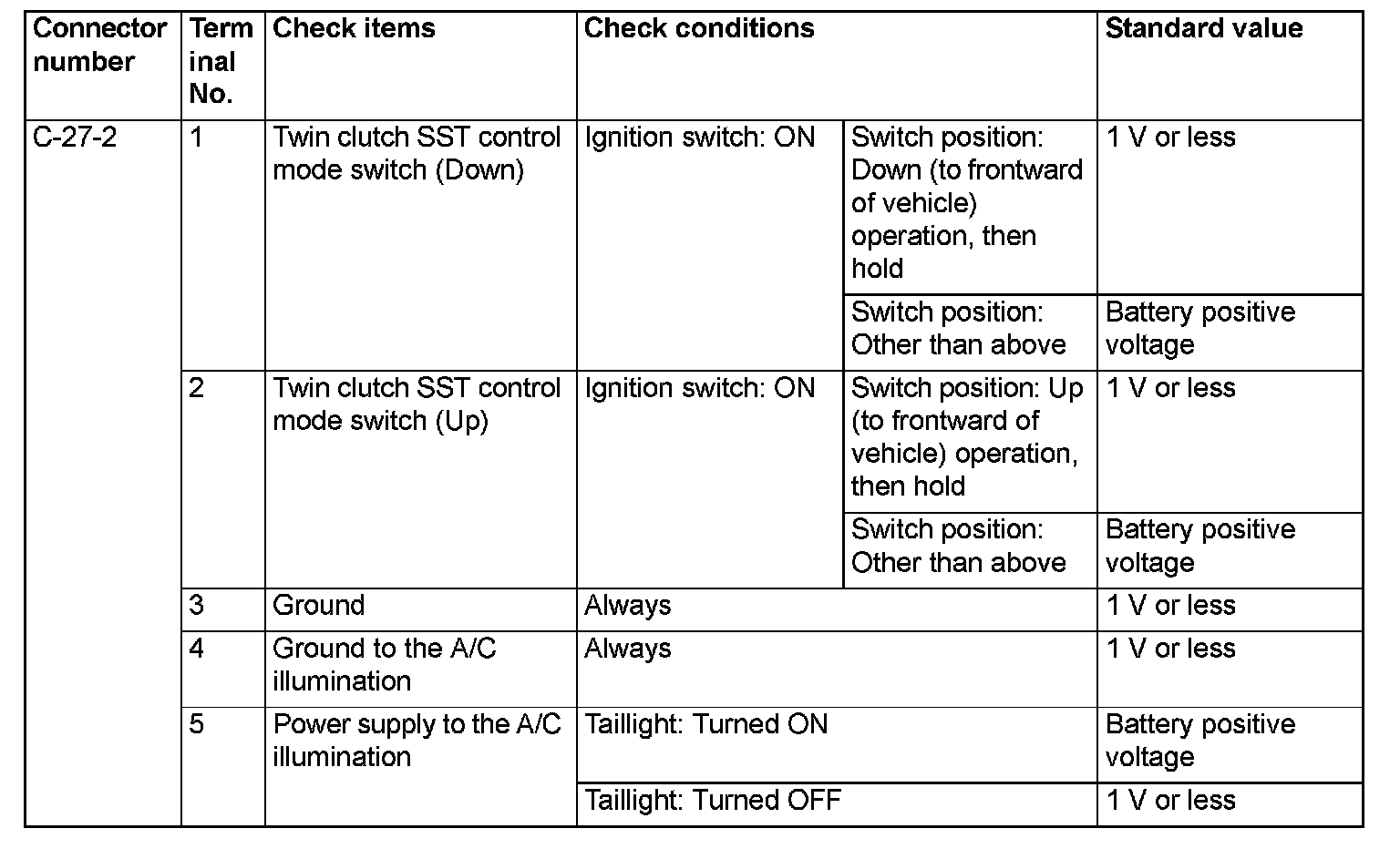

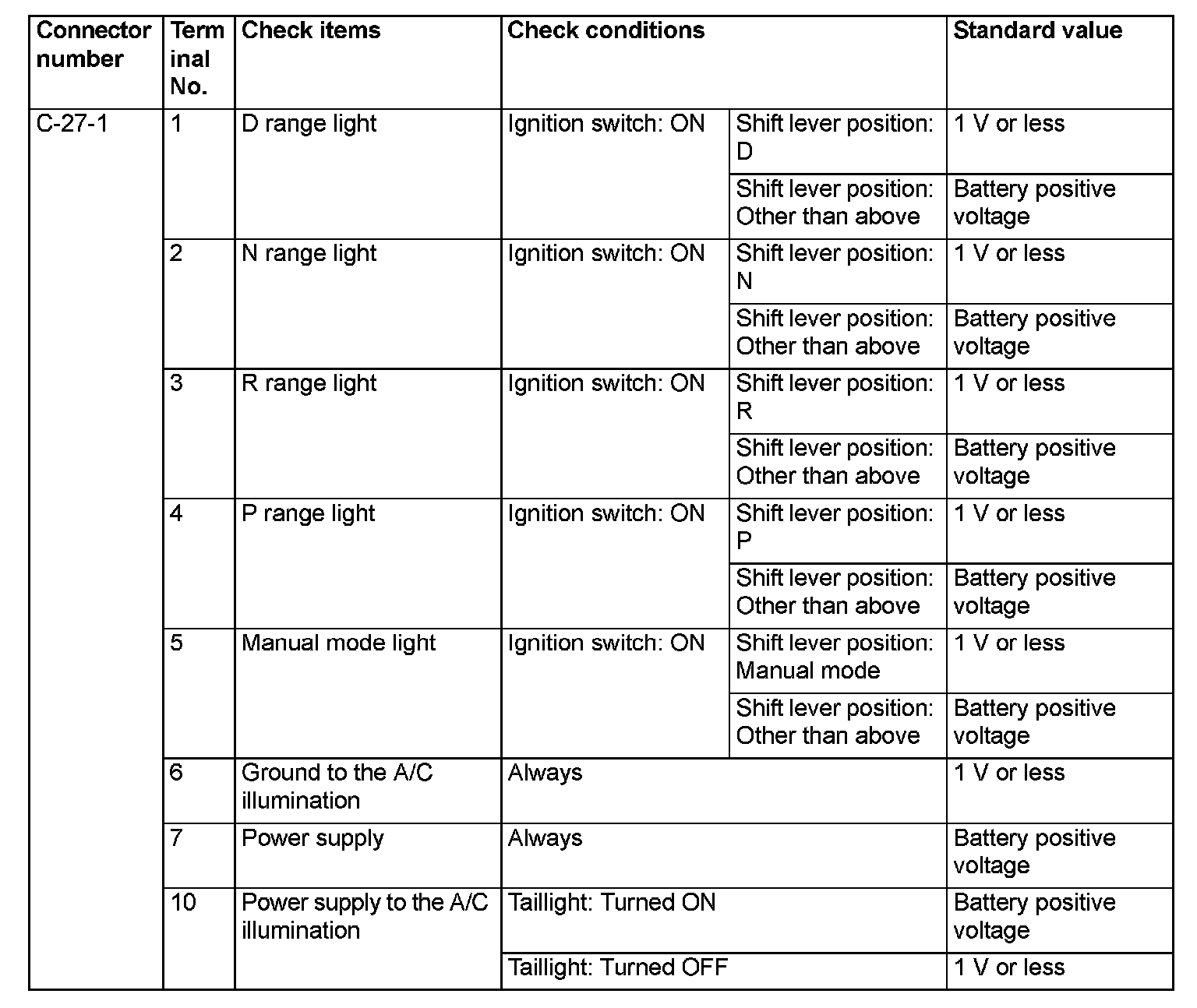

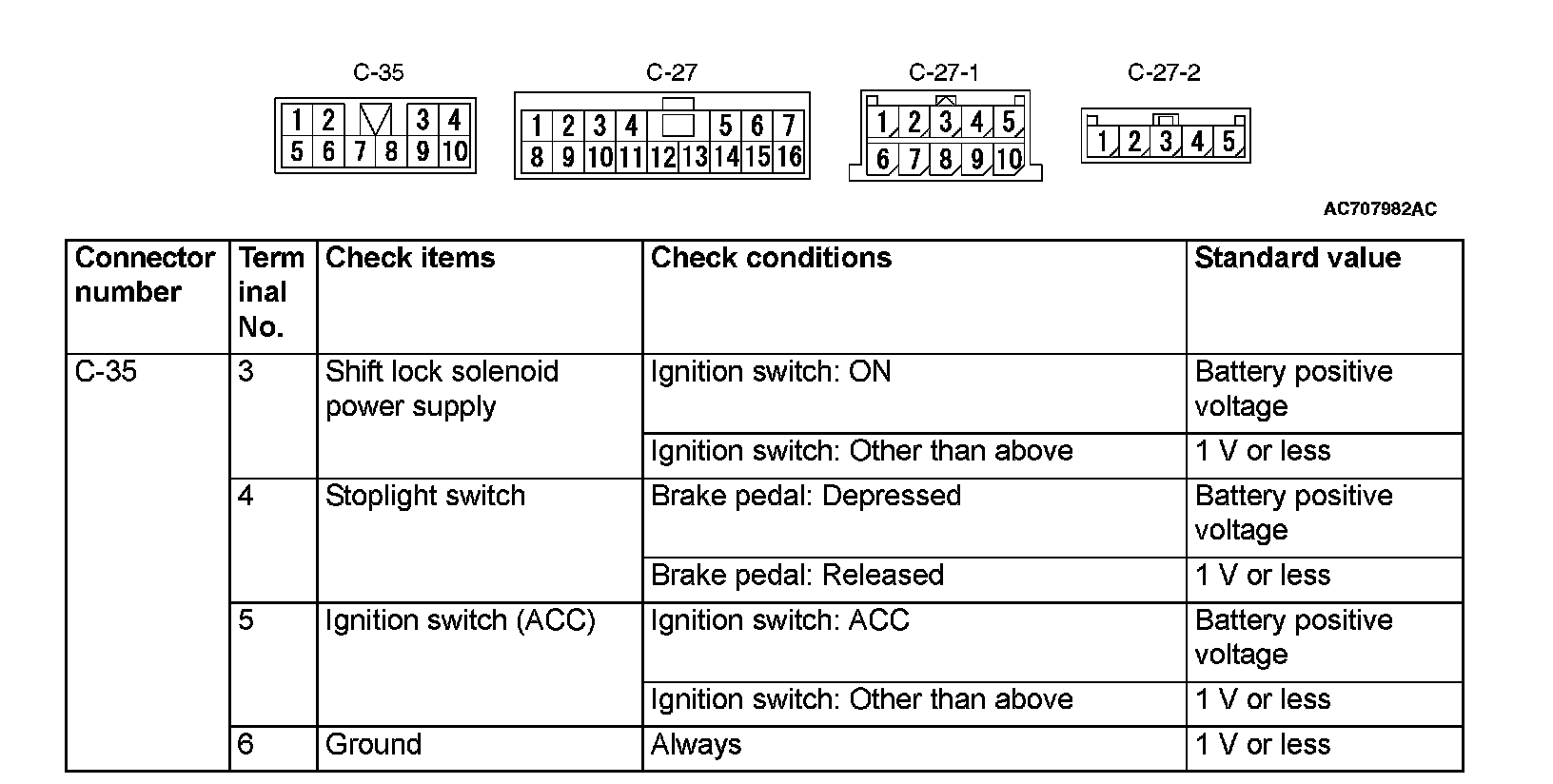

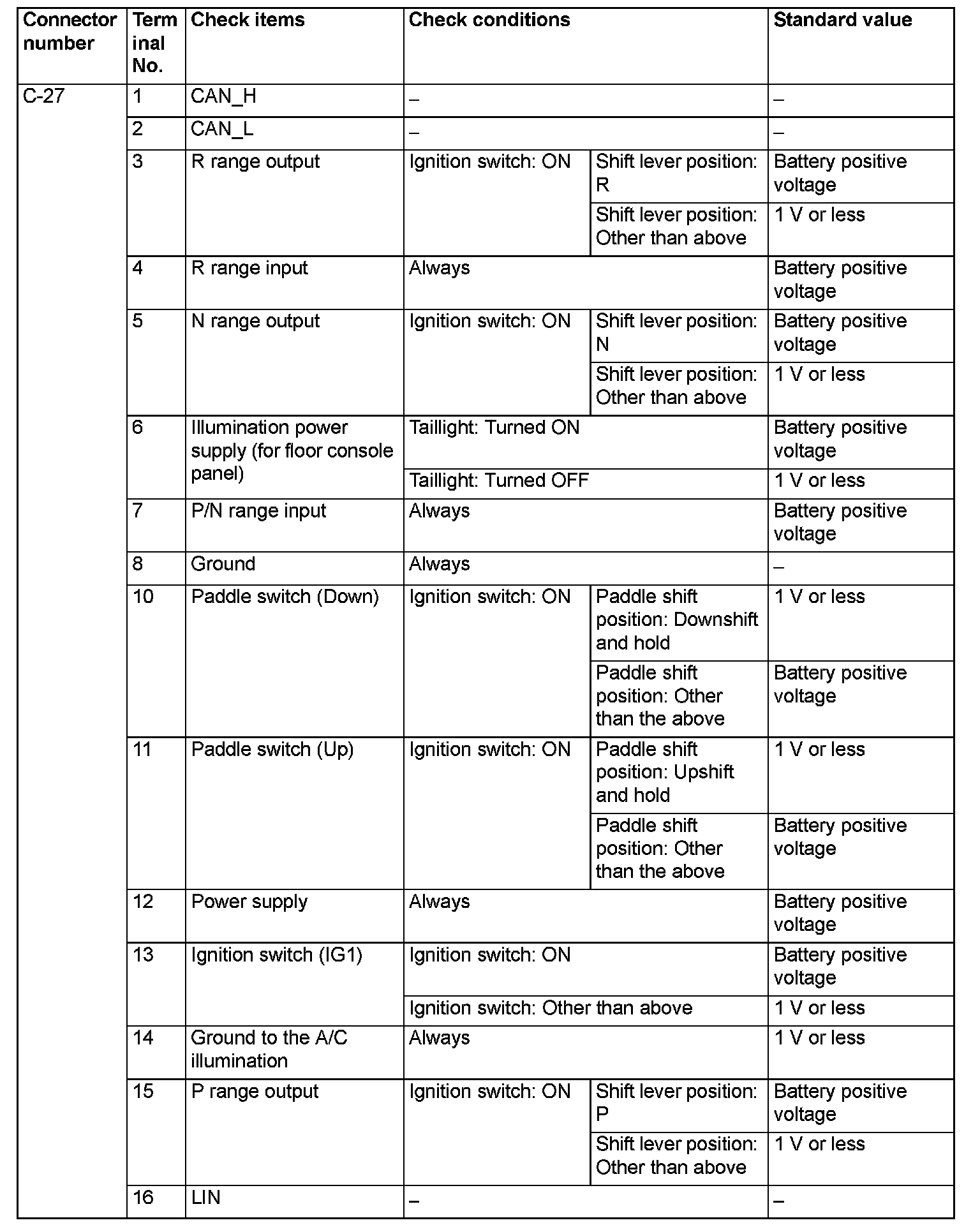

SHIFT LEVER-ECU TERMINAL VOLTAGE REFERENCE CHART
