Twin Clutch-Sportronic Shift Transmission (TC-SST)

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

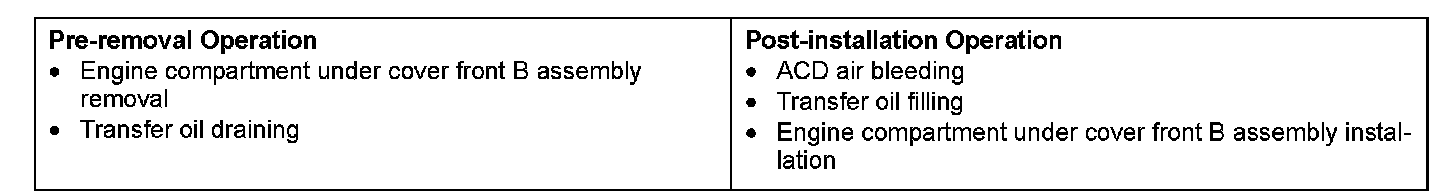

Pre-removal & Post-installation Operations:

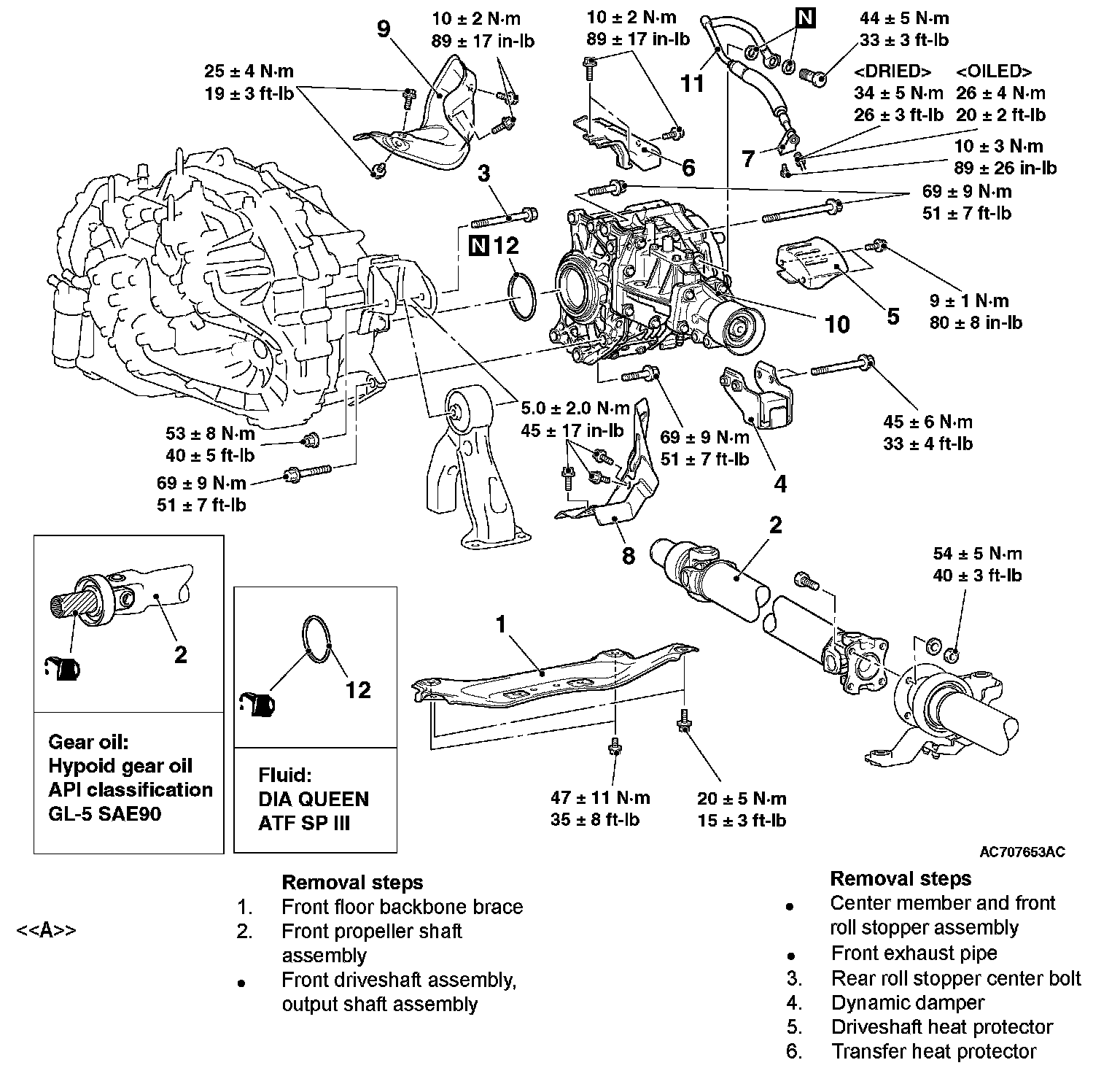

Removal Steps 1-6:

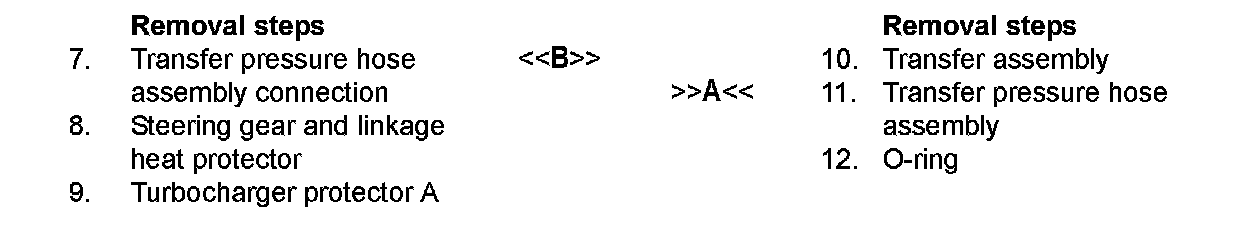

Removal Steps 7-12:

REMOVAL SERVICE POINTS

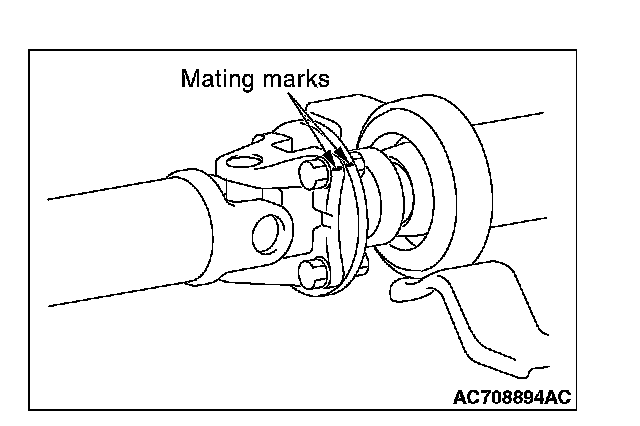

[[A]] FRONT PROPELLER SHAFT ASSEMBLY REMOVAL





Make mating marks on the front propeller shaft assembly and companion flange, then remove the connecting nut.

[[B]] TRANSFER ASSEMBLY REMOVAL
Move the engine and transaxle assembly toward the front of the vehicle to create a gap between the engine/transaxle assembly and the crossmember. Pull out the transfer assembly through this gap.

INSTALLATION SERVICE POINTS

]]A[[ TRANSFER PRESSURE HOSE ASSEMBLY INSTALLATION

CAUTION: When installing the transfer pressure hose assembly, use caution that the assembly does not interfere with surrounding components.
