Manual Transaxle

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

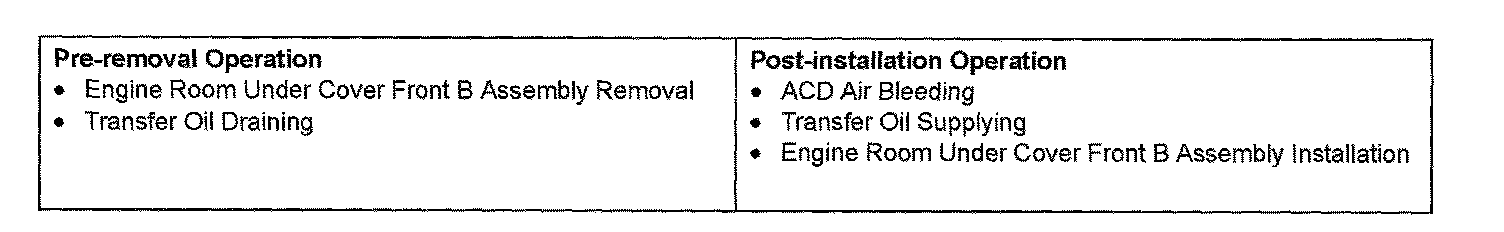

Pre-removal & Post-installation Operations:

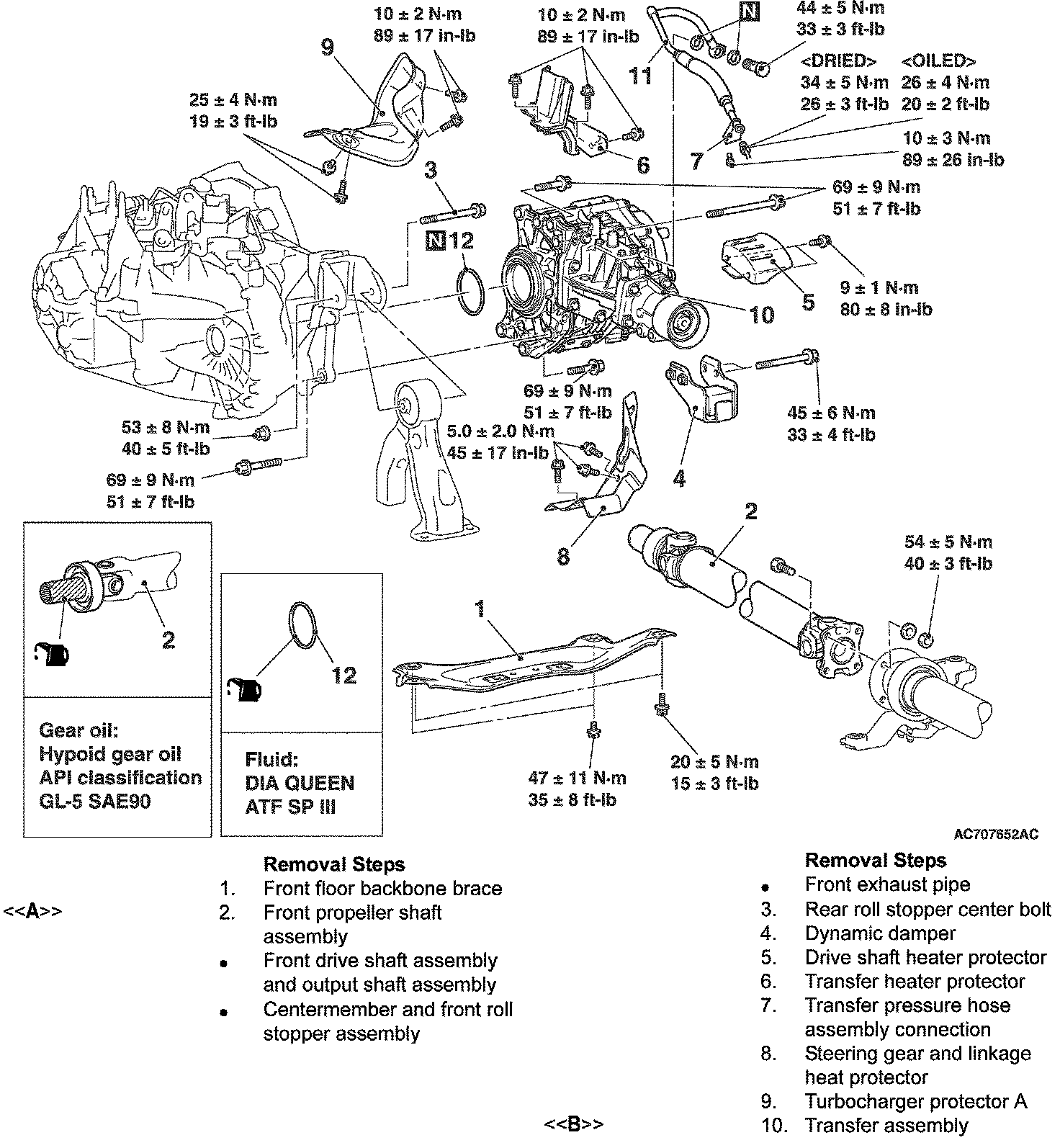

Removal Steps 1-10:

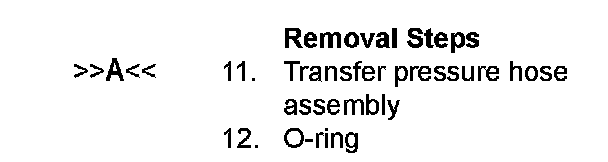

Removal Steps 11-12:

REMOVAL SERVICE POINT

[[A]] FRONT PROPELLER SHAFT ASSEMBLY REMOVAL

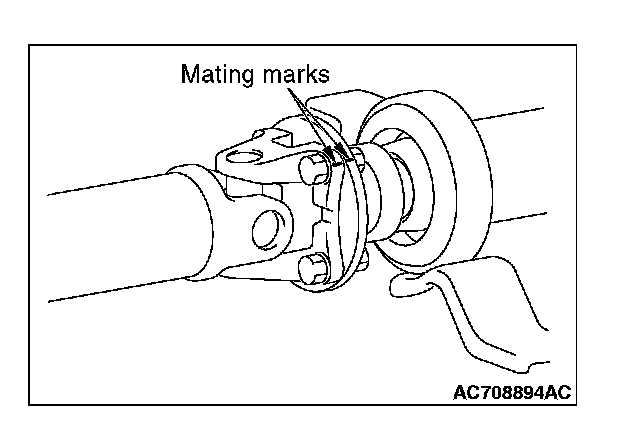

Make mating marks on the front propeller shaft assembly and companion flange, then remove the connecting nut.

[[B]] TRANSFER ASSEMBLY REMOVAL
Move the engine and transaxle assembly toward the front of the vehicle to create a gap between the engine/transaxle assembly and the crossmember. Pull out the transfer assembly through this gap.

INSTALLATION SERVICE POINT

]]A[[ TRANSFER PRESSURE HOSE ASSEMBLY INSTALLATION

CAUTION: When installing the transfer pressure hose assembly, use caution that the assembly does not interfere with surrounding components.
