Diagnosis Function
DIAGNOSTIC FUNCTIONWARNING INDICATOR

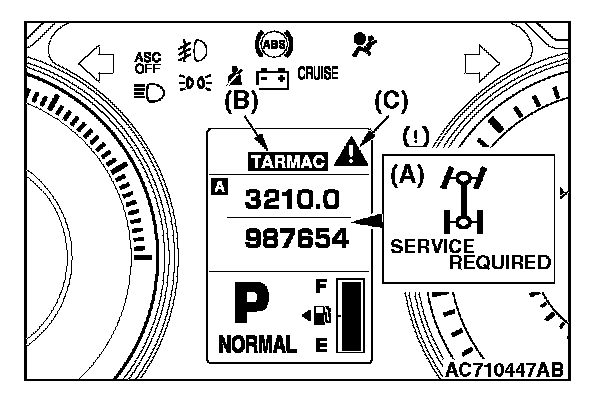

When a malfunction occurs in the S-AWC system, the figure (A) will be displayed on the information screen of multi information display, and the mode display (B) will be turned off.
Subsequently, the screen returns to the one before the warning display, and then "!" indicator (C) will illuminate.
If the indicator (C) continues to be displayed on the information screen of multi information display, check the diagnostic trouble code that is set.
FAIL-SAFE FUNCTION
If an abnormality occurs to the signal of sensors, switches, solenoids, or others, the AWC-ECU performs a control for the driver safety and system protection. The control contents are as follows.

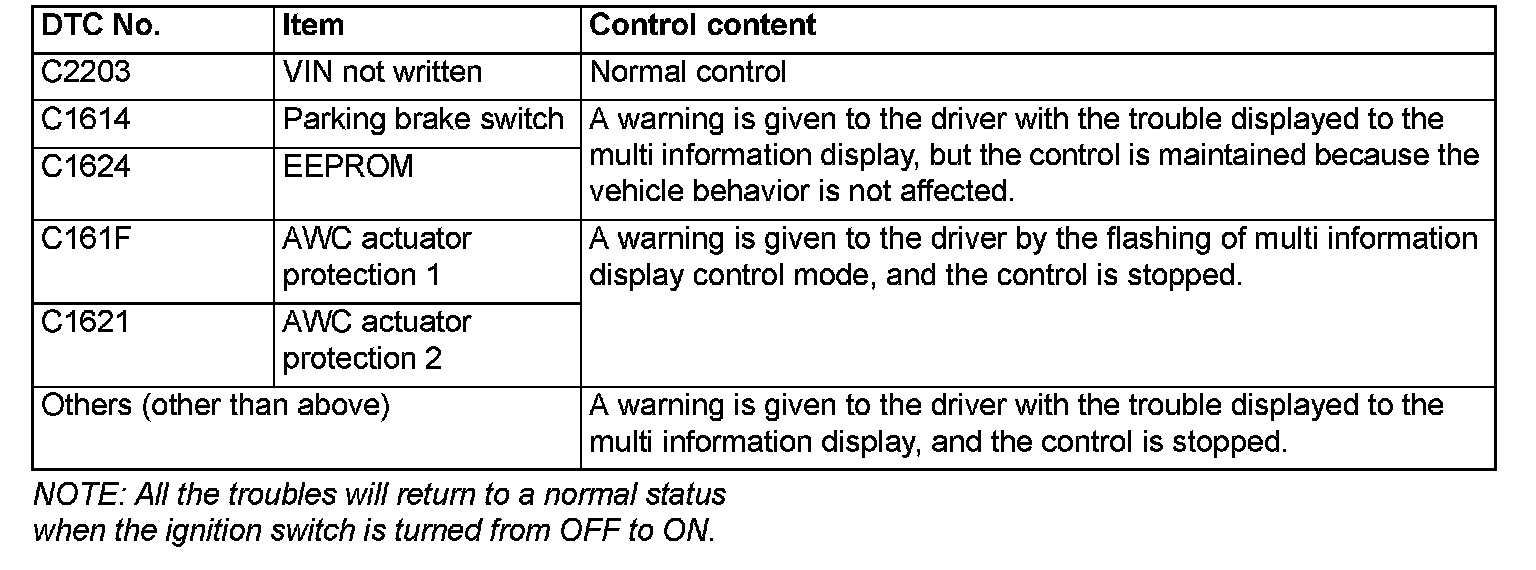

FAIL-SAFE REFERENCE TABLE
