Transmission Oil Replacement

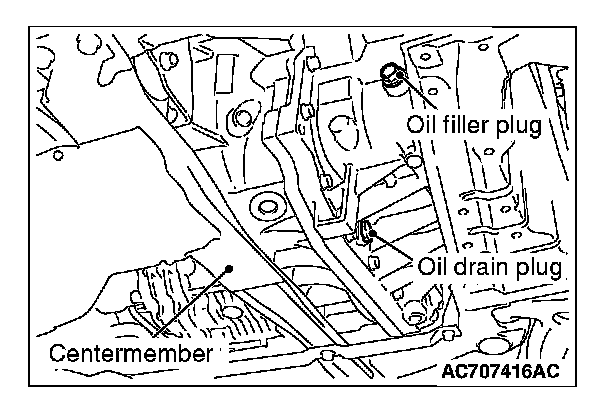

TRANSMISSION OIL CHANGE1. Remove the engine room under cover front B assembly.
2. Remove the oil drain plug and gasket to drain the oil.
3. Install the oil drain plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 2 ft-lb)

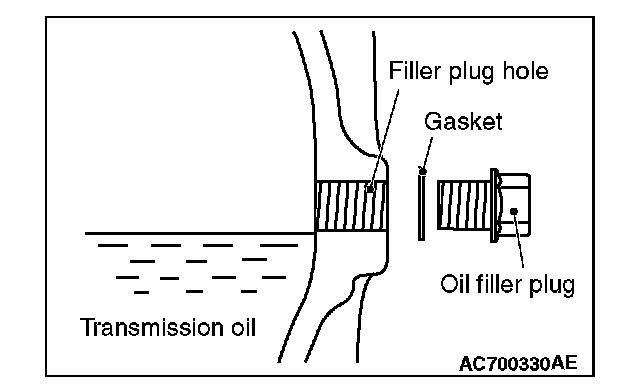

4. Remove the oil filler plug and gasket, then fill the oil up to the lower edge of the oil filler plug.
Brand name: Mitsubishi genuine Dia-Queen New Multi Gear Oil SAE 75W-80 API GL-3
Quantity: 2.5 am3 (2.6 quarts)
5. Install the oil filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
6. Install the engine room undercover front B assembly.
