Select Lever

SELECT LEVER

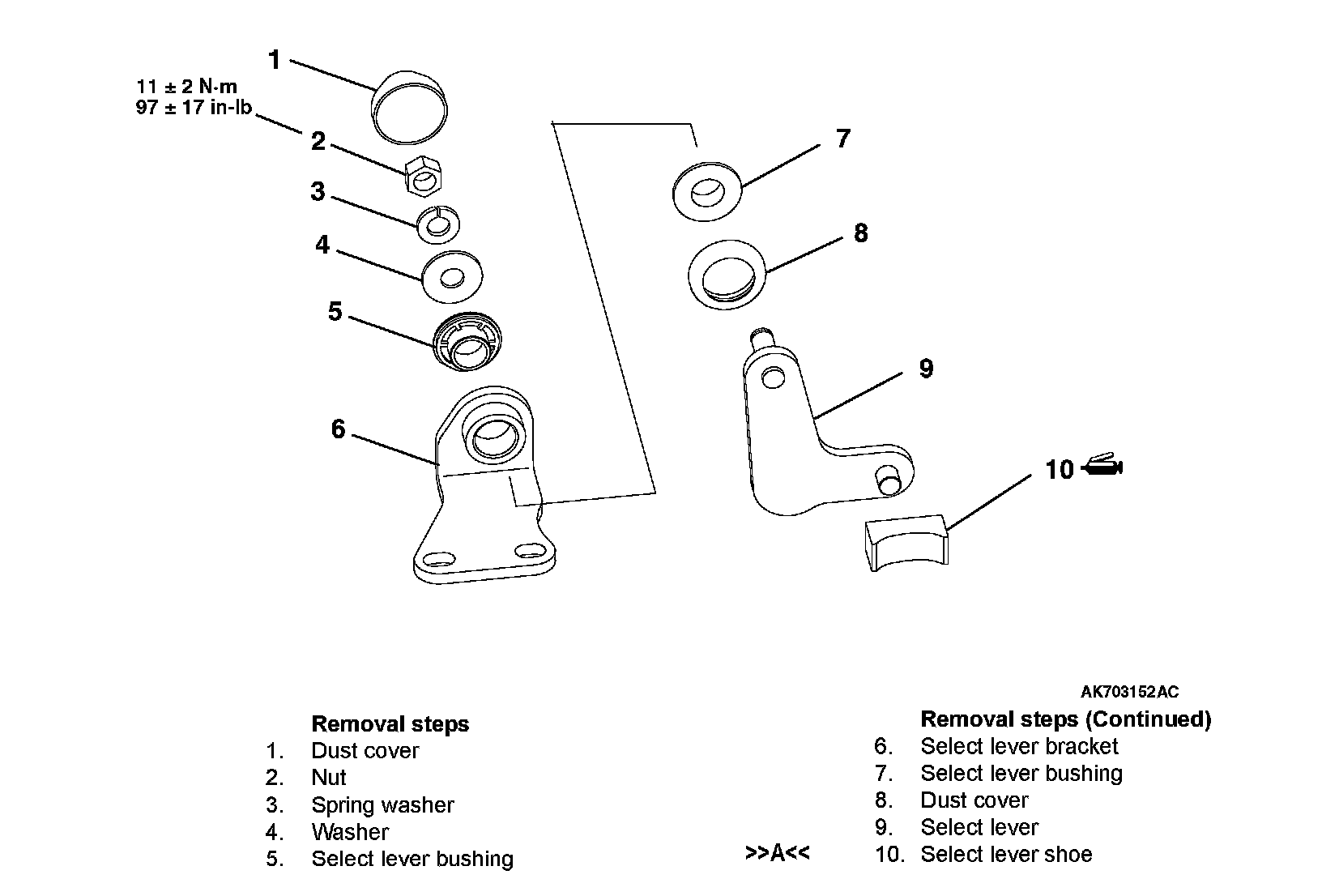

DISASSEMBLY AND ASSEMBLY





ASSEMBLY SERVICE POINTS

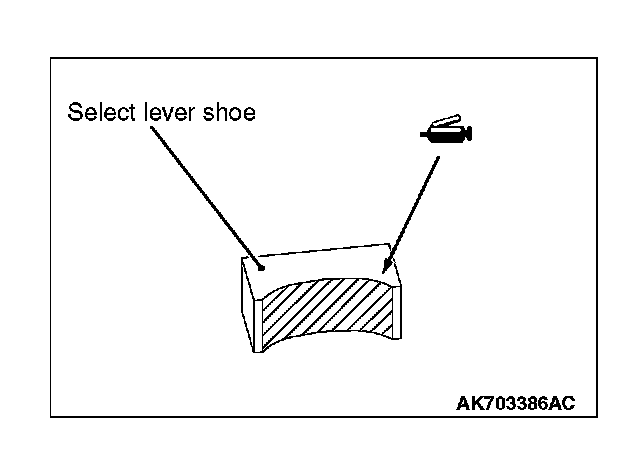

]]A[[ SELECT LEVER SHOE INSTALLATION





Apply specified grease to the sliding contact surface of the select lever shoe.

Specified grease:
Mitsubishi Part No. 0101011 or equivalent
