Drive/Propeller Shaft: Description and Operation

PROPELLER SHAFT

GENERAL INFORMATION
The 3-piece, 4-joint type propeller shaft with a center bearing is adopted. There are the following features.
^ For the joint Nos. 1, 2, and 4, the caulking type universal joint with excellent properties of balance accuracy is equipped.
^ For joint No. 3, the lightweight and compact LJ (Lebro Joint) is equipped.
^ The dual anti-vibration construction is located at the center bearing to vehicle body joint, reducing vibration (gear noise).
^ The heat protector is adopted to the center bearing bracket.
^ The lead-free grease is adopted for the universal joint and LJ (Lebro Joint).

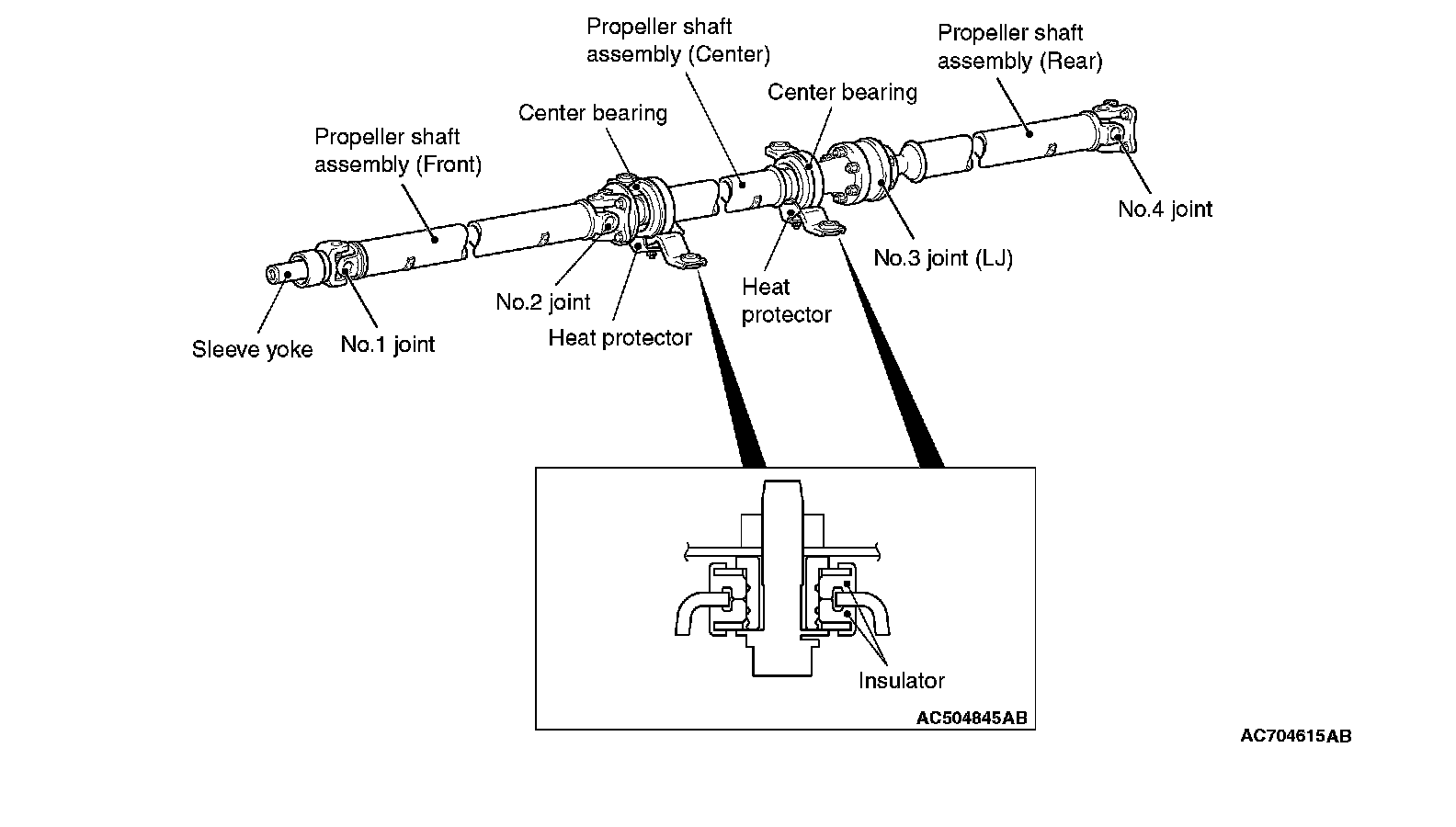

CONSTRUCTION DIAGRAM
