Removal and Replacement

HYDRAULIC UNIT

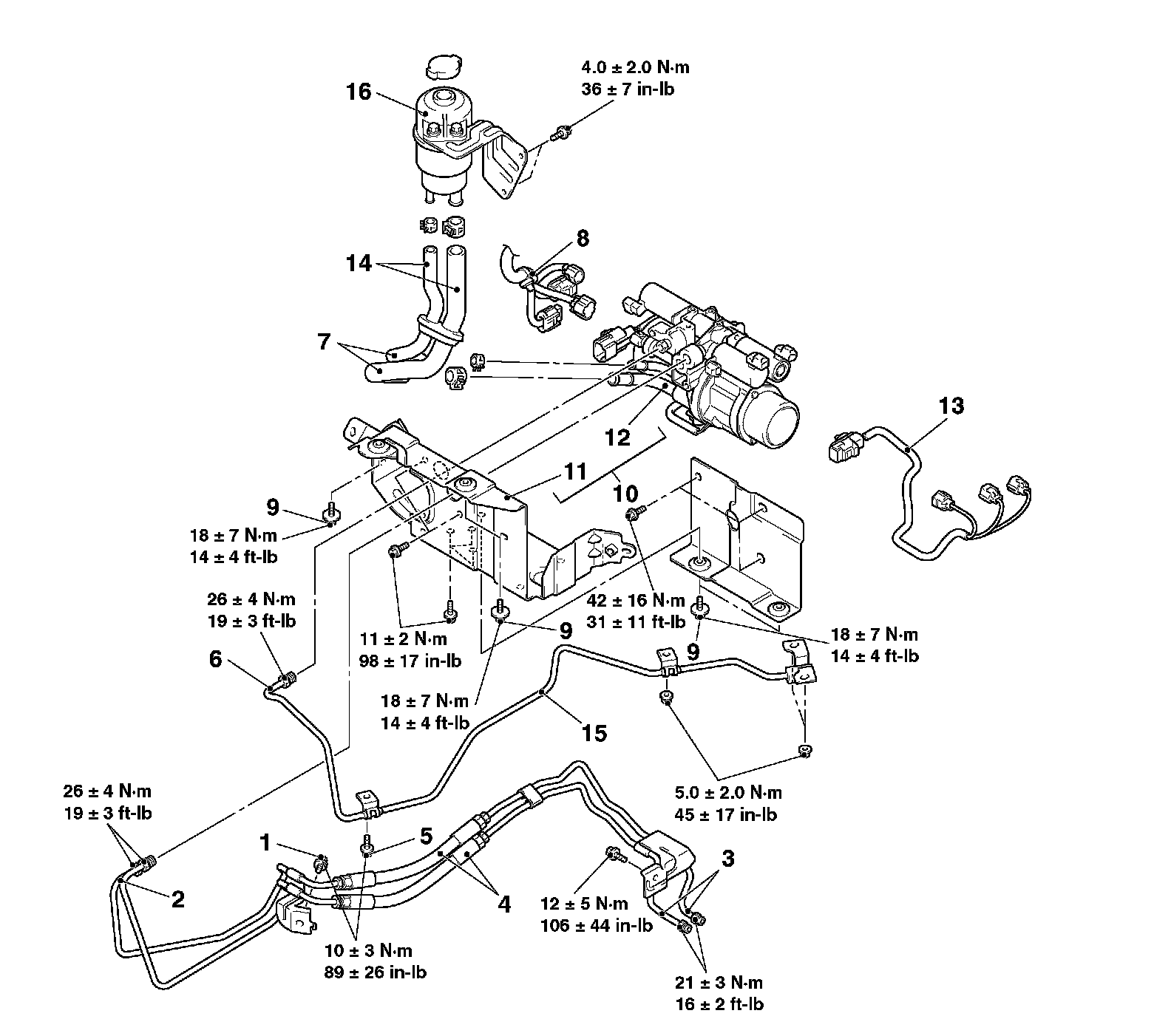

REMOVAL AND INSTALLATION

CAUTION:
^ When connecting the reservoir hose assembly, do not apply lubricant.
^ No foreign matter should be allowed in the hydraulic unit and hose connection part.

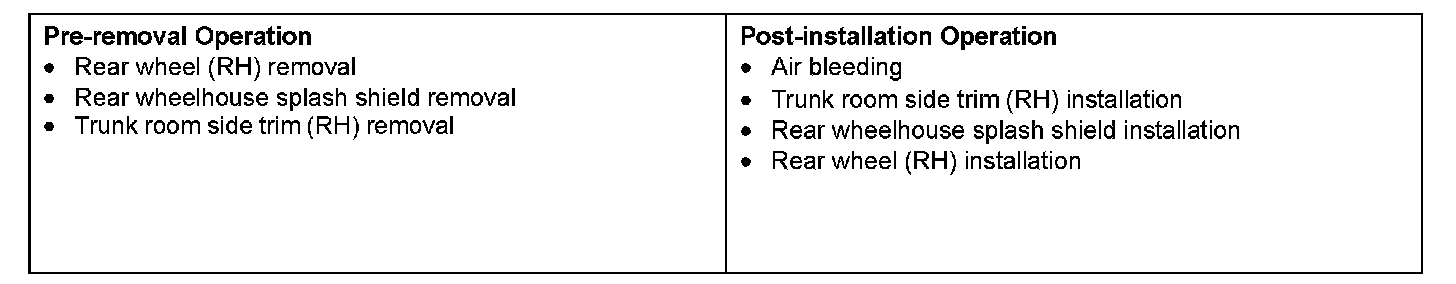

Pre-removal & Post-installation Operations:

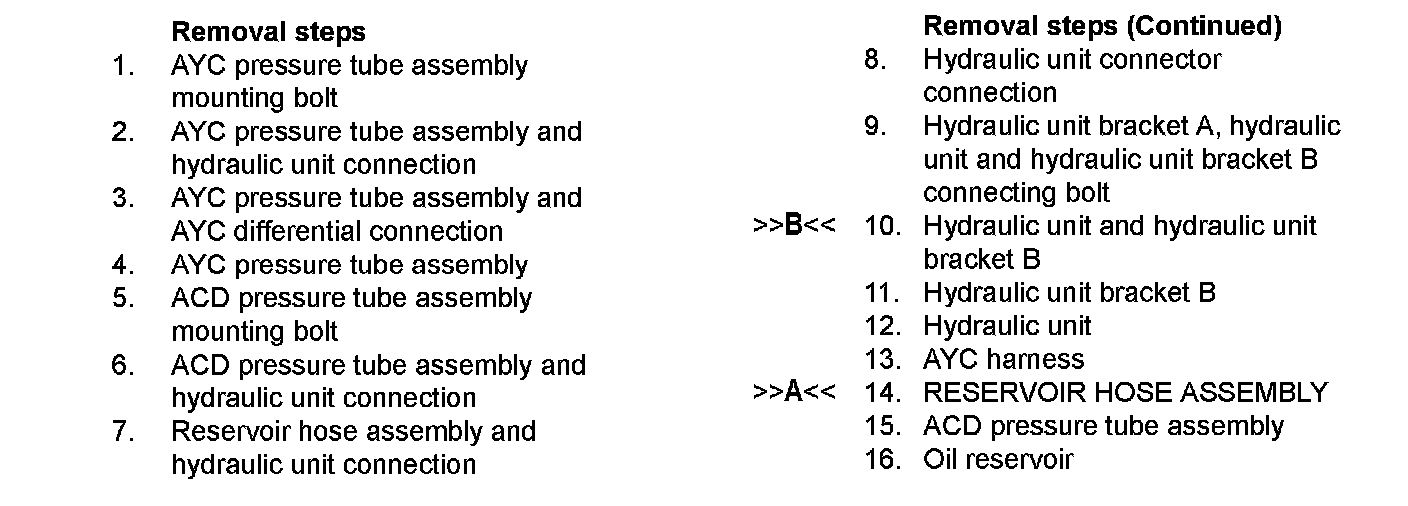

Removal Steps 1-16:

INSTALLATION SERVICE POINTS

]]A[[ RESERVOIR HOSE ASSEMBLY INSTALLATION





1. On the oil reservoir side, insert the hose to the position shown in the figure.
2. On the hydraulic unit side, insert the hose to the spool shown in the figure.

]]B[[ HYDRAULIC UNIT AND HYDRAULIC UNIT BRACKET B INSTALLATION

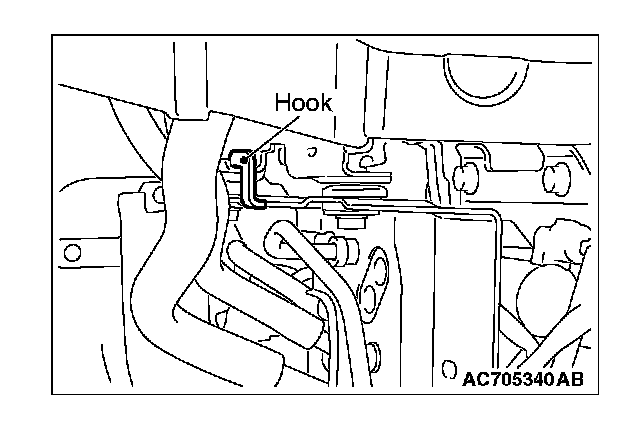

Insert the hook of hydraulic unit bracket B into the body-side bracket, and tighten the installation bolt.

HYDRAULIC UNIT DISPOSAL

CAUTION:
^ The hydraulic unit has its accumulator filled with a high-pressure gas. Never attempt to disassemble without breathing.
^ Never throw the accumulator into a fire. Also, never attempt to cut or weld it.
^ Do not drop or shock to the accumulator.
^ When drilling a hole in the accumulator, be sure to wear safety goggles since drill chips may blow out together with the gas.

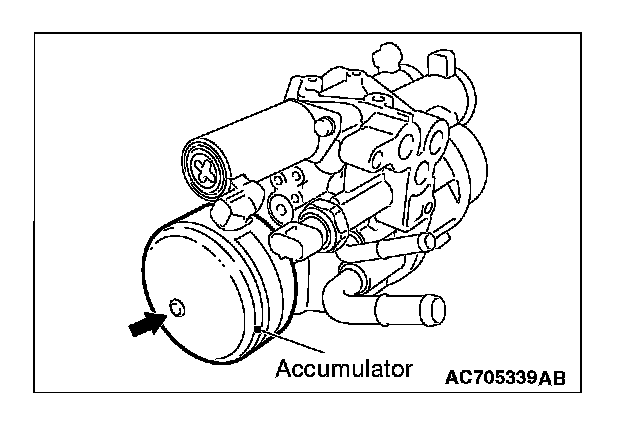

When discarding the hydraulic unit, make a hole on the accumulator as shown in the figure to release the gas, and then discard.
