Special Tools

SPECIAL TOOL

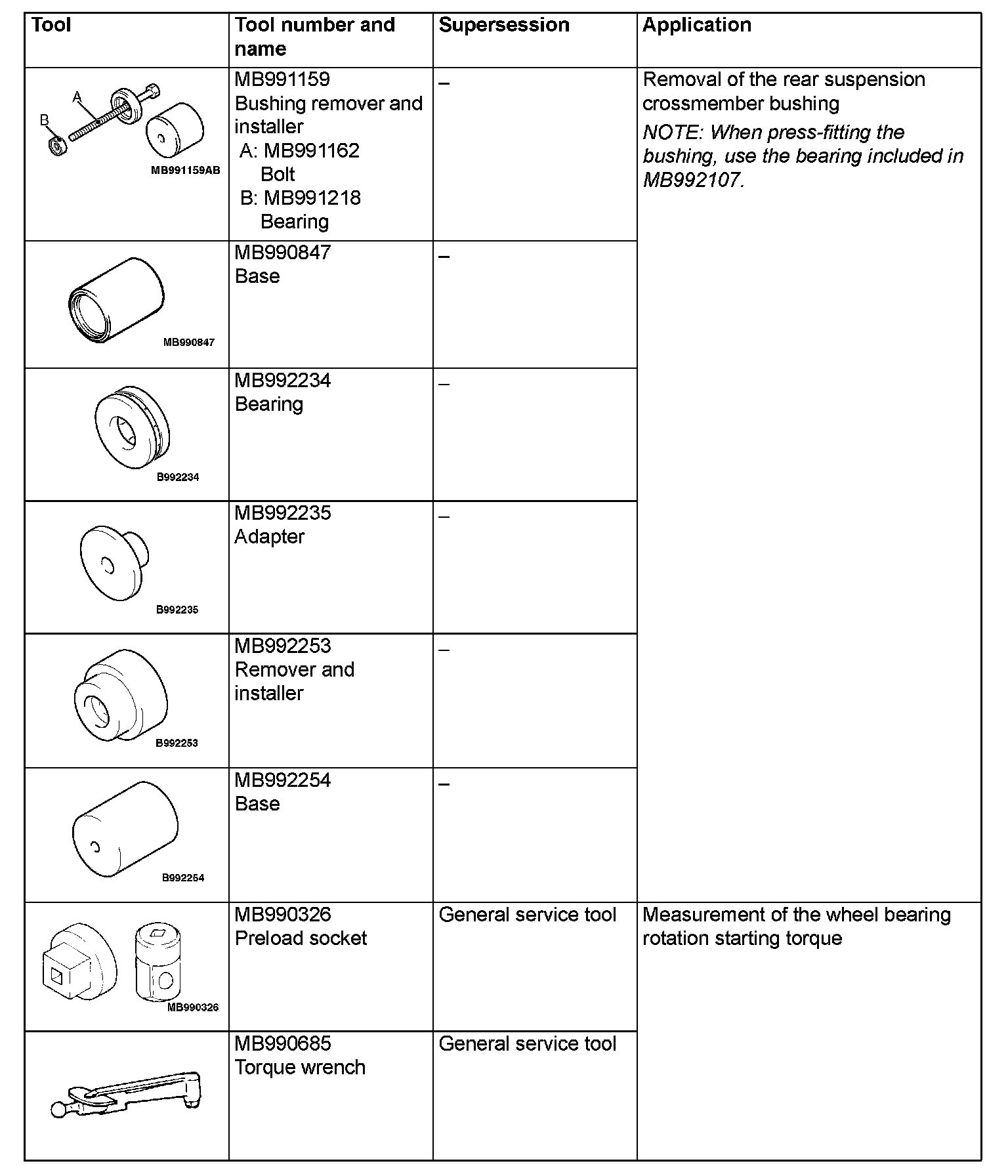

Part 1:

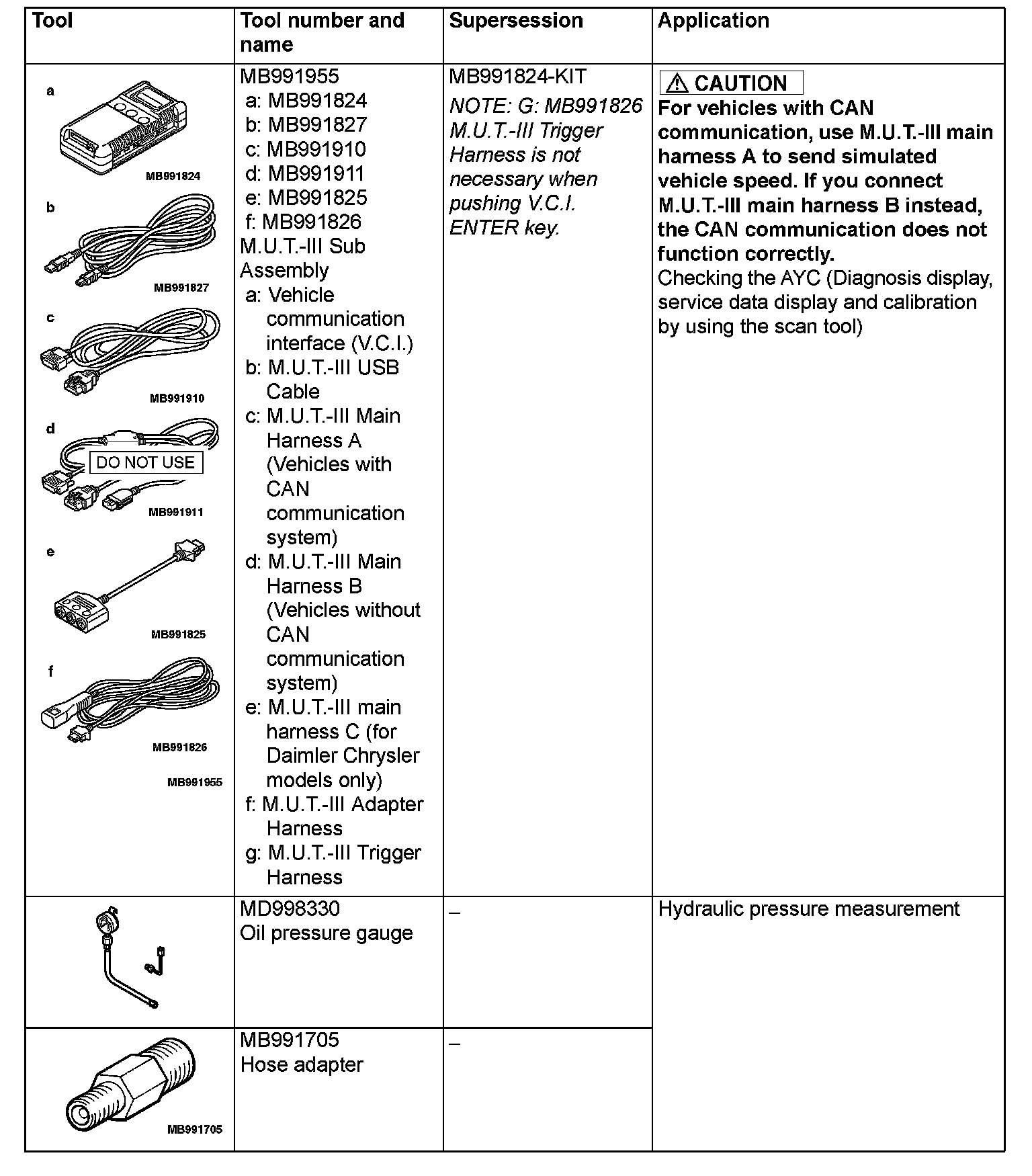

Part 2:

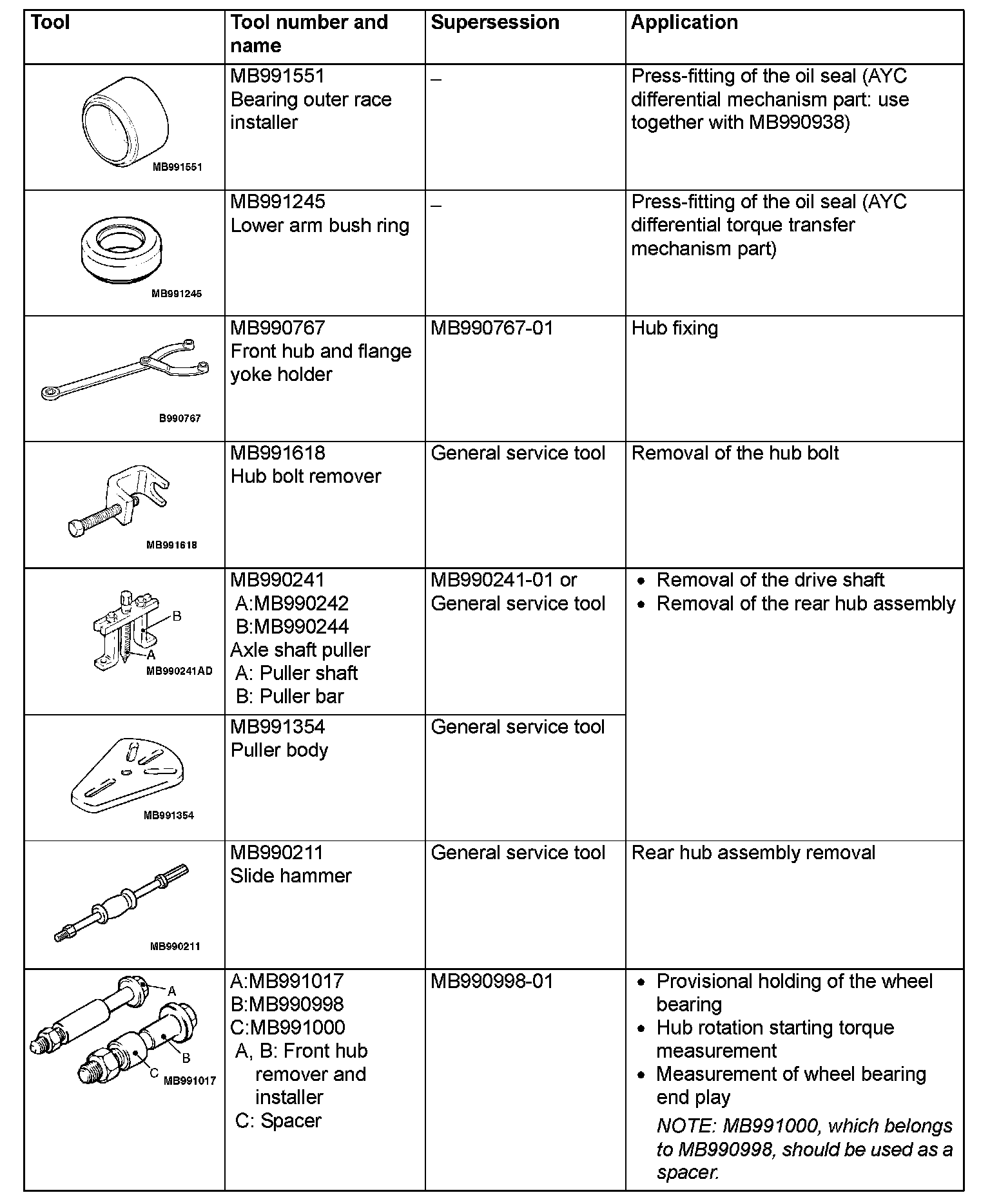

Part 3:

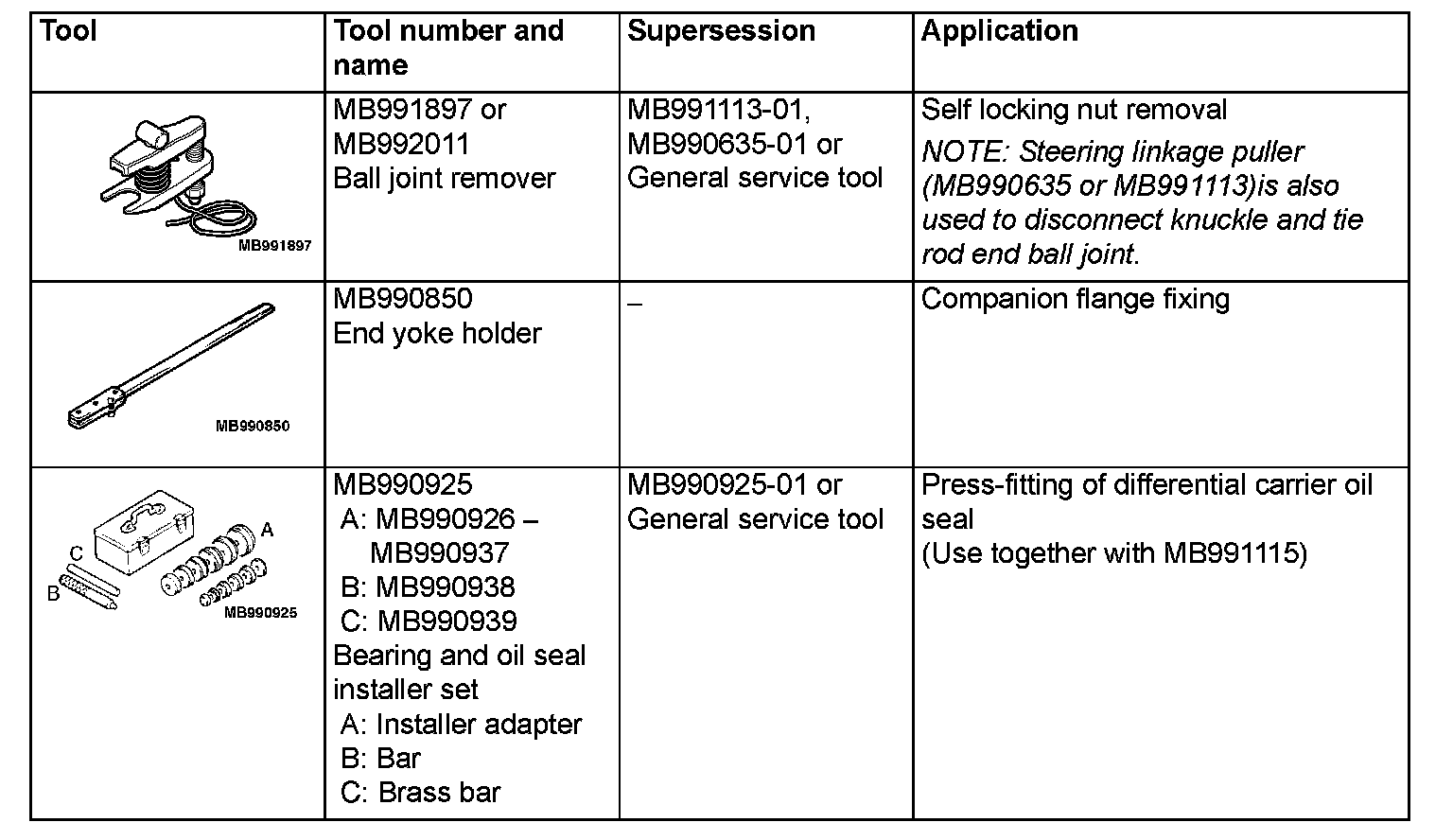

Part 4:

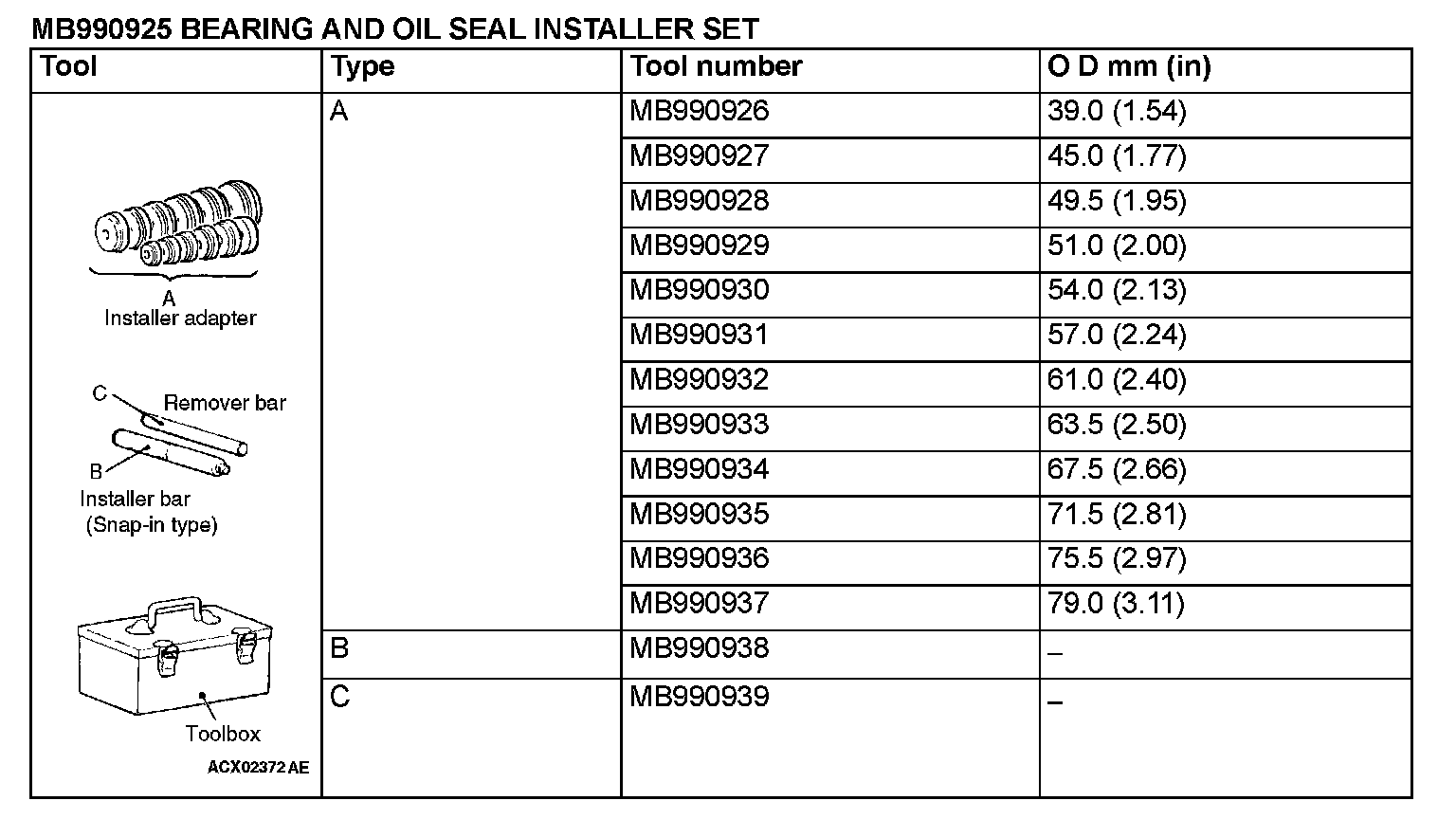

MB990925 BEARING AND OIL SEAL INSTALLER SET
