Removal and Replacement

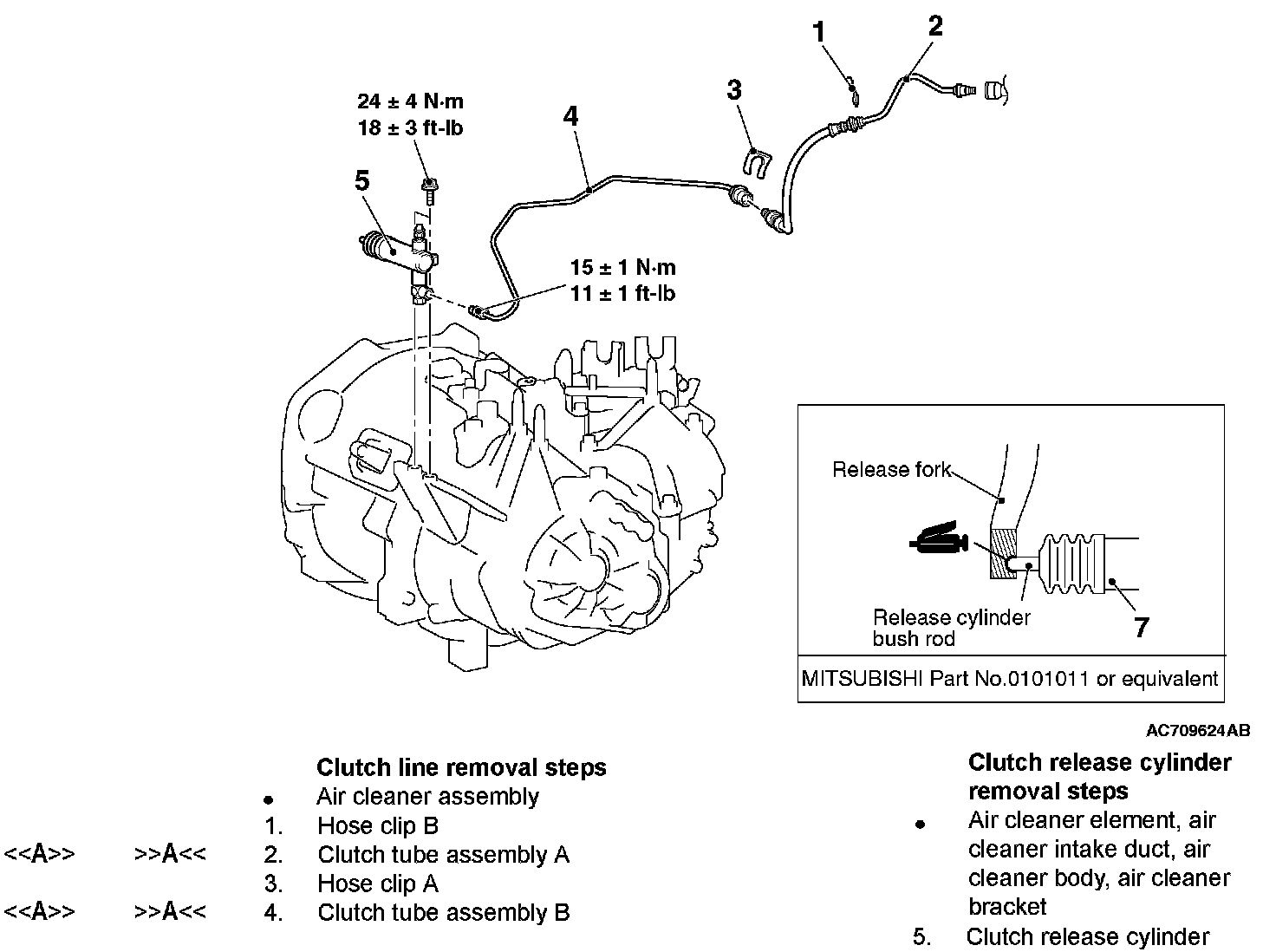

CLUTCH CONTROL

REMOVAL AND INSTALLATION

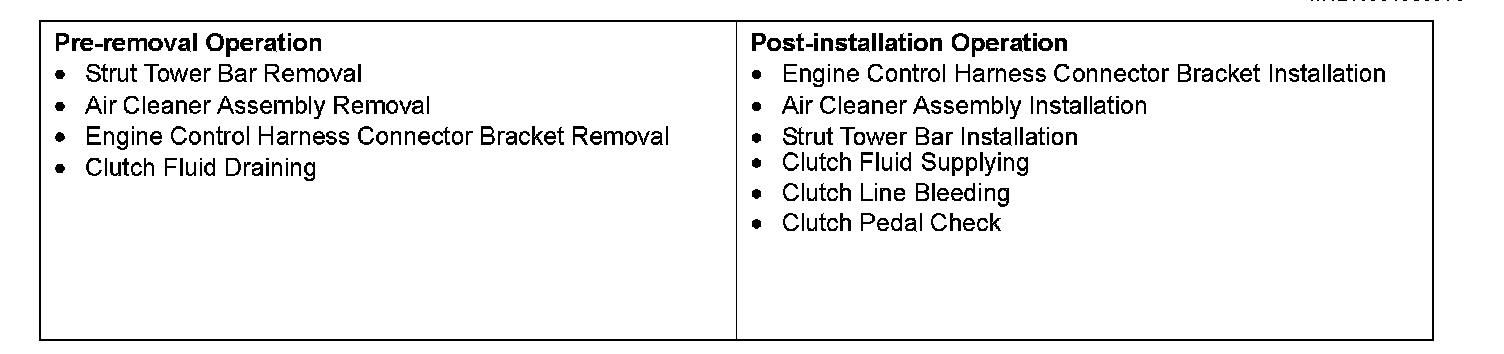

Pre-removal & Post-installation Operations:

REMOVAL SERVICE POINTS

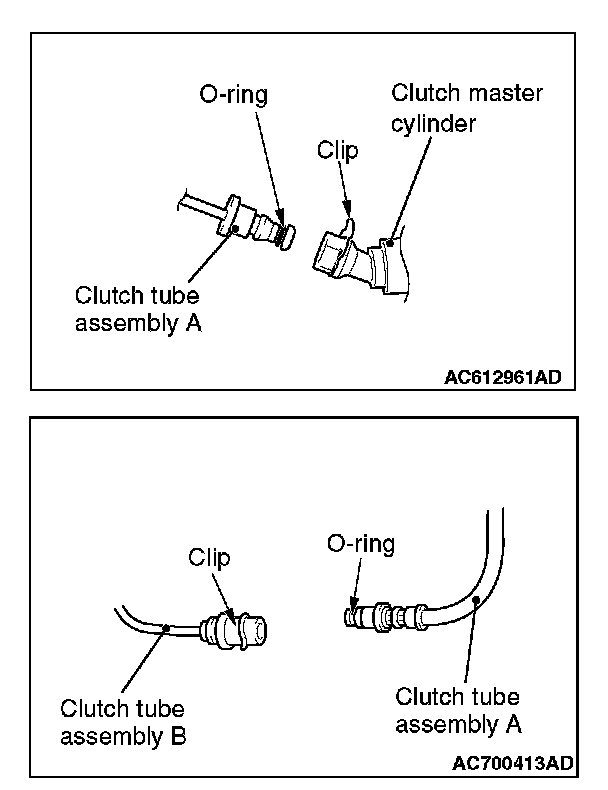

[[A]] CLUTCH TUBE ASSEMBLY DISCONNECTION





CAUTION:
^ Do not remove O-rings and clips from the clutch tube assembly and clutch master cylinder.
^ When the O-ring or clip is damaged, always replace the relevant clutch tube assembly or clutch master cylinder.

INSTALLATION SERVICE POINTS

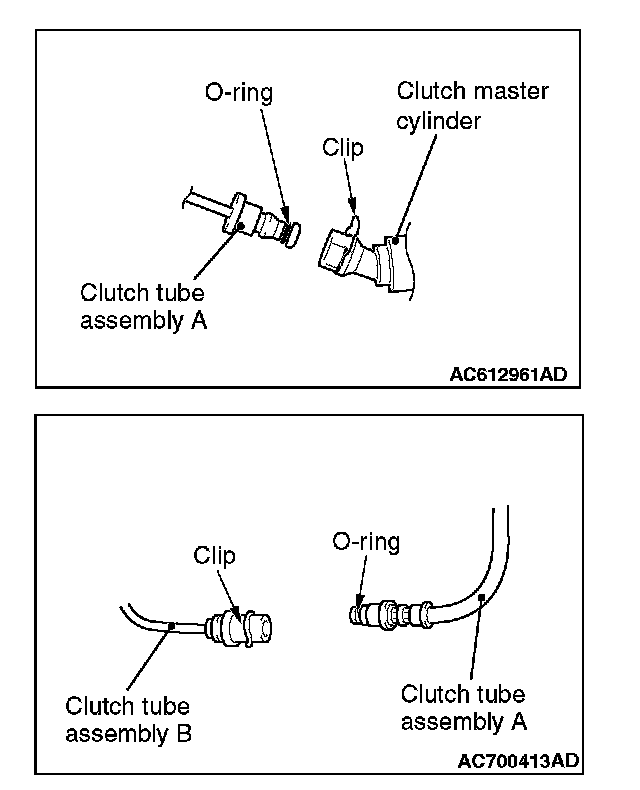

]]A[[ CLUTCH TUBE ASSEMBLY INSTALLATION





CAUTION:
^ When connecting each part, check that the O-ring and clip are not damaged.
^ If any connection area or O-ring is dirty, clean with the clutch fluid.

Assemble the clips to the clutch master cylinder and clutch tube assembly B. Then, connect the clutch tube assembly A.
