Twin Clutch-Sportronic Shift Transmission (TC-SST)

This article has been updated by Technical Service Bulletin 09-22-005 dated March of 2009.

FAIL-SAFE FUNCTION
If an abnormality occurs to the signal of sensors, switches, solenoids, or others, TC-SST-ECU performs a control for the driver safety and system protection. The control contents are as follows.

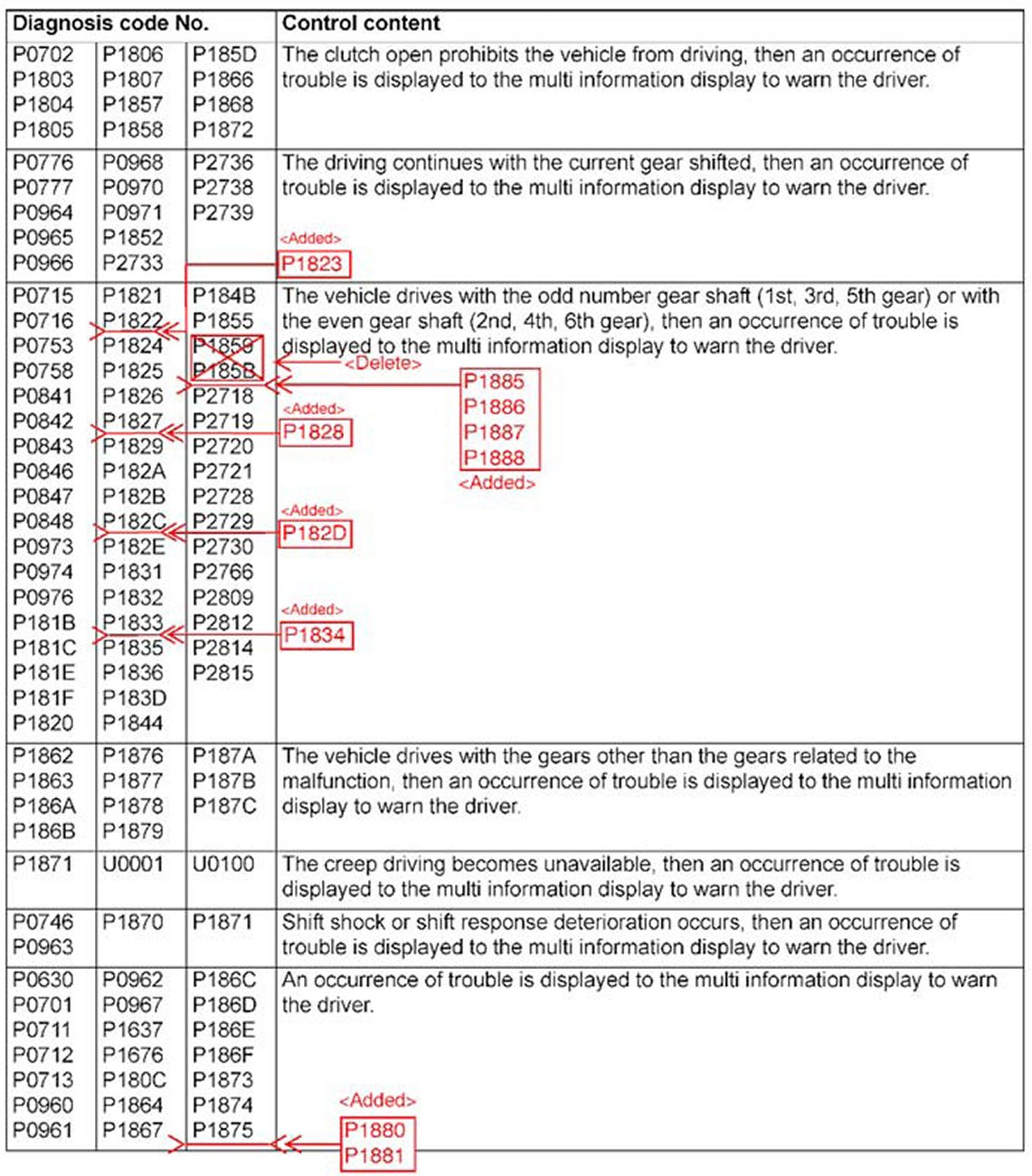

FAIL-SAFE REFERENCE TABLE
