Shift Interlock: Service and Repair

KEY INTERLOCK AND SHIFT LOCK MECHANISMS

REMOVAL AND INSTALLATION

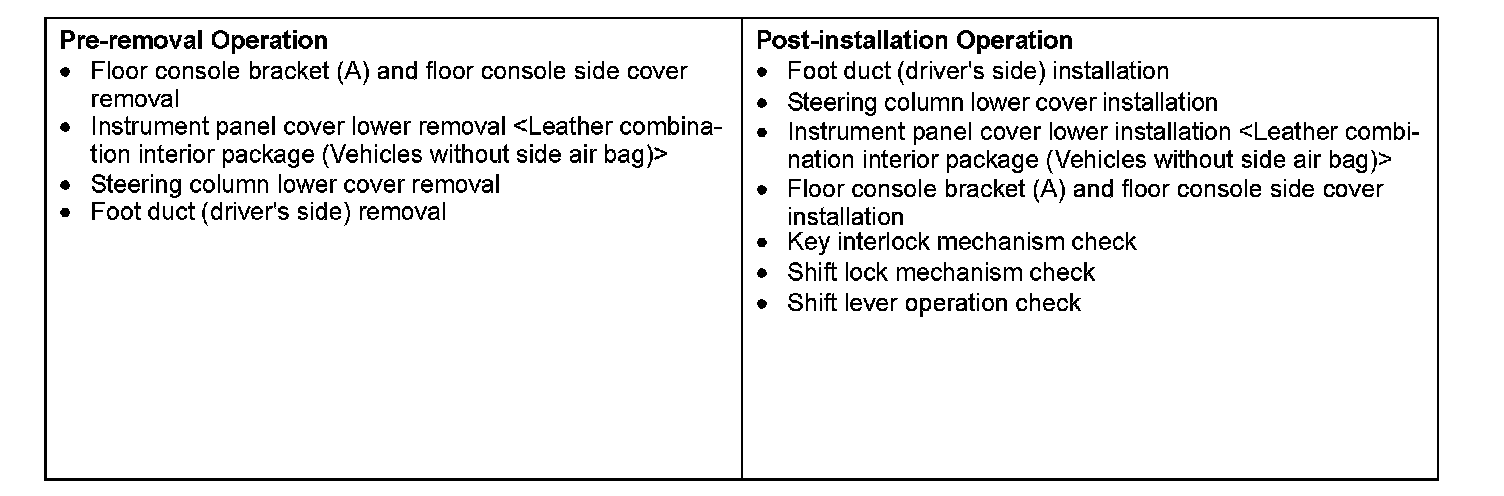

Pre-removal & Post-installation Operations:

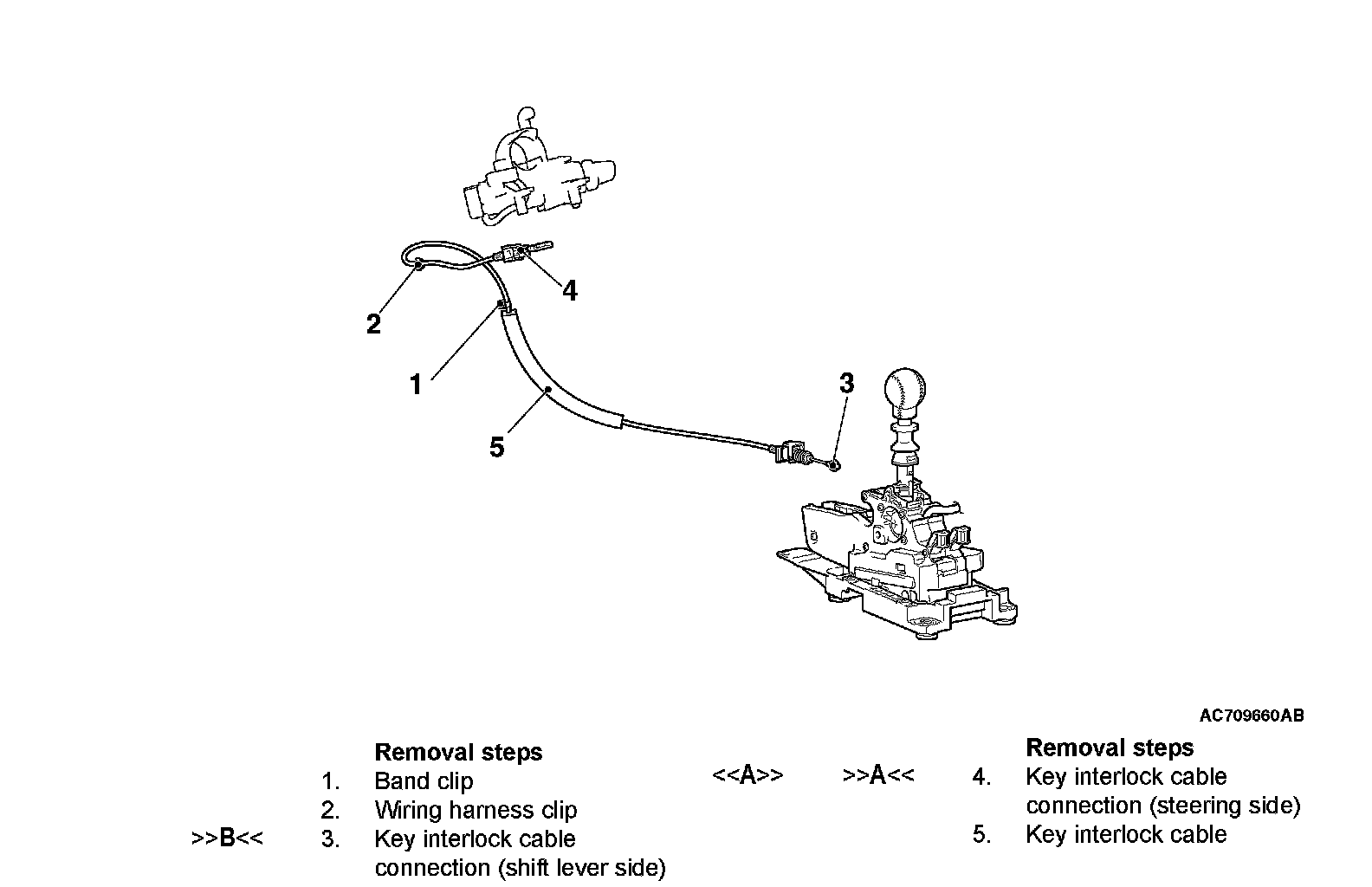

Removal Steps 1-5:

REMOVAL SERVICE POINTS

[[A]] KEY INTERLOCK CABLE (STEERING SIDE) REMOVAL
Turn the ignition switch to the ACC position and then pull the key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINTS

]]A[[ KEY INTERLOCK CABLE (STEERING SIDE) INSTALLATION
Turn the ignition switch to the ACC position and then install the key interlock cable to the ignition key cylinder.

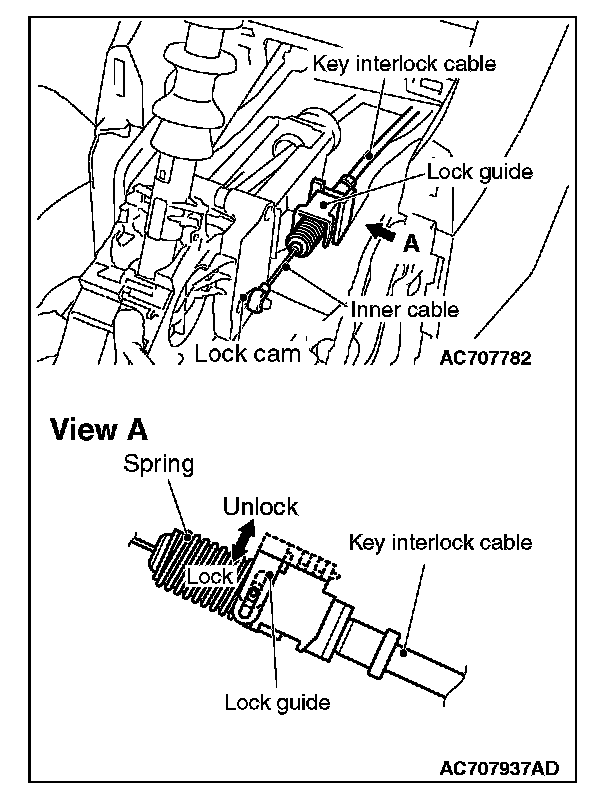

]]B[[ KEY INTERLOCK CABLE (SHIFT LEVER SIDE) INSTALLATION

CAUTION: Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.

1. Move the shift lever to the P position, and turn the ignition switch to the LOCK (OFF) position.





2. Install the tip of key interlock cable to the lock cam of shift lever assembly, using a caution not to twist the inner cable.
3. Install the adjuster case with its lock guide pulled up (unlocked).
4. Firmly push down the lock guide to lock it.

NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
