Wheels: Service and Repair
WHEEL RUNOUT CHECK

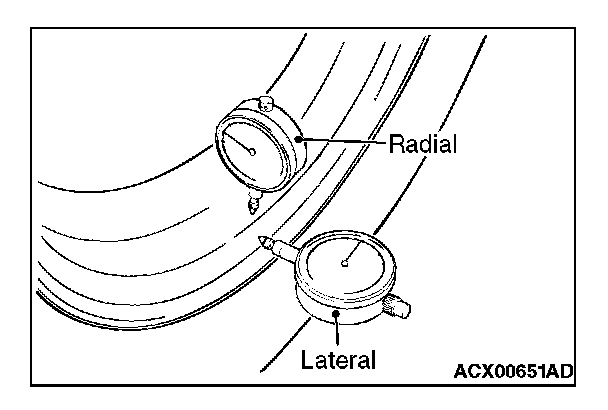

Jack up the vehicle so that the wheels are clear of the floor. While slowly turning the wheel, measure wheel runout with a dial indicator.

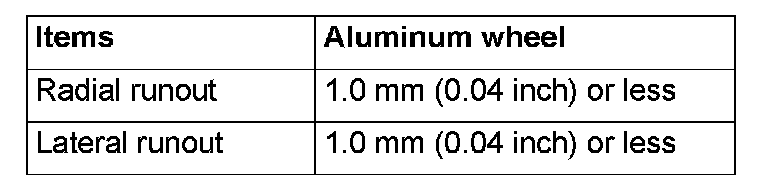

Limit:
If wheel runout exceeds the limit, replace the wheel.
Jack up the vehicle so that the wheels are clear of the floor. While slowly turning the wheel, measure wheel runout with a dial indicator.
Limit:
If wheel runout exceeds the limit, replace the wheel.
