Suspension - Revised Control Arm Securing Procedure

No.: TSB-08-33-001

Date: June, 2008

Model:
2008 Lancer Evolution

SUBJECT:
LOWER ARM ASSEMBLY SECURING BOLT CHANGED - SERVICE MANUAL REVISION

PURPOSE

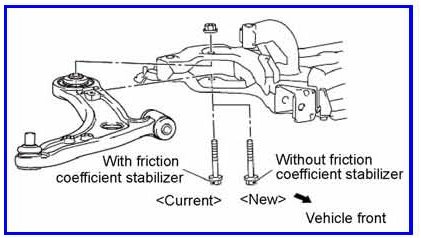

The bolt that secures the front lower suspension arm has been changed to eliminate the friction coated stabilizer. This Technical Service Bulletin advises the changes in the applicable Service Manual.

AFFECTED VEHICLE(S)
2008 Lancer Evolution

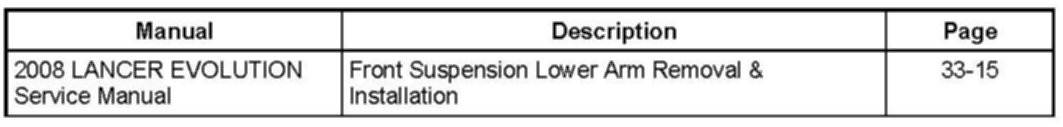

APPLICABLE MANUAL(S)

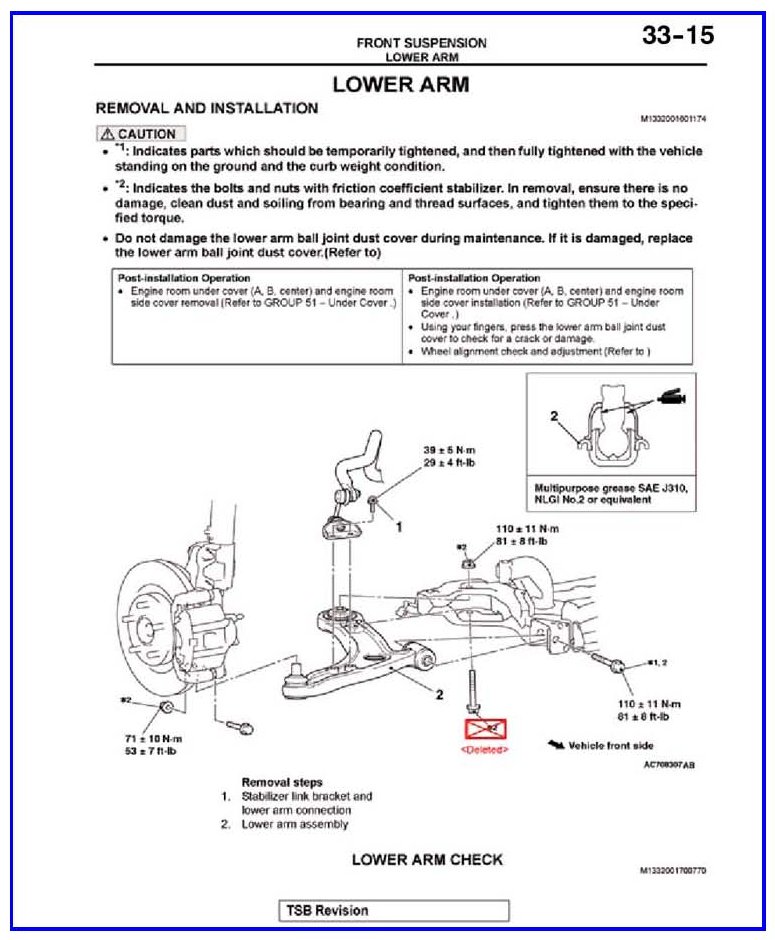

Updated Service Manual Page
