Removal and Installation

STRUT ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION: The part indicated by * is the bolt/nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.

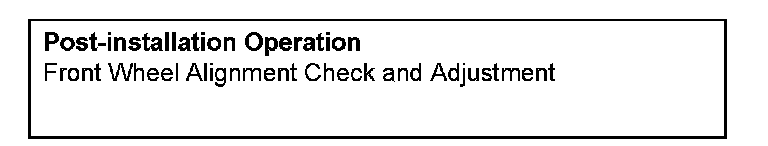

Post-installation Operation:

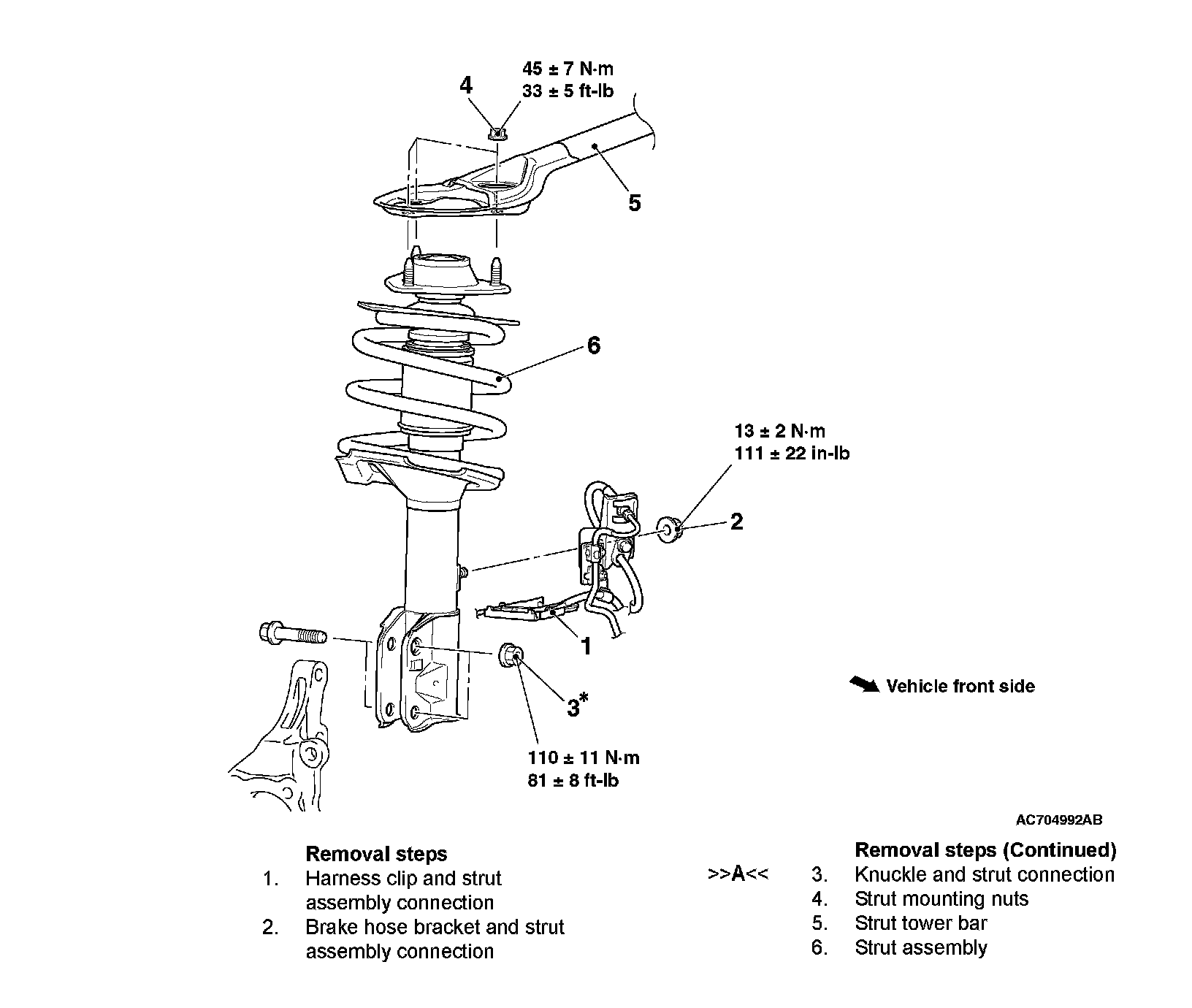

Removal Steps 1-6:

INSTALLATION SERVICE POINTS

]]A[[ KNUCKLE AND STRUT ASSEMBLY CONNECTION BOLT INSTALLATION

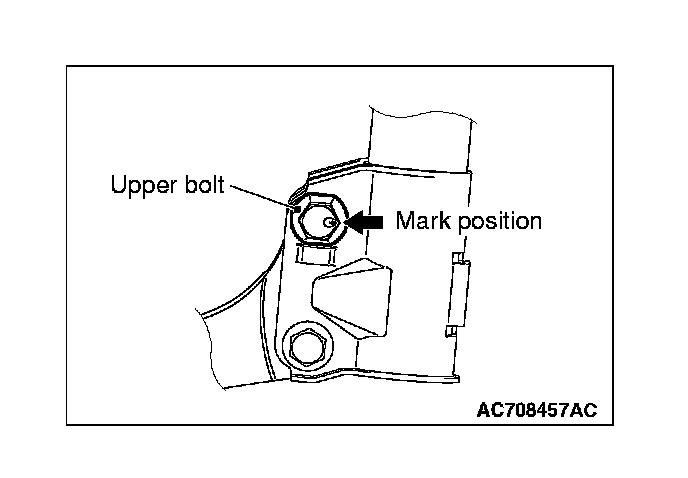

Locate the knuckle and strut assembly upper connection bolt's marking position as shown in the figure and tighten it.
