Rear Suspension
SHOCK ABSORBER ASSEMBLYDISASSEMBLY AND ASSEMBLY

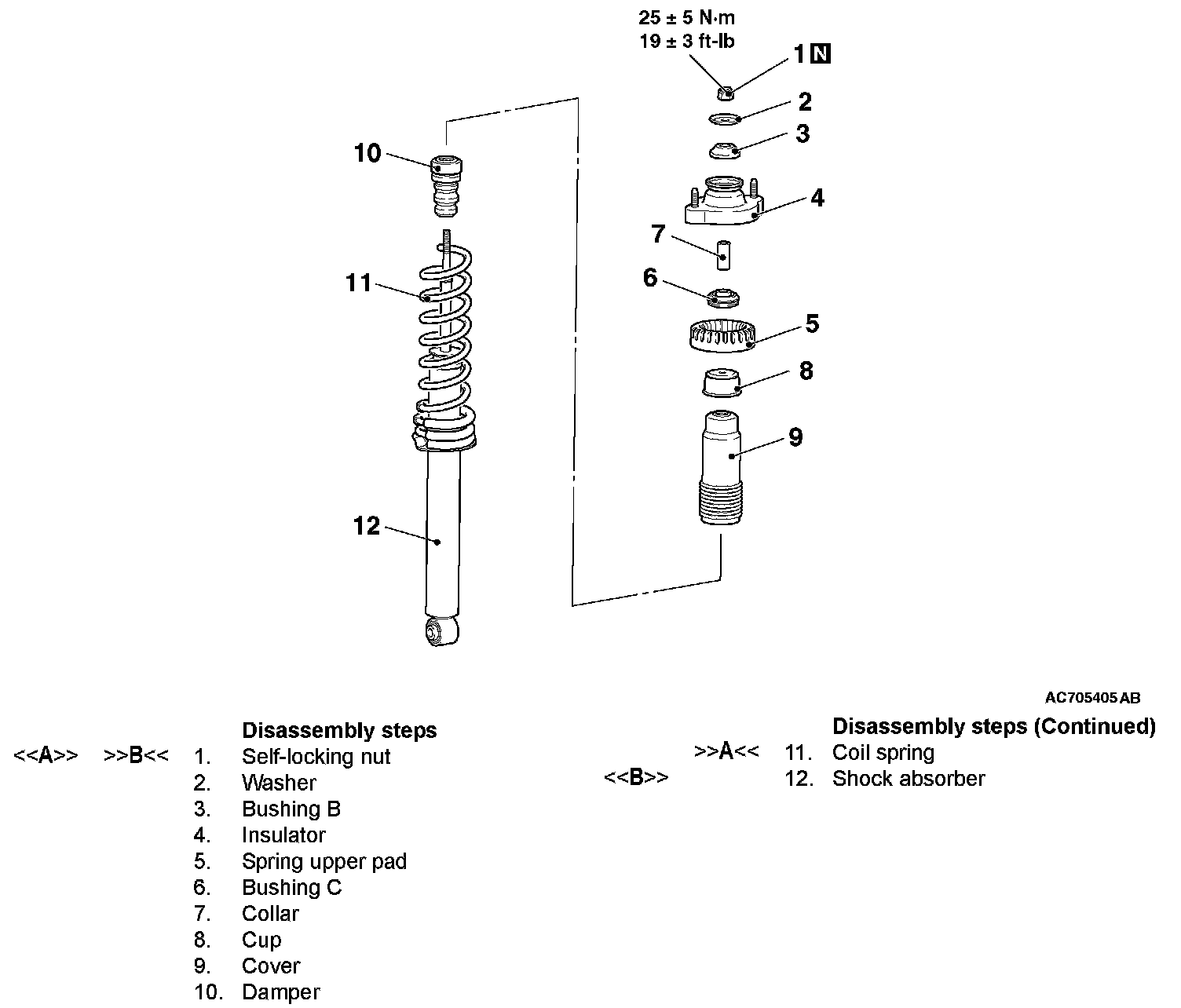

Disassembly Steps 1-12:
Required Special Tools:
^ MB991793: Spring compressor
^ MB991796: Attachment B
^ MB991794: Upper plate
^ MB991830: Fixture
DISASSEMBLY SERVICE POINTS
[[A]] SELF-LOCKING NUT REMOVAL
CAUTION: The locking nut for the piston rod inside the shock absorber may be loose. Do not use an impact wrench to loosen the self-locking nut.

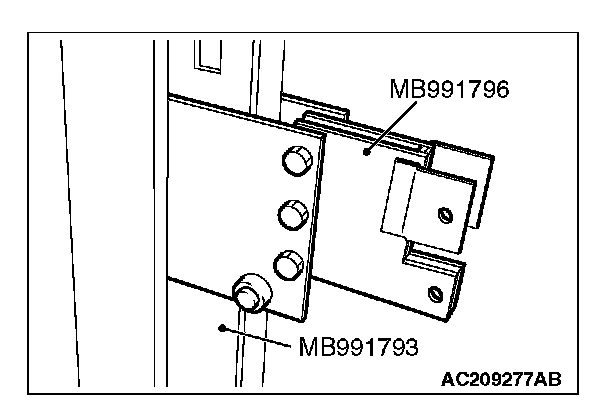

1. Install the special tool MB991796 to the special tool MB991793 as shown in the figure.

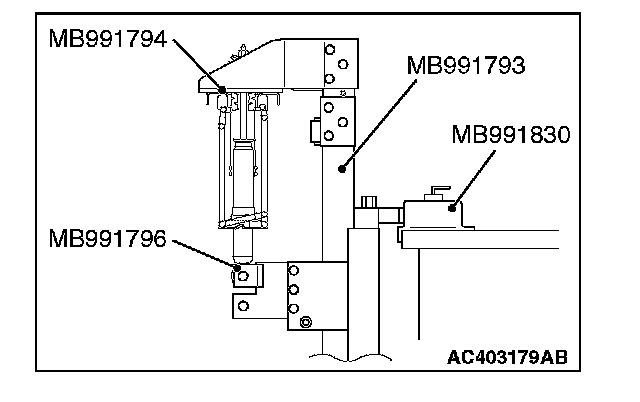

2. Set the strut assembly to special tools: MB991793, MB991796, MB991794 and MB991830.
NOTE: Use the bolts and nuts removed from the vehicle to secure the shock absorber assembly and tighten them lightly by hand.
3. After setting the shock absorber assembly, operate the spring compressor and compress the coil spring by approximately 5 mm (0.20 in).

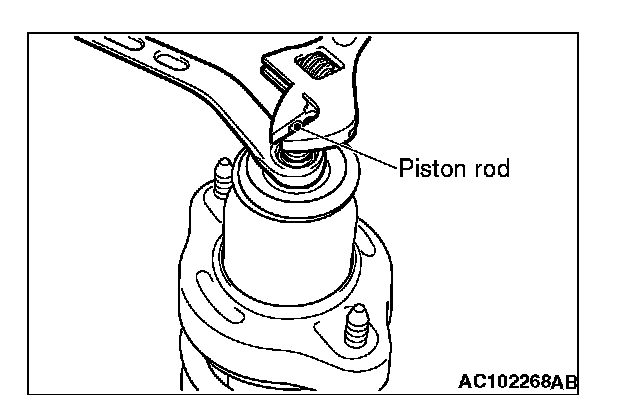

4. While holding the piston rod as shown in the figure, remove the self-locking nut.
[[B]] SHOCK ABSORBER DISPOSAL PROCEDURES
CAUTION: Wear the protective glasses. Although the gas is harmless, drilling chips may be blown out by the gas.

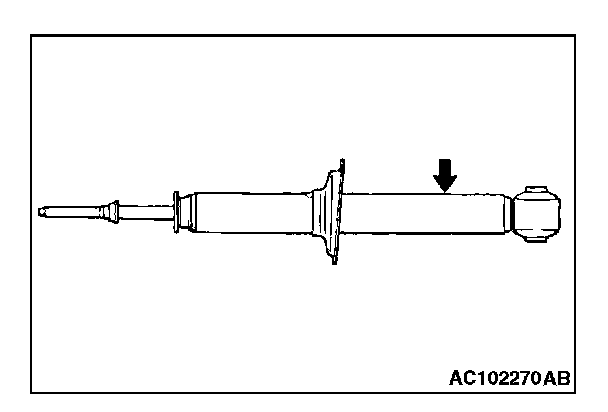

Before disposal of the shock absorber, place the shock absorber on the level surface with the piston rod extended, and make a hole of approximately 3 mm (0.12 in) in diameter at the point shown in the figure to discharge the gas.
ASSEMBLY SERVICE POINTS
]]A[[ COIL SPRING INSTALLATION

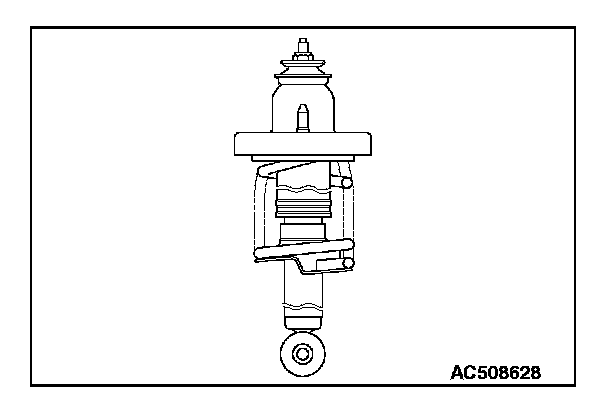

1. Install the coil spring end as shown in the figure, so that it should face the vehicle rearward.

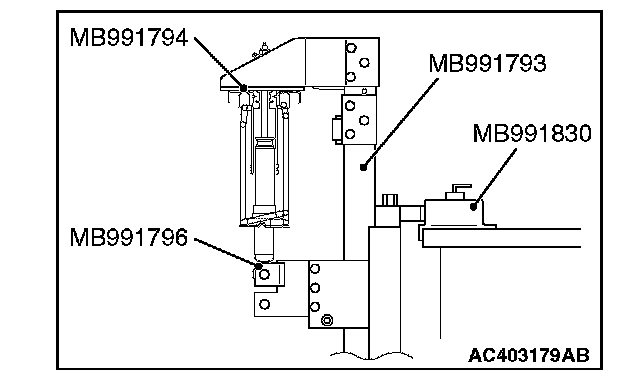

2. Set the shock absorber to special tools: MB991793, MB991796, MB991794 and MB991830 and slowly compress the coil spring while guiding the shock absorber piston rod through the hole on the upper spring bracket by hand:
NOTE: Use the bolts and nuts removed from the vehicle to secure the shock absorber assembly and tighten them lightly by hand.
]]B[[ SELF-LOCKING NUT INSTALLATION
CAUTION: The locking nut for the piston rod inside the shock absorber may be loose. Do not use an impact wrench to tighten the self-locking nut.

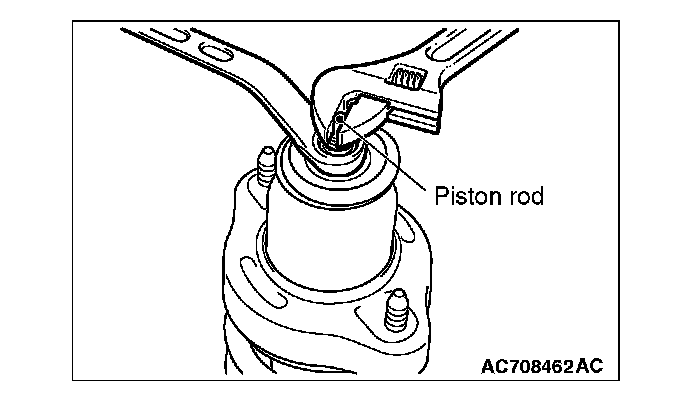

Counter the piston rod of the shock absorber as shown in the figure, and tighten the self-locking nut to the specified torque.
Tightening torque: 25 ± 5 Nm (19 ± 3 ft-lb)
