Power Steering Pump: Service and Repair
POWER STEERING OIL PUMP ASSEMBLYREMOVAL AND INSTALLATION

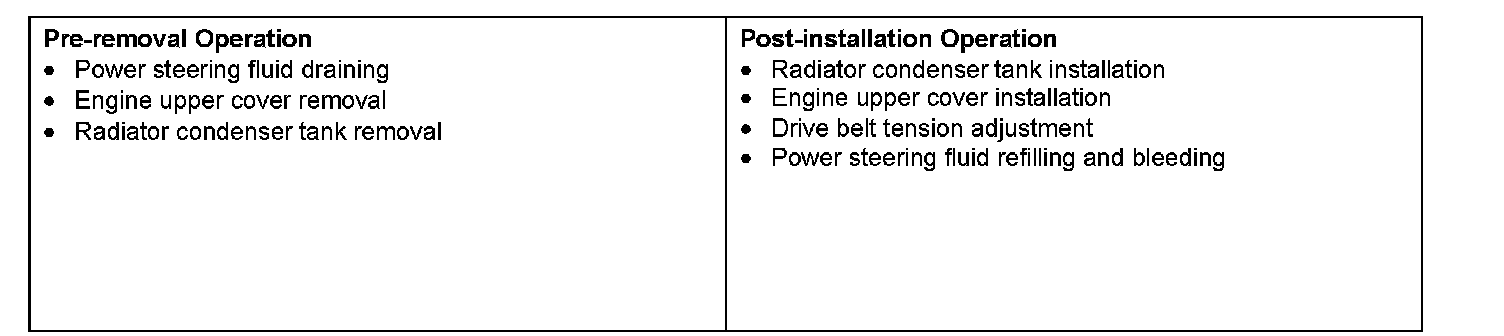

Pre-removal & Post-installation Operations:

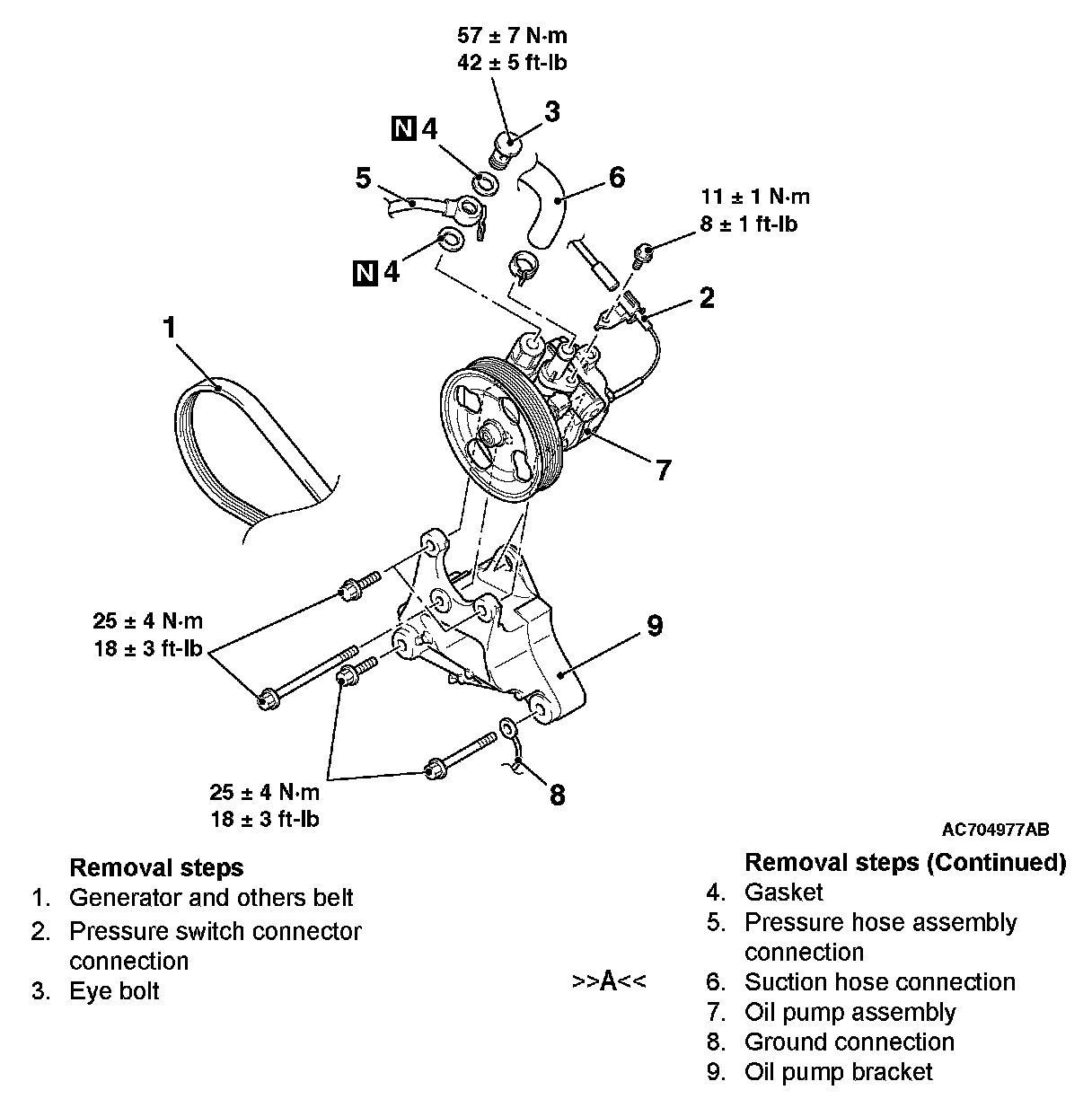

Removal Steps 1-9:
INSTALLATION SERVICE POINT

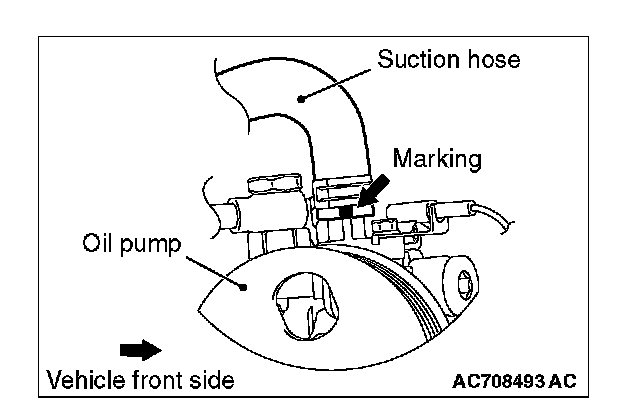

]]A[[ SUCTION HOSE INSTALLATION
Install the suction hose with its marking located as shown in the figure.
