Removal and Replacement

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

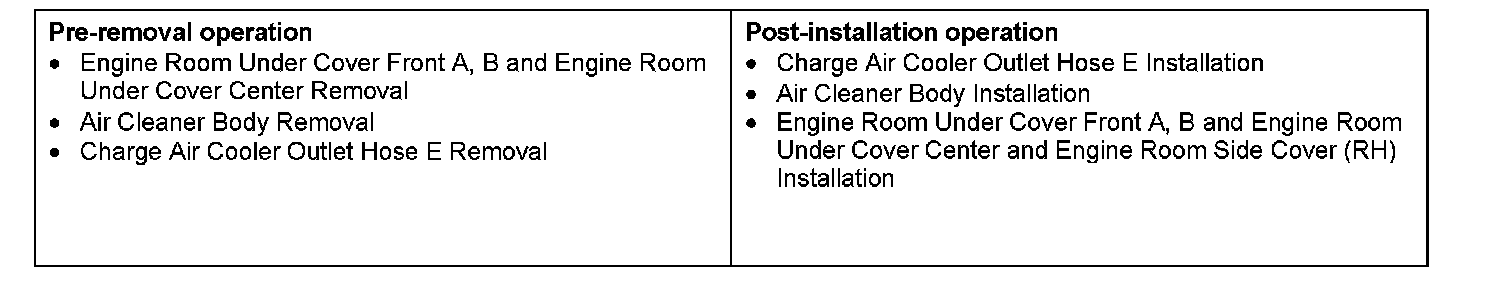

Pre-removal & Post-installation Operation:

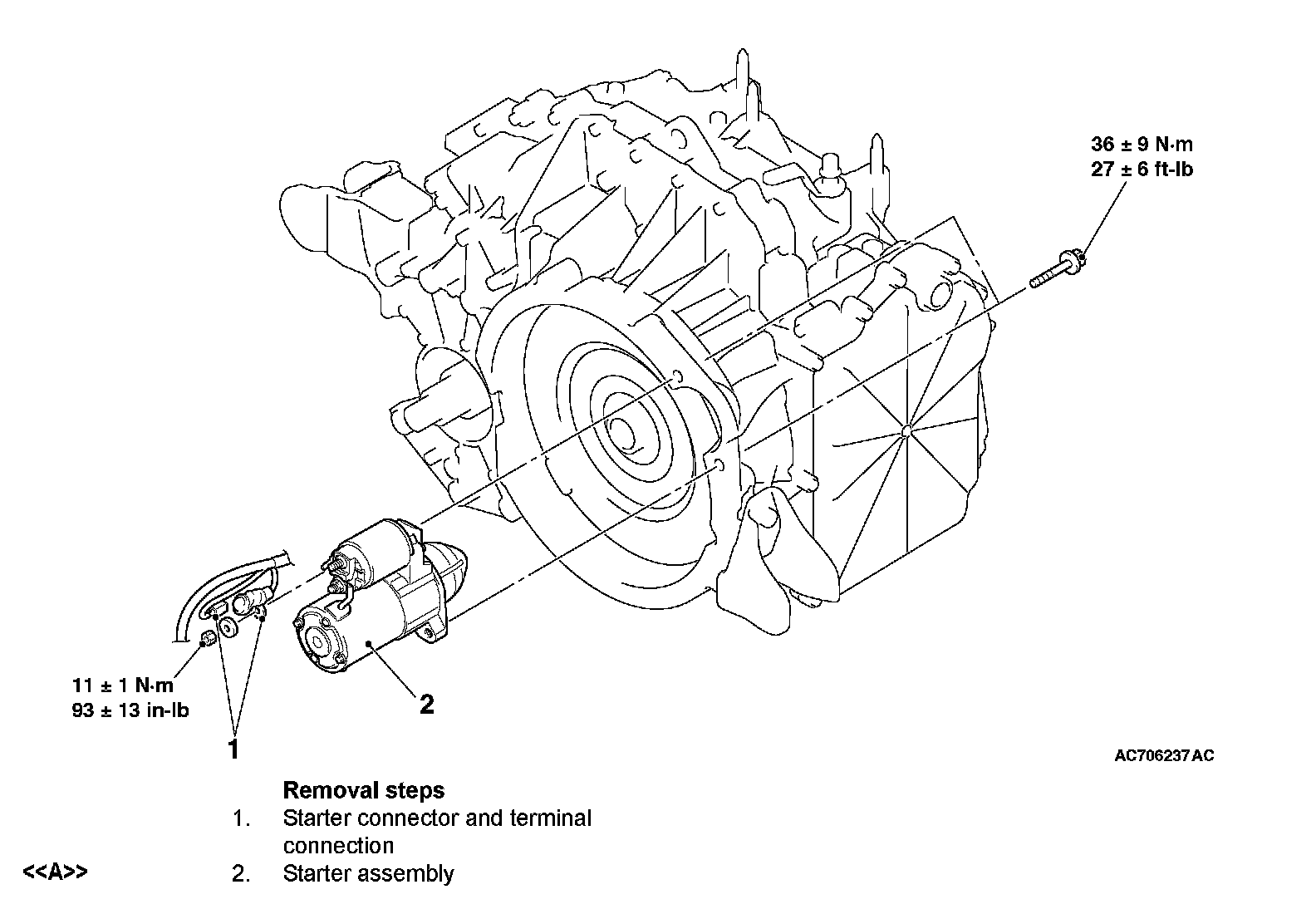

Removal Steps 1-2:

REMOVAL SERVICE POINT

[A] STARTER ASSEMBLY REMOVAL
Remove the starter assembly from the lower front of the engine.
