Removal and Replacement

REMOVAL AND INSTALLATION

BATTERY

WARNING: When installing the battery, securely connect the exhaust battery cover hose.

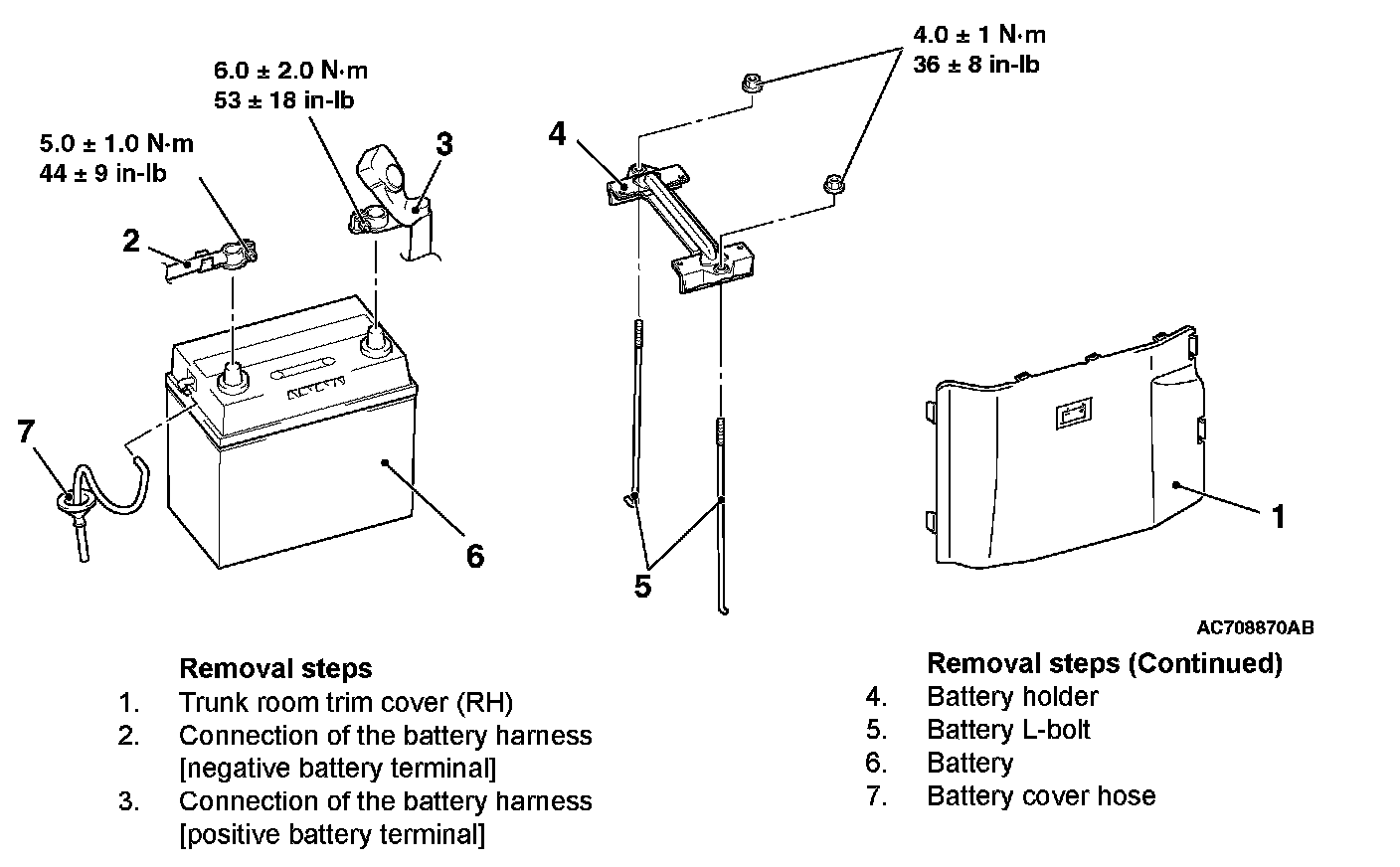

Removal Steps 1-7:
