Pressure Plate

Updated by TSB-09-21-001

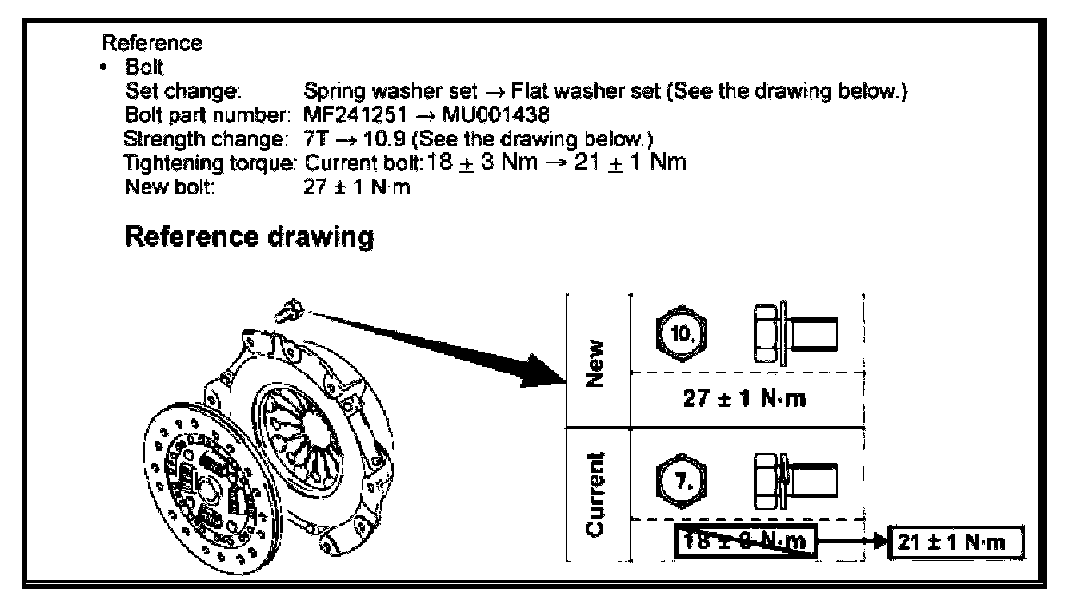

Pressure Plate Bolts - Updated By TSB-09-21-001:






Note: tighten bolts in the diagonal order
