Loose Panel

LOOSE PANEL

REMOVAL AND INSTALLATION

CAUTION:
- Disconnect the battery (-) terminal and wait for 60 seconds or more before starting work. Insulate the disconnected (-) terminal by wrapping the tape. (Refer to SRS - Service precautions)
- Handle the front impact sensor with sufficient caution, and do not drop the sensor or allow contact with water, oil, or others. If a dent, crack, deformation, and others are discovered, replace it with a new one.

Removal Steps 1-5:

REMOVAL SERVICE POINT

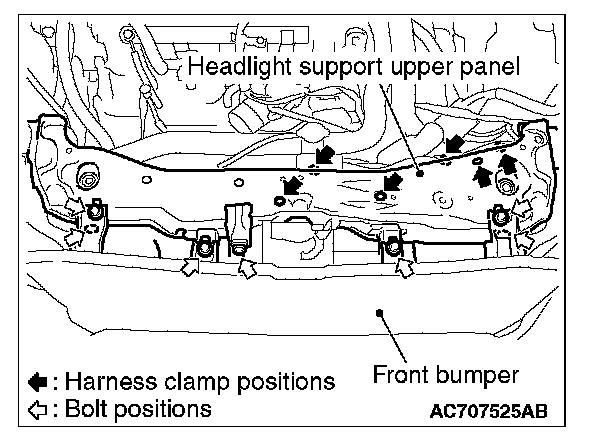

]]A[[ HEADLIGHT SUPPORT UPPER PANEL REMOVAL






Remove the harness clamps and bolts shown in the illustration, and then remove the headlight support upper panel.

INSTALLATION SERVICE POINT

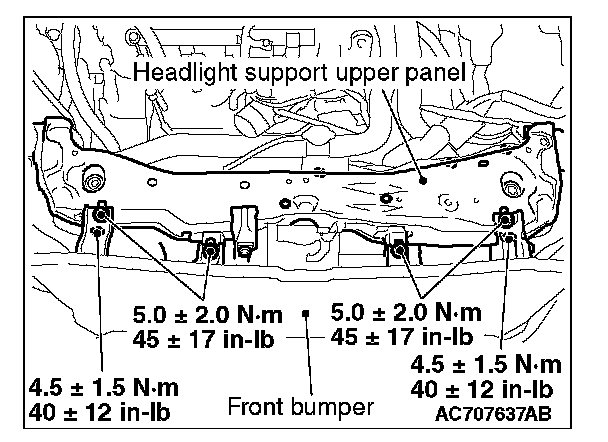

[[A]] HEADLIGHT SUPPORT UPPER PANEL INSTALLATION






After installing the headlight support upper panel, tighten the bolts shown in the illustration to the specified torques.

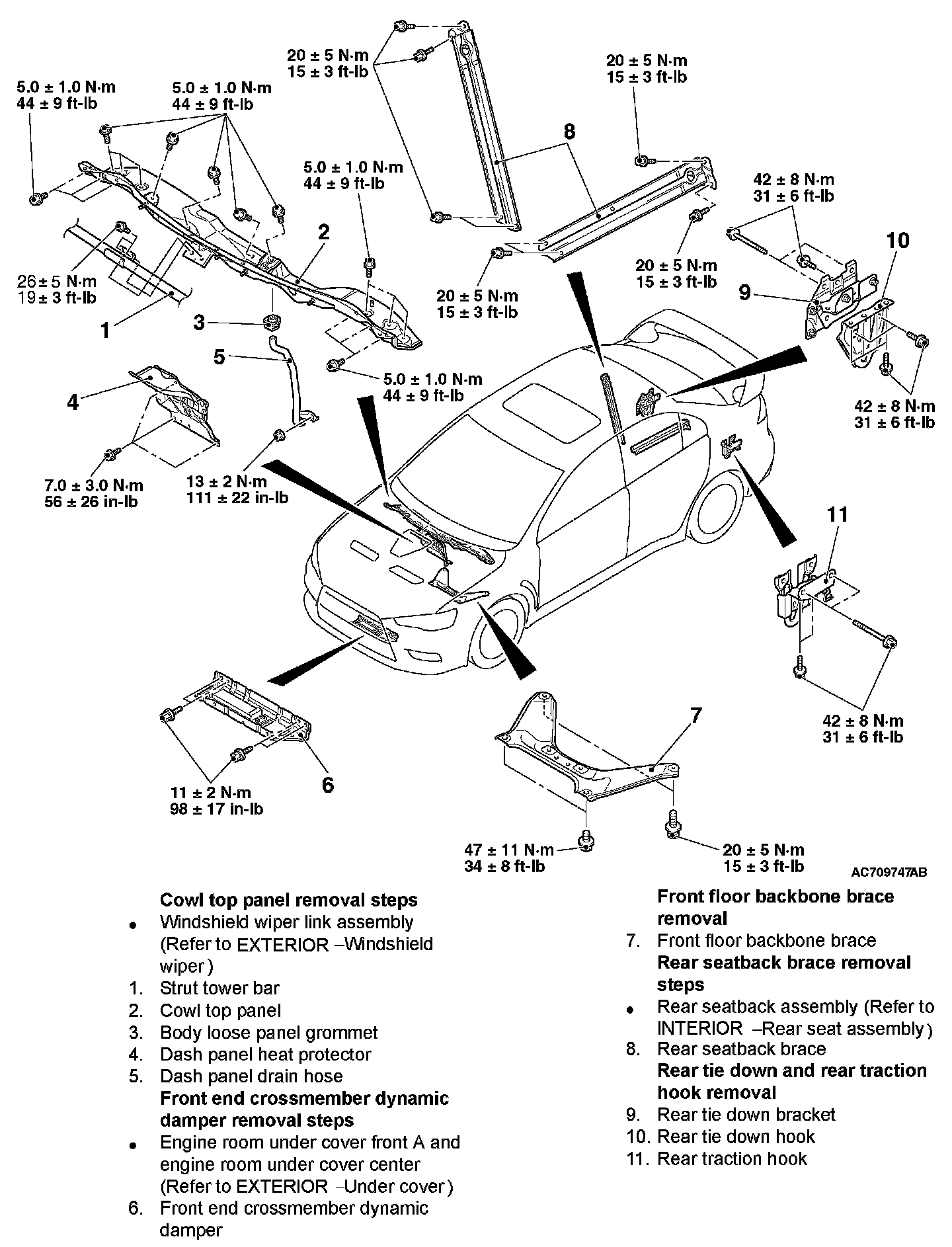

Removal Steps 1-11:
