Coolant



TYPE
Long life antifreeze coolant or an equivalent





SELECTION OF COOLANT

COOLANT

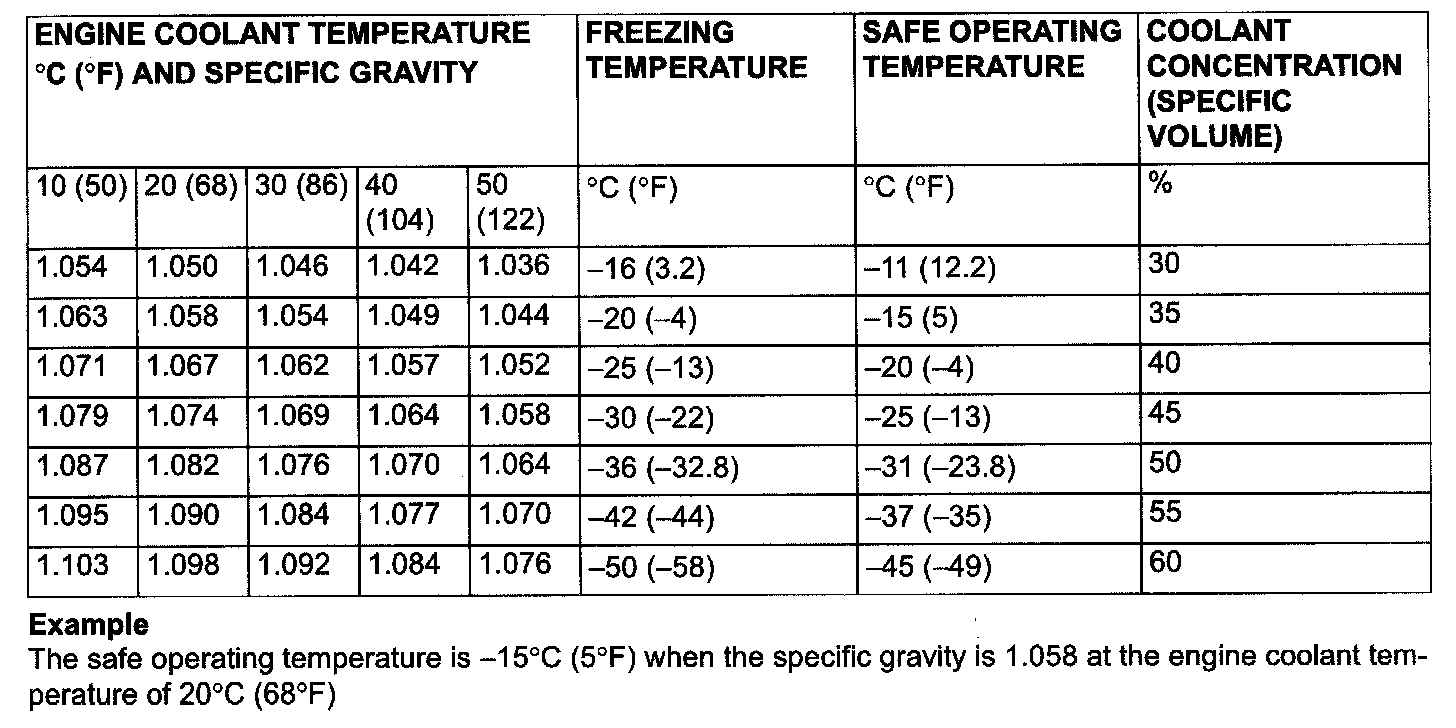

Relationship between Coolant Concentration and Specific Gravity

CAUTION:
- If the concentration of the coolant is below 30%, the anti-corrosion property will be adversely affected. In addition, if the concentration is above 60%, both the antifreeze and engine cooling properties will decrease, affecting the engine adversely. For these reasons, be sure to maintain the concentration level within the specified range.
- Do not use a mixture of different brands of antifreeze.
