Seat Belt Systems: Testing and Inspection

INSPECTION

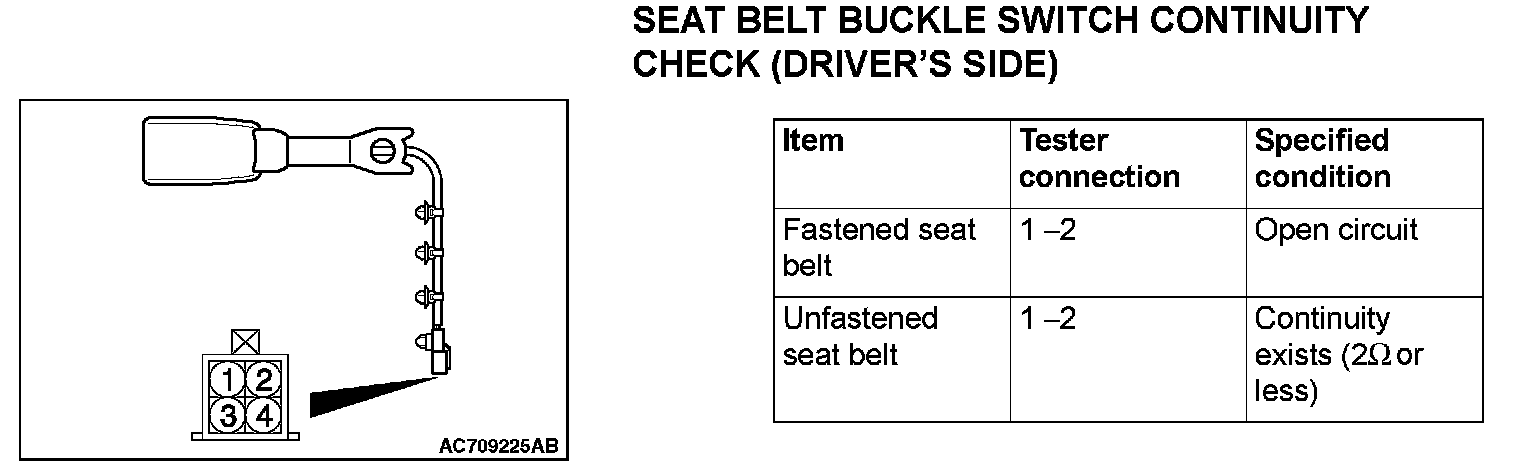

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK (DRIVER'S SIDE)

Seat Belt Buckle Switch Continuity Check (Driver's Side):

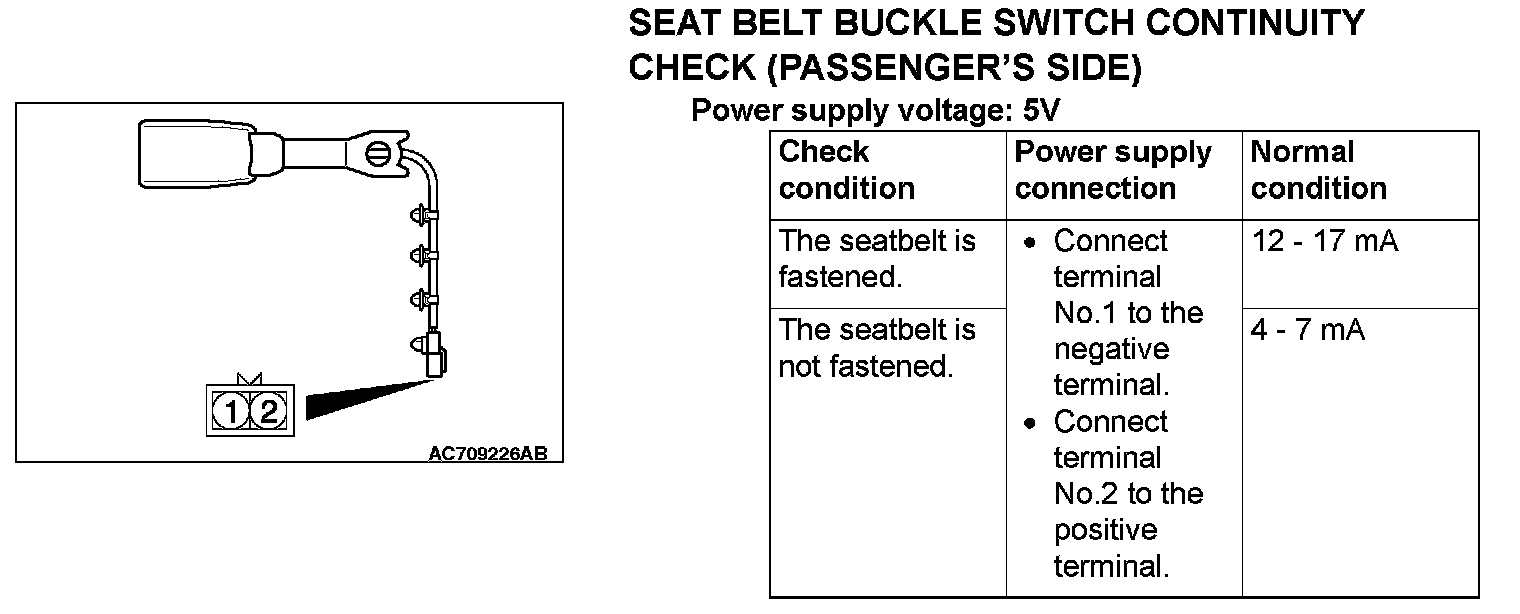

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK (PASSENGER'S SIDE)

Seat Belt Buckle Switch Continuity Check (Passenger's Side):
