Front Seat Belt

FRONT SEAT BELT

REMOVAL AND INSTALLATION

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS - SRS Service Precautions and Seat Belt with Pre-tensioner.

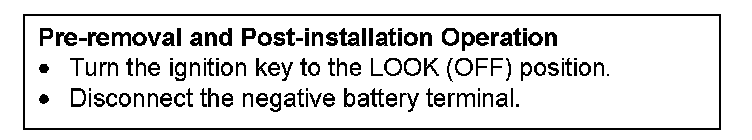

Pre-removal & Post-installation Operation:

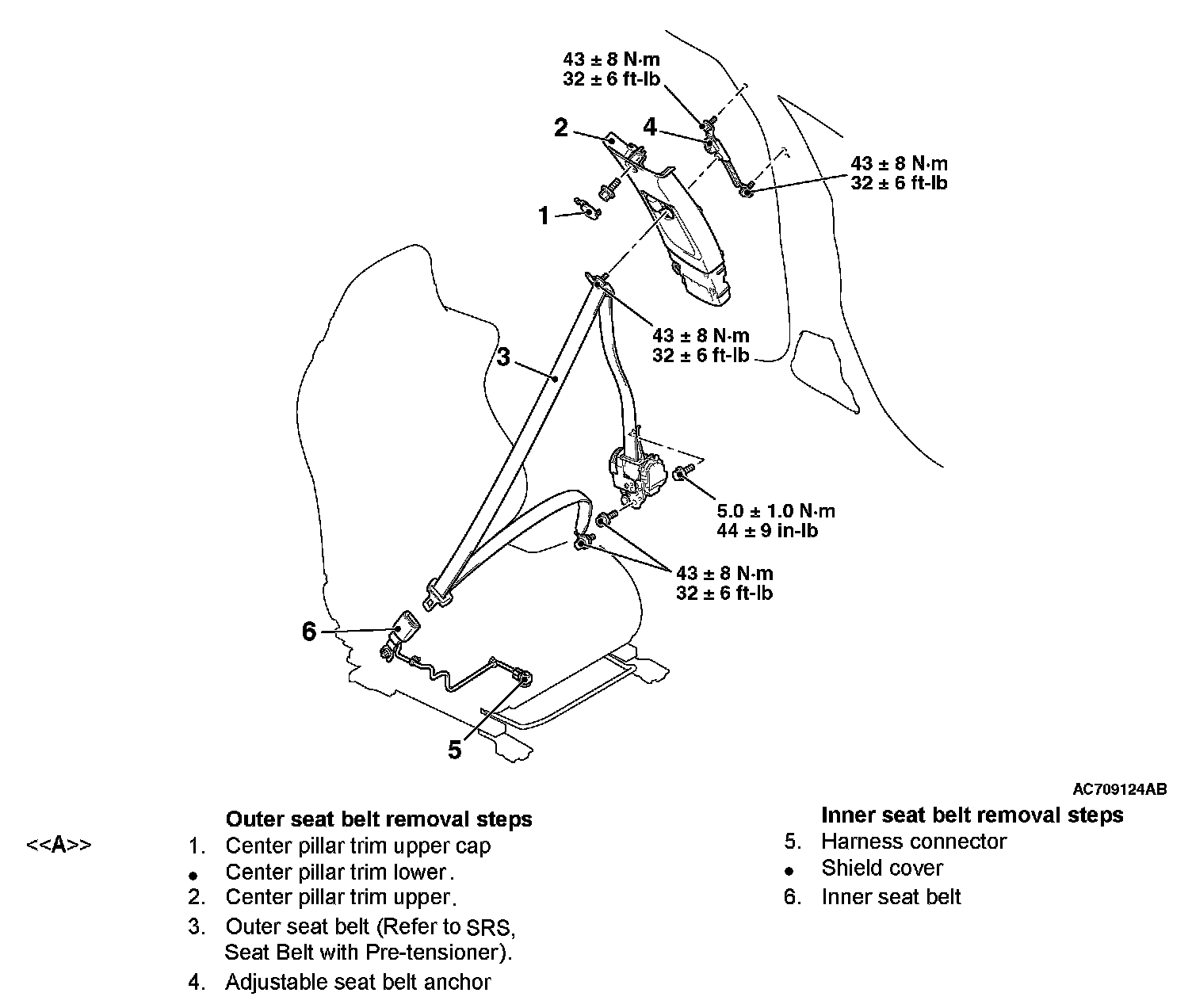

Removal Steps 1-6:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

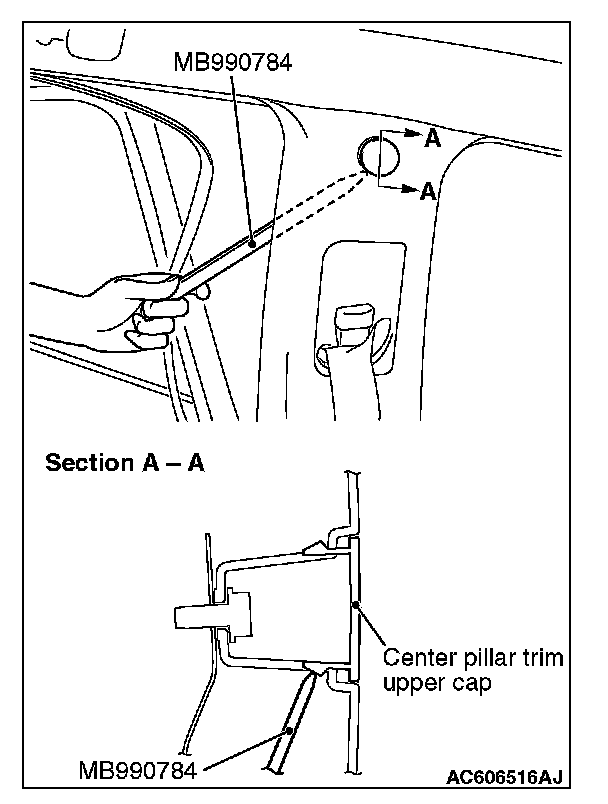

]]A[[ CENTER PILLAR TRIM UPPER CAP REMOVAL






Remove the opening trim. Remove the center pillar trim upper cap by inserting the special tool MB990784 between the center pillar trim upper and body as shown in the illustration.
