SRS Air Bag Special Connector

SRS AIR BAG SPECIAL CONNECTOR

SRS Air Bag Special Connector:

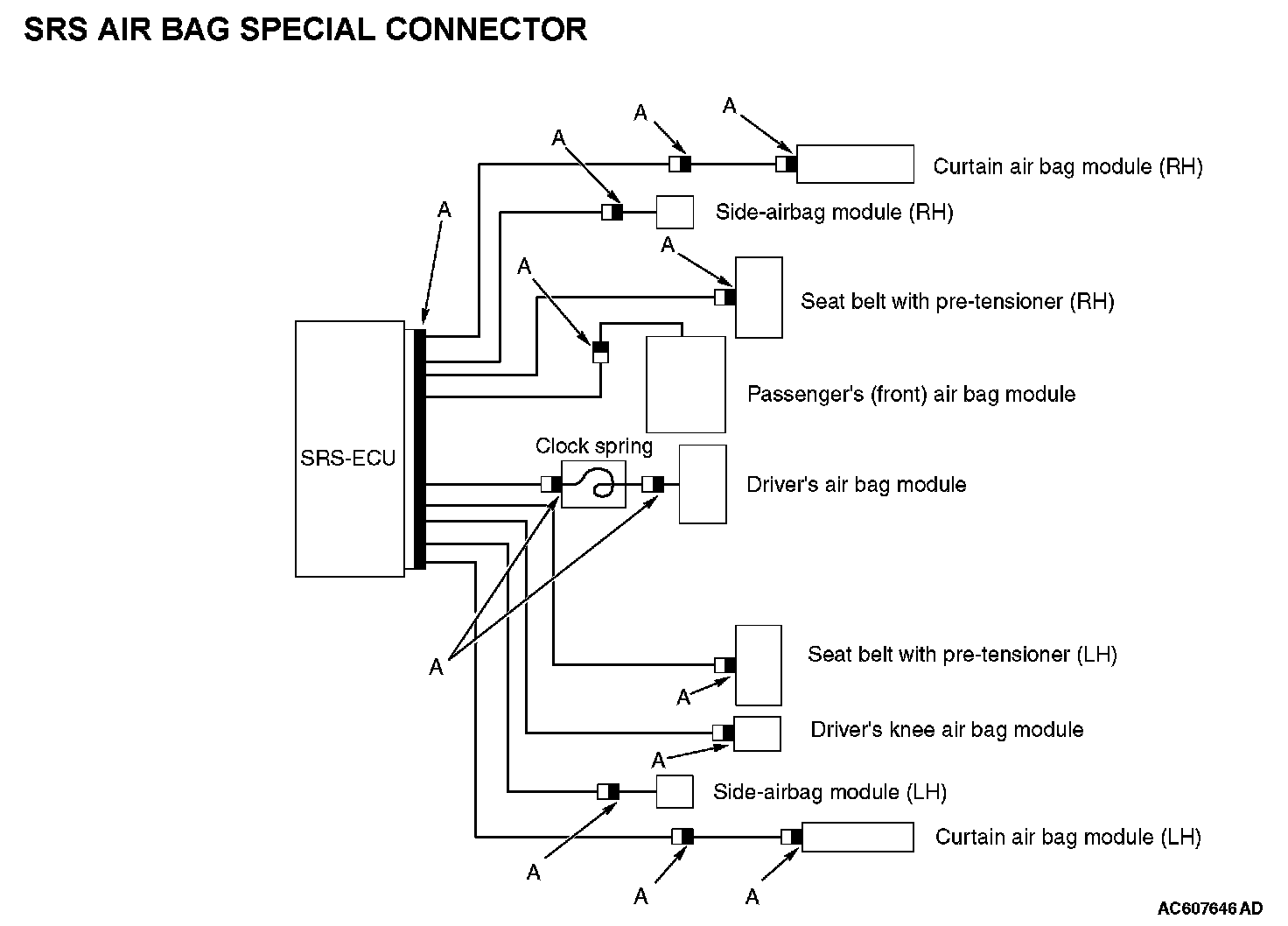

To enhance the system reliability, a connector short circuiting mechanism is integrated in the SRS-ECU connector, air bag module connectors, clock spring connector, pre-tensioner connectors, and intermediate connector between curtain air bag module and SRS-ECU (black connector "A" shown in the figure).
